TE Connectivity 2-1419108-8

B00KSO6HRS

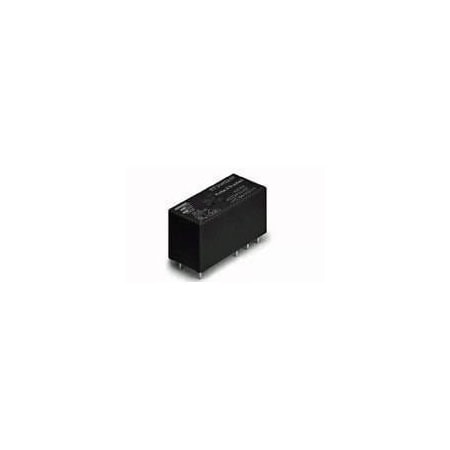

TE Connectivity Part Number 2-1419108-8

TE Connectivity Part Number 2-1419108-8zoom

Attributes

Key Value
Alternate Mfr Part Numb.2-1419108-8
Base Product NumberRTD14
CategoryRelays
Coil Current80.6 mA
Coil InsulationClass F
Coil Magnetic SystemMonostable, DC
Coil Power Rating Class400 ? 500
Coil Power Rating DC403
Coil Resistance62 Ohms, 62
Coil Special FeaturesUL Coil Insulation Clas.
Coil TypeNon Latching
Coil Voltage5 VDC, 5VDC
Coil Voltage Rating5
Contact Arrangement1 Form C (CO)
Contact Current Class10 ? 20, 16
Contact Current Rating16 A
Contact Current Rating .16
Contact FormSPDT (1 Form C), SPDT
Contact Limiting Breaki.16
Contact MaterialAgNi90/10, Silver Nicke.
Contact Number of Poles1
Contact Rating (Current)16 A
Contact Switching Volta.400
Contact Voltage Rating250, 300 VAC
Control Voltage5
Country of Origin (subj.China
Current Rating16 A
DescriptionRELAY GEN PURPOSE SPDT .
Detailed DescriptionGeneral Purpose Relay S.
Digi-Key Part NumberPB291-ND
Environmental Category .RTIII
Features-
FunctionGeneral Purpose
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.RTD14005F
Manufacturer Standard L.90 Weeks
MfrTE Connectivity Potter .
Mounting TypeThrough Hole
Must Operate Voltage3.5 VDC
Must Release Voltage0.5 VDC
Operate Time8 ms
Operating Temperature-40?C ~ 85?C
PackageBox
Packaging MethodCarton, Tube
Power Relay TypeStandard
Primary TypePower Relays
Product HeaderRT Series Miniature DC .
Product Height15.7?mm?[?.618?in?]
Product Length29?mm?[?1.142?in?]
Product StatusActive
Product Width12.7?mm?[?.5?in?]
Relay Mounting TypePrinted Circuit Board, .
Relay TypeElectromechanical, Gene.
Release Time6 ms
Seal RatingSealed - Fully
SeriesRT1 Series, RT1
StandardscULus, CSA, VDE, RoHS
Switching Voltage400VAC - Max
Terminal TypePCB-THT, Plug-In
TerminationPCB
Termination StylePC Pin
Voltage Rating380 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark36K76034.68200010POTTER&BRUMFIELD - TE CONNECTIVITY4.68 @ 2000
thumbzoomZoroG0010266315.3210Te Connectivity5.3 @ 10
RS Delivers783-08055.424110TE Connectivity5.424 @ 10
Onlinecomponents.comRTD14005F5.7856640TE Connectivity5.78 @ 10
us.rs-online.com701993756.16136TE Connectivity6.16 @ 10
thumbzoomDigi-Key2545086.2172110TE Connectivity Potter & Brumfield Relays6.2172 @ 10
TE Connectivity2-1419108-86.37946110TE Connectivity (TE)6.37946 @ 10
AmazonSCB00LQPXPA0358.93110TE CONNECTIVITY %2F POTTER %26 BRUMFIELD358.93 @ 10
