TE Connectivity 1318986-2

B00LLP98R4

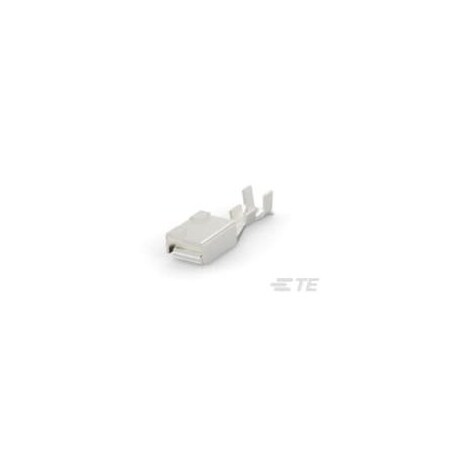

TE Connectivity Part Number 1318986-2

TE Connectivity Part Number 1318986-2zoom

Attributes

Key Value
Accepts Wire Insulation.1.8 ? 3.23?mm?[?.071 ? .
Barrel TypeOpen Barrel
Base Product Number1318986
CategoryConnectors, Interconnec.
Connection MaterialCopper Alloy
Connector & Contact Ter.Wire & Cable
Connector SystemWire-to-Wire
Connector Terminates ToWire & Cable
Contact Base MaterialCopper Alloy
Contact ClassificationPower
Contact FinishGold Plated, Gold
Contact Finish Thickness15.0?in (0.38?m)
Contact Mating Area Pla.Gold
Contact Mating Area Pla..38??m?[?15??in?]
Contact Plating Thickne.0.38 ?m
Contact RetentionWith
Contact Retention TypeLocking Lance
Contact TerminationCrimp
Contact TypeSocket
Contact Underplating Ma.Nickel
DescriptionCONN RCPT 16-20AWG CRIM.
Detailed DescriptionSocket Contact Gold 16-.
Digi-Key Part NumberA29331-ND
For Use WithTab Contact
Glow Wire RatingStandard Part - Not Glo.
ItemContact
Length23.4 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1318986-2
Max. Insulation Dia.0.127 in
Max. Single Wire Size16 AWG
Max. Temp.105?C
Max. Voltage630V AC/DC
MfrTE Connectivity AMP Con.
Min. Single Wire Size20 AWG
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage630
Overall Length?:.23.4?mm?[?.921?in?]
PackageBulk
Package Quantity1
Packaging MethodBox & Tray, Tray
Packaging Quantity500
Pin or SocketSocket
Product StatusActive
Product TypeContact
SeriesDynamic D-5
Terminal TypeCrimp
Termination Method to W.Crimp
Type-
Underplate Material Thi.1.3??m?[?51.18??in?]
Wire Gauge16-20 AWG
Wire Range MarkSS
Wire TypeDiscrete; Stranded
Wire/Cable Size.5 ? 1.42 mm?, 20 ? 16 .
Wire/Cable TypeDiscrete Wire, Stranded

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1318986-21.234523048TE CONNECTIVITY/AMP BRAND1.23 @ 45
Newark97X13291.434500069AMP - TE CONNECTIVITY1.43 @ 45000
thumbzoomZoroG3057858211.894569Te Connectivity1.89 @ 45
thumbzoomDigi-Key6595291.906666666674523418TE Connectivity AMP Connectors1.90666666667 @ 45
