- mpnEC2002
- brandname: US Motors
- manufacturername: US Motors

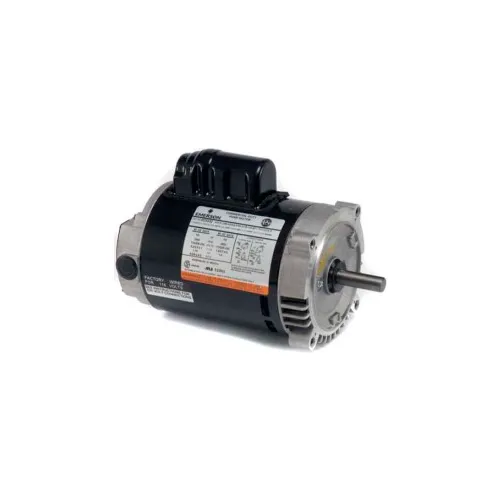

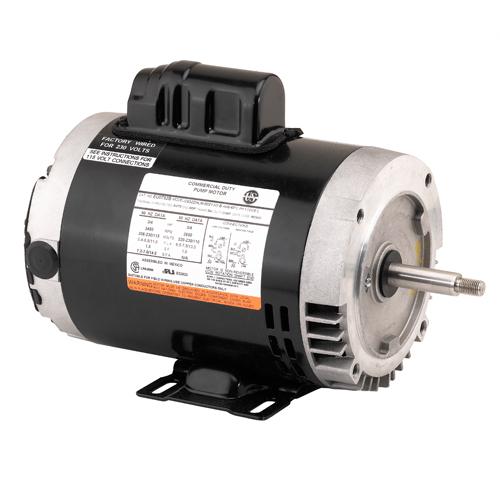

U.S. Motors US Motors Pump, 2 HP, 1-Phase, 3450 RPM Motor, EC2002
- Brand: U.S. Motors
- PartNumber: EC2002
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 19.6/10.7-9.8 |
| Bearings | Ball |
| Body Dia. | 5.9 in |
| Capacitor | 30MFD/370VAC |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| FL Amps | 19.6/10.7-9.8 |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 19.6/10.7-9.8 |
| Full Load Amps @ 50Hz | 19.6/10.7-9.8 A |
| Gross Weight | 33 lbs |
| Height | 8 1/2 in |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| HP @ 50Hz | 2 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Motor |
| Item Number | EC2002 |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 10 5/16 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CLR1399013J |
| Manufacturer Part Number | EC2002 |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | 22.2/12.2-11.1 A |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CLR1399013J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Blank |
| Motor Thermal Protection | Auto |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| Nameplate RPM | 3,450/2,850 |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 84.1 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 12 3/8 in |
| Overload Protection | Automatic |
| Part Number | EC2002 |
| Phase | 1, Single |
| Product Type | General Purpose, Capaci. |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | 3,450/2,850 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.25 |
| Service Factor @ 50Hz | 1.2 |
| Shaft Dia. | 5/8 in |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
| Voltage @ 50Hz | 110/220, 115/208-230 |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 208, 230 |
| Weight | 33 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1933299 | 330.0 | 1 | In Stock | | U.S. Motors | 33.0 | 330.0 @ 1 |
 | bscsource.com | EC2002 | 470.79 | 1 | In Stock | | US Motors | | 470.79 @ 1 |
 | Guardian | 87958849 | 505.35 | 1 | In Stock | | US Motors | | 505.35 @ 1 |
 | Global Industrial | WBB465289 | 542.0 | 1 | In Stock | 17 | US Motors | | 542.0 @ 1 |
 | emotorpro.com | EC2002 | 587.49 | 1 | In Stock | | U.S. Motors | 32.0 | 587.49 @ 1 |
 | motorsandcontrol.com | EC2002 | 598.98 | 1 | In Stock | | US Motors (Nidec) | 35.2 | 598.98 @ 1 |
 | National Supply Network | B465289 | 606.19 | 1 | In Stock | | US MOTORS | | 606.19 @ 1 |
 | Galco | EC2002-USM | 613.25 | 1 | In Stock | | US Motors | 33.0 | 613.25 @ 1 |
| motionindustries.com | 02898666 | 901.94 | 1 | In Stock | | US Motors (Nidec) | | 901.94 @ 1 |
