- mpnEU2002
- brandname: US Motors
- manufacturername: US Motors

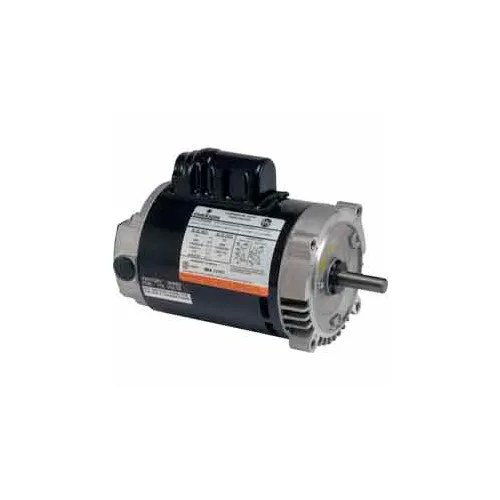

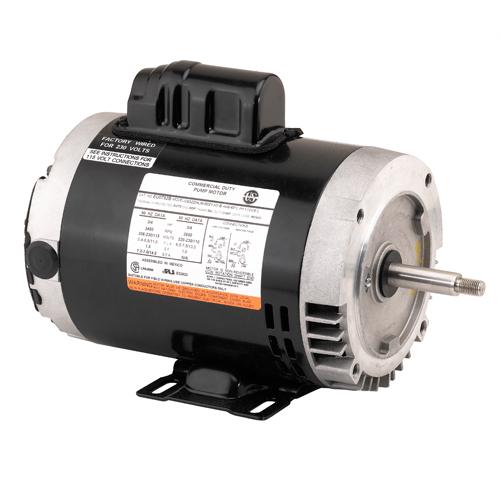

U.S. Motors US Motors Pump, 2 HP, 1-Phase, 3450 RPM Motor, EU2002
- Brand: US Motors
- PartNumber: EU2002
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 19.6/10.7-9.8 |
| Bearings | Ball |
| Bolt Circle Dia. | 3/8 in |
| Capacitor | 30MFD/370VAC |
| Catalog Page | N/A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Construction | Rolled Steel |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 35.20 |
| FL Amps | 19.6/10.7-9.8 |
| Frame | 56J |
| Full Load Amps | 19.6/10.7-9.8 |
| Gross Weight | 33.2 lbs |
| Height | 8-1/2 in, 8 1/2 in |
| Hertz | 50, 60 |
| HP | 2 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Special Application Com. |
| Item? | 56JA13 |
| Manufacturer | US Motors (Nidec) |
| Manufacturer Model # | T063CMJ1413013J |
| Max. Ambient Temp. | 104 Degrees F, 104 ?F |
| Max. SF Amps | 22.2/12.2-11.1 A |
| Maximum Ambient Tempera. | 40? C |
| Mfr. Model? | EU2002 |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | Special Application Com. |
| Motor Thermal Protection | Auto |
| Mounting | Footless, Face |
| Nameplate RPM | 3,450 |
| No. of Speeds | 1 |
| Nominal Efficiency | 84.1 % |
| Number of Speeds | 1 |
| Overall Length | 12-7/8 in, 12 7/8 in |
| Part Number | EU2002 |
| Phase | 1, Single |
| Product Type | Pump, Capacitor Start |
| Rotation | CCW Shaft End |
| RPM | 3450 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8 in |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| UNSPSC | 26101611 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 208, 230 |
| Weight | 33.2 lb |
