- mpnEU2002B
- brandname: US Motors
- manufacturername: US Motors

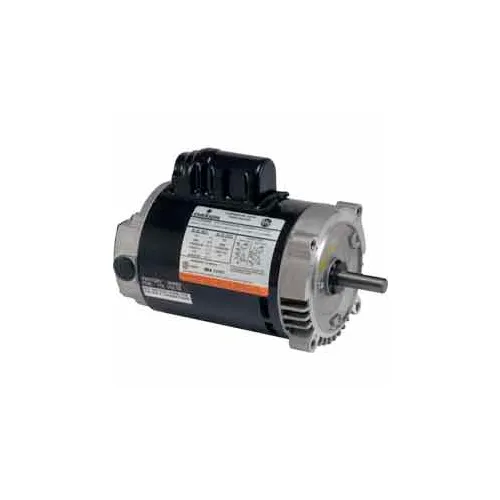

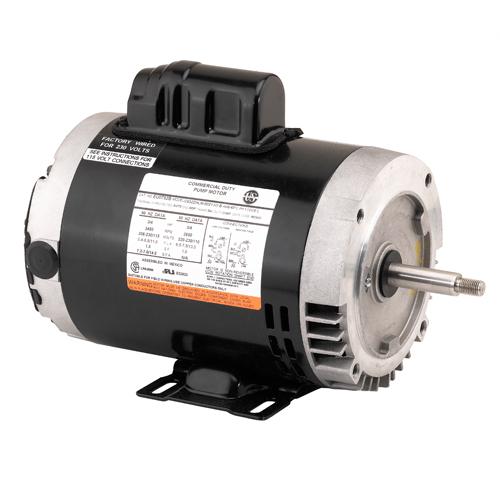

U.S. Motors US Motors Pump, 2 HP, 1-Phase, 3450 RPM Motor, EU2002B
- Brand: US Motors
- PartNumber: EU2002B
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 19.6/10.7-9.8 |
| Bearings | Ball |
| Bolt Circle Dia. | 3/8 in |
| Capacitor | 30MFD/370VAC |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 36.30 |
| Family Series | US Motors Motors |
| FL Amps | 19.6/10.7-9.8 |
| Frame | 56J |
| Frequency | 60 Hz |
| Full Load Amps | 19.6/10.7-9.8 |
| Gross Weight | 34.6 lbs |
| Height | 8 1/2 in |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Special Application Com. |
| Item Number | EU2002B |
| Kilowatts | 1.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CMP1418013J |
| Manufacturer Part Number | EU2002B |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | 22.2/12.2-11.1 A |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CMP1418013J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Removable Base |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | J-Face, Removable Base |
| Nameplate RPM | 3,450 |
| NEMA Frame | 56J |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 84.1 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 12 7/8 in |
| Overload Protection | Automatic |
| Part Number | EU2002B |
| Phase | 1, Single |
| Product Type | Capacitor Start, Capaci. |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| RPM Range | 3,001-3,600 |
| Shaft Dia. | 5/8 in |
| Ship Weight | 33 lbs. |
| Speed (RPM) | 3450 |
| Thermal Protection | Automatic |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115/208-230 |
| Weight | 34.6 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1929710 | 385.0 | 1 | In Stock | | U.S. Motors | 34.6 | 385.0 @ 1 |
 | Global Industrial | WBB465383 | 538.0 | 1 | In Stock | 17 | US Motors | | 538.0 @ 1 |
 | Guardian | 87959128 | 562.1 | 1 | In Stock | | US Motors | | 562.1 @ 1 |
 | bscsource.com | EU2002B | 569.99 | 1 | In Stock | | US Motors | | 569.99 @ 1 |
 | emotorpro.com | EU2002B | 595.09 | 1 | In Stock | | U.S. Motors | 33.0 | 595.09 @ 1 |
 | National Supply Network | B465383 | 595.19 | 1 | In Stock | | US MOTORS | | 595.19 @ 1 |
 | motorsandcontrol.com | EU2002B | 606.73 | 1 | In Stock | | US Motors (Nidec) | 36.3 | 606.73 @ 1 |
 | Galco | EU2002B-USM | 621.18 | 1 | In Stock | | US Motors | 34.6 | 621.18 @ 1 |
| motionindustries.com | 02898682 | 913.62 | 1 | In Stock | | US Motors (Nidec) | | 913.62 @ 1 |
