- mpnJS0752-2V
- brandname: US Motors
- manufacturername: US Motors

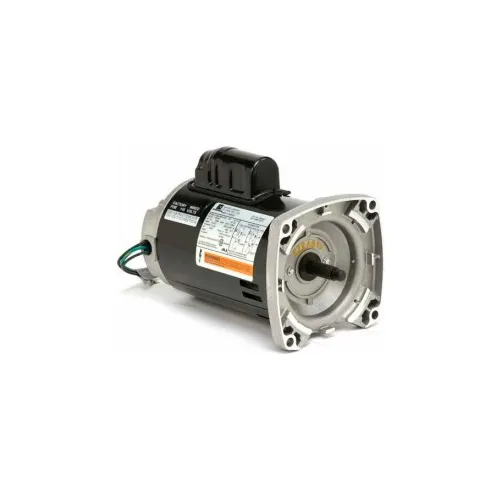

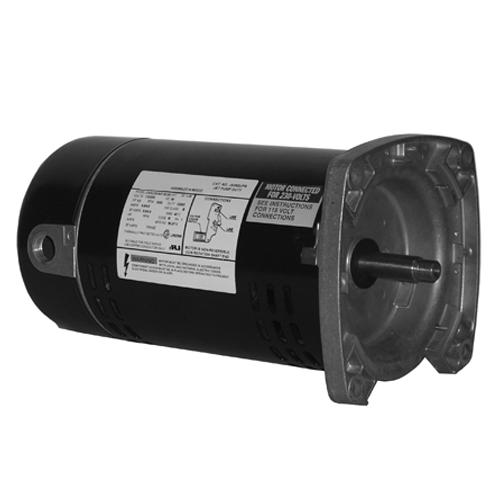

US Motors JS0752-2V
- PartNumber: JS0752-2V
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 5.8/11.6 |
| Bearing Type | Ball |
| Bearings | Ball |
| Bolt Circle Dia. | 7/16 in |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Square Flange |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 20.90 |
| Family Series | US Motors Motors |
| FL Amps | 5.8/11.6 |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 11.6/5.8 |
| Gross Weight | 20.18 lbs |
| Hertz | 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| Inverter Rated | No |
| Item | Water System Pump Motors |
| Item Number | JS0752-2V |
| Kilowatts | 0.6 kW |
| Length Less Shaft | 12 1/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C055KTY5131013J |
| Manufacturer Part Number | JS0752-2V |
| Max. Ambient Temp. | 104 Degrees F |
| Max. SF Amps | 7.4/14.8 A |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C055KTY5131013J |
| Motor Application | Water Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Flange |
| Motor Service Factor | 1.7 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| Mounting | Flange, Footless |
| Mounting Type | Square Flange |
| Nameplate RPM | 3,450 |
| NEMA Design | 56J |
| NEMA Frame | 48Y |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 72 % |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 12 15/16 in |
| Overload Protection | Automatic |
| Part Number | JS0752-2V |
| Phase | 1, Single |
| Product Type | General Purpose, Capaci. |
| Rotation | CCW Shaft End |
| RPM | 3,450 RPM, 3450 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.65 |
| Shaft Dia. | 5/8 in |
| Shaft Material | Stainless Steel |
| Ship Weight | 19 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Listed |
| Thermal Protection | Automatic |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 110-120V, 230V, 115/230. |
| Voltage (AC) | 115 VAC, 230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 230 |
| Weight | 20.2 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1930079 | 164.0 | 1 | In Stock | | U.S. Motors | 20.2 | 164.0 @ 1 |
 | Global Industrial | WBB465385 | 260.95 | 1 | In Stock | 17 | US Motors | | 260.95 @ 1 |
 | motorsandcontrol.com | JS0752-2V | 274.86 | 1 | In Stock | | US Motors (Nidec) | 20.9 | 274.86 @ 1 |
 | Galco | JS0752-2V-USM | 282.11 | 1 | In Stock | | US Motors | 20.18 | 282.11 @ 1 |
 | National Supply Network | B465385 | 295.94 | 1 | In Stock | | US MOTORS | | 295.94 @ 1 |
 | emotorpro.com | JS0752-2V | 299.15 | 1 | In Stock | | U.S. Motors | 19.0 | 299.15 @ 1 |
| motionindustries.com | 04385189 | 360.21 | 1 | In Stock | | US Motors (Nidec) | | 360.21 @ 1 |
