- mpnUN34V3BC
- brandname: US Motors
- manufacturername: US Motors

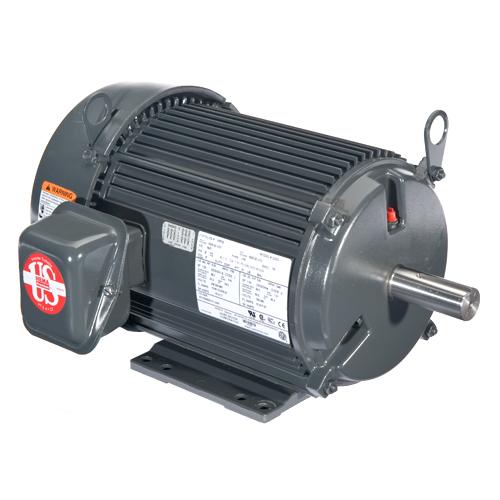

U.S. Motors US Motors Inverter Duty, 3/4 HP, 3-Phase, 1140 RPM Motor, UN34V3BC
- Brand: US Motors
- PartNumber: UN34V3BC
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 3.1-3.0/1.5 |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 35.20 |
| Family Series | US Motors Motors |
| FL Amps | 3.1-3.0/1.5 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 32 lbs |
| Hertz | 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item | Motor,3PH,3/4HP,1200,20. |
| Item Number | UN34V3BC |
| Kilowatts | 0.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | J063BGW01440R5B |
| Manufacturer Part Number | UN34V3BC |
| Maximum Ambient Tempera. | 40? C |
| Model Number | J063BGW01440R5B |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Base, Face |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | UN34V3BC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1140, 1,140 RPM |
| Service Factor | 1.15 |
| Ship Weight | 32 lbs. |
| Speed (RPM) | 1140 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0404203 | 379.0 | 1 | In Stock | | U.S. Motors | 32.0 | 379.0 @ 1 |
 | Global Industrial | WBB465391 | 399.95 | 1 | In Stock | 17 | US Motors | | 399.95 @ 1 |
 | emotorpro.com | UN34V3BC | 432.6 | 1 | In Stock | | U.S. Motors | 32.0 | 432.6 @ 1 |
 | National Supply Network | B465391 | 449.94 | 1 | In Stock | | US MOTORS | | 449.94 @ 1 |
 | Galco | UN34V3BC-USM | 455.49 | 1 | In Stock | | US Motors | 32.0 | 455.49 @ 1 |
 | motorsandcontrol.com | UN34V3BC | 455.49 | 1 | In Stock | | US Motors (Nidec) | 35.2 | 455.49 @ 1 |
| motionindustries.com | 02899443 | 964.32 | 1 | In Stock | | US Motors (Nidec) | | 964.32 @ 1 |
