- mpnUN3T3BC
- brandname: US Motors
- manufacturername: US Motors

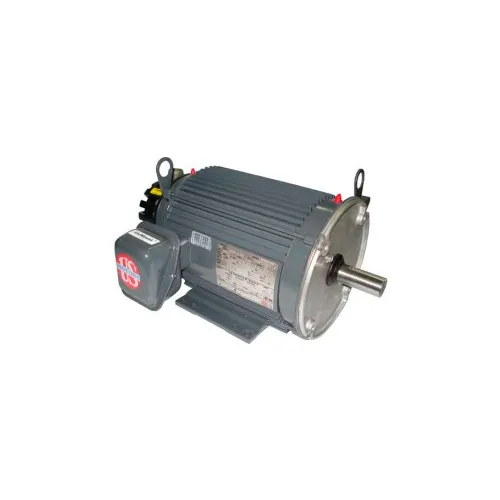

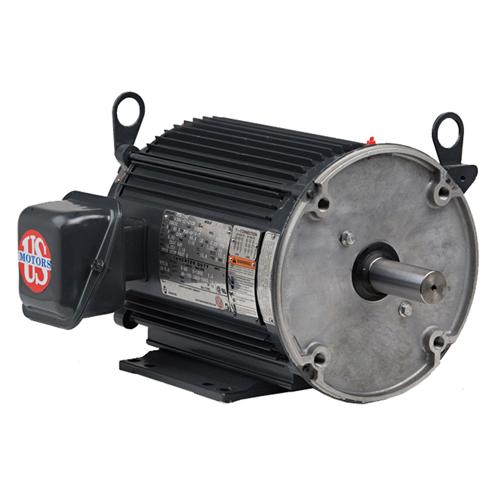

U.S. Motors US Motors ACCU-Torq Vector Duty, 3 HP, 3-Phase, 1180 RPM Motor, UN3T3BC
- Brand: U.S. Motors
- PartNumber: UN3T3BC
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 9.1/4.5 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 89.5% |
| Enclosure | Totally Enclosed Non-Ve. |
| Enclosure Type | TENV (Totally Enclosed . |
| Estimated Weight | 127.16 |
| Family Series | US Motors Motors |
| FL Amps | 9.1/4.5 |
| FL Efficiency | 89.5 |
| Frame | 213TC |
| Frequency | 60 Hz |
| Gross Weight | 115.6 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,3HP,1200,230/. |
| Item Number | UN3T3BC |
| Kilowatts | 2.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | BV10 |
| Manufacturer Part Number | UN3T3BC |
| Maximum Ambient Tempera. | 40? C |
| Model Number | BV10 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| NEMA Frame | 213TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Part Number | UN3T3BC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,180 RPM, 1180 |
| Service Factor | 1.00 |
| Ship Weight | 116 lbs. |
| Speed (RPM) | 1180 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467597 | 962.0 | 1 | In Stock | 17 | US Motors | | 962.0 @ 1 |
 | emotorpro.com | UN3T3BC | 1044.64 | 1 | In Stock | | U.S. Motors | 116.0 | 1044.64 @ 1 |
 | Zoro | G0404894 | 1056.0 | 1 | In Stock | | U.S. Motors | 116.0 | 1056.0 @ 1 |
 | National Supply Network | B467597 | 1065.99 | 1 | In Stock | | US MOTORS | | 1065.99 @ 1 |
 | Galco | UN3T3BC-USM | 1099.92 | 1 | In Stock | | US Motors | 115.6 | 1099.92 @ 1 |
 | motorsandcontrol.com | UN3T3BC | 1099.92 | 1 | In Stock | | US Motors (Nidec) | 127.16 | 1099.92 @ 1 |
| motionindustries.com | 04385767 | 2025.22 | 1 | In Stock | | US Motors (Nidec) | | 2025.22 @ 1 |
