3M MV10-14FLK

B00KWTOG40

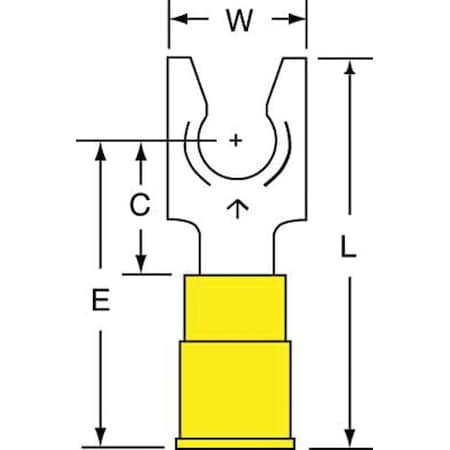

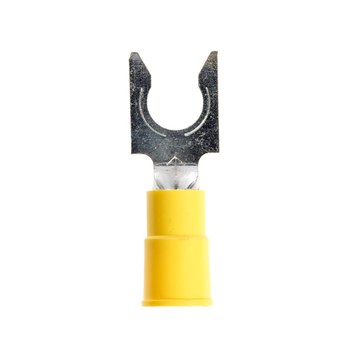

3M SCOTCHLOK LOCKING FORK, VINYL INSULATED BRAZED SEAM MV10-14FLK, STUD SIZE 1/4, SPRING-LIKE TONGUE FIRMLY FITS AROUND THE STUD

3M SCOTCHLOK LOCKING FORK, VINYL INSULATED BRAZED SEAM MV10-14FLK, STUD SIZE 1/4, SPRING-LIKE TONGUE FIRMLY FITS AROUND THE STUDzoom

Attributes

Key Value
3M NumberMV10-14FLK
Barrel Length0.25 in
Barrel Length TypeBrazed
Base Product NumberMV10
Brand3M
CategoryElectrical Insulating T.
Clearance0.44 in
ColorYellow
Connection MaterialCopper
Connection TypeCrimp
Contact FinishTin
Contact MaterialCopper, ETP
Country of OriginUSA
DescriptionCONN SPADE TERM 10-12AW.
Detailed DescriptionYellow 1/4 Stud Spade T.
Digi-Key Part NumberMV10-14FLK-ND
Fastening MechanismLocking
FeaturesBrazed Seam
Fork Width0.43 in
Inside Diameter0.135 in
InsulationInsulated
Insulation ColorYellow
Insulation Diameter0.250" (6.35mm)
Insulation Length0.99 in
Insulation MaterialVinyl
Insulation TypeVinyl
ItemFork Terminal
Length - Overall1.240" (31.50mm)
Length - Ring Center to.0.440" (11.18mm)
Length - Termination0.550" (13.97mm)
Manufacturer3M
Manufacturer Product Nu.MV10-14FLK
Manufacturer Standard L.3 Weeks
MaterialVinyl
Material - InsulationVinyl
Max. Temp.221 Degrees F
Max. Voltage600 V
Maximum Insulation Outs.0.25 in
Maximum Wire Size10 AWG
Mfr3M
Minimum Conductor Leg D.12 AWG
Minimum Wire Size12 AWG
Mounting TypeFree Hanging (In-Line)
Overall Length1.24 in
Overall Width0.43 in
PackageBulk
Package Quantity500 per case
Product StatusActive
SeamBrazed
SeriesScotchlok?
StandardsCSA Certified, UL Listed
Stud Size1/4 in
Stud/Tab Size1/4 Stud
Terminal ConnectionCrimp
Terminal TypeLocking, Spring, Snap
TerminationCrimp
Tongue Inside Opening-
Tongue Width - Wire Con.0.44 in
Trade NameScotchlok
TypeLocking Fork Terminal
UNSPSC31201502
UPC054007139720
Width - Outer Edges0.430" (10.92mm)
Wire Gauge10-12 AWG
Wire Range12 to 10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomturtle.comMMM MV10-14FLK0.6115003M0.61 @ 500
thumbzoomDigi-Key38657760.739925005003M0.73992 @ 500
thumbzoomPlatt.com03197040.7515003M0.75 @ 500
thumbzoomZoroG5614691233.9915003M1.9233.99 @ 500
thumbzoomrshughes.com054007-13972250.05005003M250.0 @ 500
thumbzoomgordonelectricsupply.comMV10-14FLK257.515004553-M257.5 @ 500
Dale-ElectricMV10-14FLK569.815003M569.8 @ 500
