3M MV10-38R/SK

B0081JW7SK

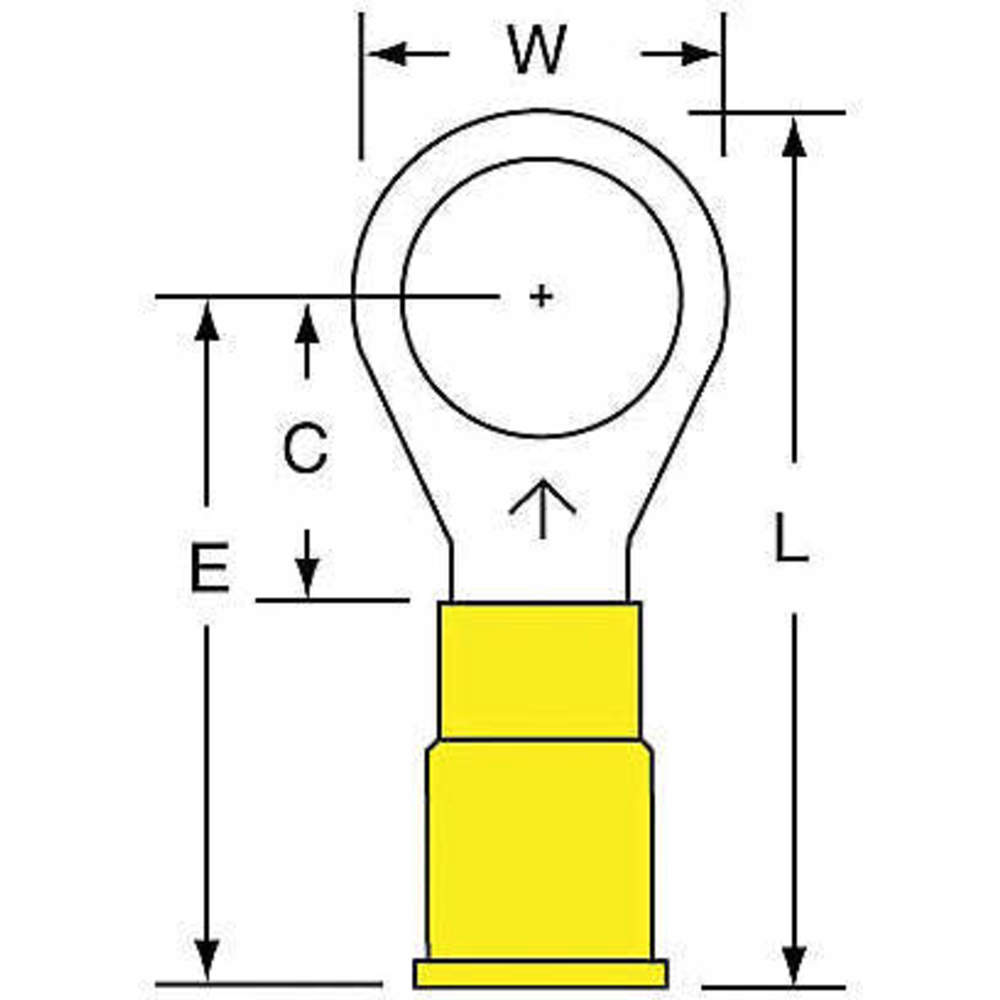

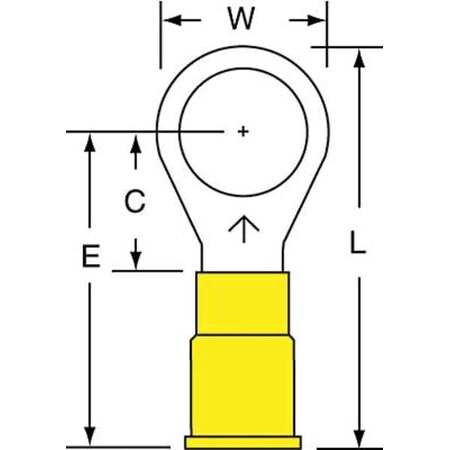

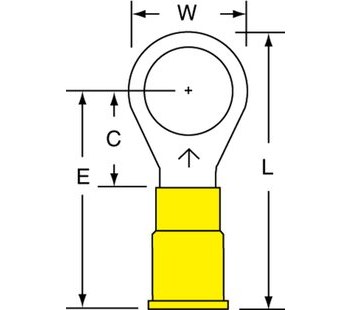

3M SCOTCHLOK RING TONGUE, VINYL INSULATED BRAZED SEAM MV10-38R/SK, STUD SIZE 3/8

3M SCOTCHLOK RING TONGUE, VINYL INSULATED BRAZED SEAM MV10-38R/SK, STUD SIZE 3/8zoom

Attributes

Key Value
3M NumberMV10-38R/SK
Base Product NumberMV10
Brand3M
CategoryElectrical Insulating T.
Clearance0.44 in
ColorYellow
Connection MaterialCopper
Connection TypeCrimp
Contact FinishTin
Contact MaterialCopper, ETP
Country of OriginUSA
FeaturesBrazed Seam
Inside Diameter0.135 in
InsulationInsulated
Insulation ColorYellow
Insulation Diameter0.250" (6.35mm)
Insulation Length0.99 in
Insulation MaterialVinyl
Insulation TypeVinyl
ItemRing Terminal
Length - Overall1.260" (32.00mm)
Manufacturer3M
MaterialVinyl
Material - InsulationVinyl
Max. Temp.221 Degrees F
Max. Voltage600 V
Maximum Voltage600 V
Mfr3M
Minimum Conductor Leg D.12 AWG
Mounting TypeFree Hanging (In-Line)
Overall Length1.26 in
Overall Width0.54 in
PackageBulk
Package Quantity500 per case
Part StatusActive
Ring Width0.54 in
SeamBrazed
SeriesScotchlok?
StandardsCSA Certified, UL Listed
Stud Size3/8 in
Stud/Tab Size3/8 Stud
Terminal ConnectionCrimp
Terminal TypeStandard, Circular
TerminationCrimp
Thickness0.040" (1.02mm)
Tongue Width - Wire Con.0.54 in
Trade NameScotchlok
TypeRing
UNSPSC31201502
UPC054007019282
Width - Outer Edges0.540" (13.72mm)
Wire Gauge10-12 AWG
Wire Range12 to 10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key38657790.455965005003M0.45596 @ 500
thumbzoomturtle.comMMM MV10-38R/SK0.4715003M0.47 @ 500
thumbzoomPlatt.com00772810.5715003M0.57 @ 500
thumbzoomrshughes.com054007-01928190.05005003M190.0 @ 500
thumbzoomgordonelectricsupply.comMV10-38R/SK196.515004553-M196.5 @ 500
thumbzoomZoroG5785595245.9915003M2.4245.99 @ 500
Dale-ElectricMV10-38R/SK434.2815003M434.28 @ 500
thumbzoomRaptor SuppliesAC2FNK494.29329315003M494.293293 @ 500
