- mpnPX041102P5560
- brandname: BULGIN COMPONENTS
- manufacturername: BULGIN COMPONENTS

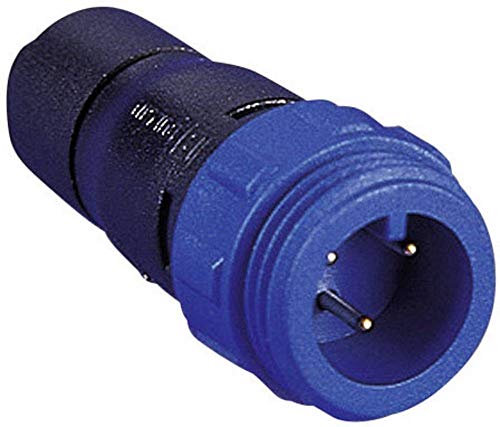

Standard Circular Connector 2 POLE IN-LINE PLUG
- Brand: Bulgin
- PartNumber: PX0411/02P/5560
- Model: PX0411/02P/5560
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: BULGIN
- Label: BULGIN
Attributes
| Key | Value |
|---|
| Agency Approvals | UL Recognized ; CSA ; V. |
| Alternate Part No. | 177-PX0411/02P |
| Angle | Straight |
| Brand | Bulgin |
| Cable Diameter | 5.5-6 mm |
| Color | Blue |
| Connector Type | Receptacle Housing |
| Contact Gender | Pin (Male) |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Size | - |
| Contact Type | Pin, Crimp and Solder C. |
| Current Rating | 8 A |
| Family Name | Buccaneer 400 Family |
| Fastening Type | Threaded |
| Features | Backshell, UV Resistant |
| Gender | Cable Plug |
| Housing Color | Black, Blue |
| Housing Material | Polyamide |
| Housing Type | Plastic |
| Includes | 6 pcs - 1 Connector, 1 . |
| Ingress Protection | IP 68, IP68 - Dust Tigh. |
| Insert Material | - |
| IP Rating | IP68 ; IP69K |
| Manufacturer | Bulgin |
| Manufacturer Part No. | PX0411/02P/5560 |
| Material Flammability R. | UL94 V-0 |
| Mating Type | Threaded |
| Mfr | Bulgin |
| Mounting Feature | - |
| Mounting Style | Free Hanging |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Contacts | 2 |
| Number of Positions | 2, 2 (Power) |
| Operating Temperature | -40?C ~ 80?C |
| Orientation | Keyed |
| Part Status | Active |
| Primary Type | Sealed |
| Product Category | Standard Circular Conne. |
| Product Type | Connectors |
| Series | PX0411 Series, Buccanee. |
| Shell Finish | - |
| Shell Material | Polyamide (PA), Nylon, . |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Shell Style | Plug |
| Shielding | Unshielded |
| Temperature Range | -40 to 80 C |
| Termination Style | Crimp / Solder |
| Type | Plug, For Male Pins |
| Voltage Rating | 250 V, 250 ; 250 V |
| Wire Size | 20-24 |
