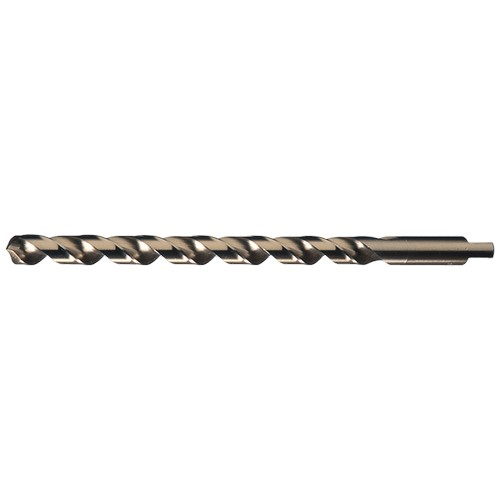

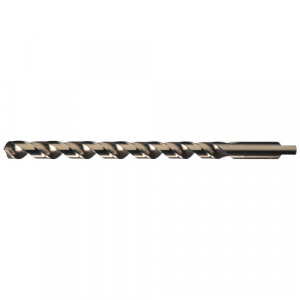

Cleveland 2513 Cobalt Steel Long Length Drill Bit, Gold Oxide Finish, Round Shank with Tang, 118 Degree Notched Point, 3/8" Dia. x 6 3/4" Lg (Pack of 1)
- Brand: CLEVELAND
- PartNumber: C15014
- Model: C15014
- Size: 3/8 in
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Stainless Steel, Carbon. |
| Application | For Stainless Steel, To. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 5-3/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Cobalt |
| Decimal Equivalent | 0.3750 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 3/8 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.1127 in |
| Drill Size - Decimal In. | 0.375 in |
| Drill Size - Fraction | 3/8 in |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 5 3/8 in, 5-3/8 in |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 21 Degrees /34 Degrees |
| Item | Taper Length Drill Bit |
| List Number | 2513 |
| Material | HSS-CO 8% (M42), Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 5 3/8 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 6-3/4 in, 6 3/4 in |
| Point Angle | 118 deg |
| Point Type | Notched |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Secondary Material Appl. | Cast Iron, Carbon Steel. |
| Secondary Material Appl. | K, M, P |
| Series | 2513 |
| Shank Dia. | 3/8 in |
| Shank Length | 1 3/8 in |
| Shank Size | 3/8 in |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Shop By | Closeouts |
| Sizes Included | 3/8" |
| Spiral Direction | Right Hand |
| Standards | AIS |
| Style | 2513 |
| Surface Condition | Straw |
| Tool Size | 3/8" |
| Type | General Purpose Heavy D. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6111159 | 26.66 | 2 | In Stock | | Cleveland | | 26.66 @ 2 |
 | Megadepot | C15014 | 30.25 | 1 | In Stock | | Cleveland | | 30.25 @ 1 |
 | usmegastore.com | C15014 | 31.47 | 1 | In Stock | | Cleveland | | 31.47 @ 1 |
 | Zoro | G2998322 | 31.89 | 6 | 4 | | Cleveland | 0.15 | 31.89 @ 6 |
 | sustainablesupply.com | C2769569 | 39.05 | 1 | In Stock | | Cleveland | 0.15 | 39.05 @ 1 |
