Honeywell 1SX1-H58

B00BJQY0Z0

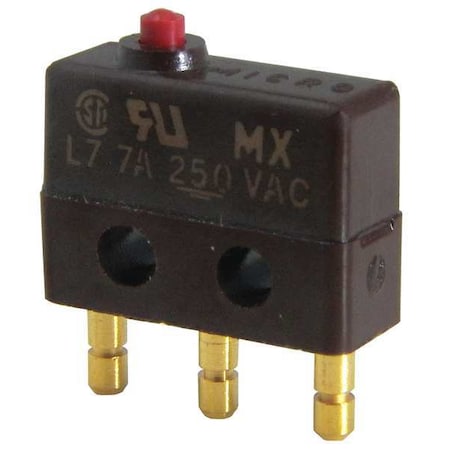

Sub-Mini Snap Swch, 7A, SPDT, Pin Plunger

Sub-Mini Snap Swch, 7A, SPDT, Pin Plungerzoom

Attributes

Key Value
AC Contact Rating - Sna.7A @ 240V
ActuatorPlunger, Pin
Actuator Length0.50"
Actuator TypeRound (Pin Plunger), Pi.
Actuator Type - Snap Ac.Pin, Plunger
Alternate Part No.785-1SX1-H58
Base Product Number1SX1
Body StyleSubminiature
BrandHoneywell
Casing MaterialPhenolic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Country of Origin (subj.Mexico
Current Rating7 A, 7A
Current Rating (Amps)7A (AC/DC)
Depth0.2"
Depth - Snap Action Swi.0.2 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.005 in, 0.005" (0.13m.
Digi-Key Part Number480-3015-ND
Electrical Connection -.Quick Connect
Electrical Life-
Features-
Height0.4"
Height - Snap Action Sw.0.4 in
Housing MaterialGeneral Purpose Phenolic
Ingress Protection-
ItemMiniature Snap Action S.
Length0.5"
Lever Actuator Length -.Not Applicable
ManufacturerHoneywell, Honeywell Se.
Manufacturer Part No.1SX1-H58
Manufacturer Product Nu.1SX1-H58
Manufacturer Standard L.10 Weeks
Max. Pretravel0.02 in
Mechanical Life1,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension0.19" Centers
Mounting Dimension - Sn.0.19 in Centers
Mounting Hole Size0.09 in
Mounting TypeChassis Mount
Number of Poles1
Number of Positions2
Operating Force5 oz, 1.4 N, 141gf, 5 O.
Operating Position0.320" (8.13mm)
Operating Temp. Range-67 Degrees to 257 Deg.
Operating Temperature-55?C ~ 125?C
Over Travel0.004 in
Overtravel0.004" (0.1mm)
PackageBulk
Pretravel0.020" (0.5mm)
Product CategoryBasic / Snap Action Swi.
Product StatusActive
Release Force1.0 oz, 28gf
SeriesSX, SX Series
Special FeaturesHigh Temperature
StandardsCE: 61058-1; UL: E12252.
Switch FunctionON - (OFF), OFF - (ON),.
Temperature Rating-53 to +121 C
Terminal TypeQuick Connect
TerminationQC Tabs
Termination StyleSolder Pin, Quick Conne.
TradenameMicroswitch
TypeBasic
Type of ActuatorPin Plunger
Voltage Rating250 V, 250VAC
Voltage Rating - AC250 V
Voltage Rating - DC28 V
Voltage Rating AC250 V
Voltage Rating DC28 V
Watertight - Snap Actio.No
Width - Snap Action Swi.0.5 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCarlton Bates Company7845495678916.591In StockHONEYWELL16.59 @ 1
thumbzoomsustainablesupply.comC117468318.991In StockHoneywell0.0118.99 @ 1
thumbzoomRadwell1SX1-H5824.01In StockHONEYWELL MICROSWITCH24.0 @ 1
TME1SX1-H5824.2260In StockHONEYWELL24.22 @ 60
us.rs-online.com7012019924.91120In StockHoneywell24.91 @ 120
thumbzoomZoroG473124625.651In StockHoneywell0.0125.65 @ 1
thumbzoomNewark23F188625.691113HONEYWELL25.69 @ 1
thumbzoomswatee.com1SX1-H5830.651127Honeywell30.65 @ 1
thumbzoomDigi-Key183408637.3511000Honeywell Sensing and Productivity Solutions37.35 @ 1
thumbzoomkempstoncontrols.co.uk1SX1-H585850.44461In StockHoneywell5850.4446 @ 1
