Honeywell V7-2S17D8-201

B00M2EBM36

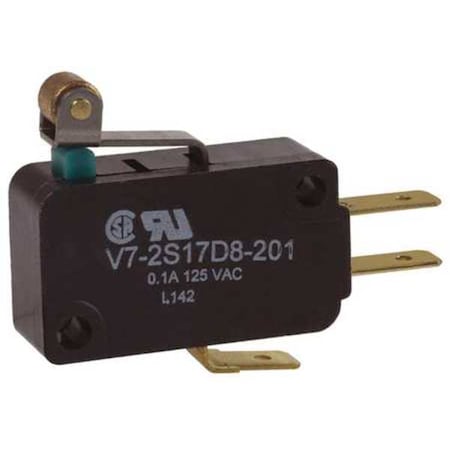

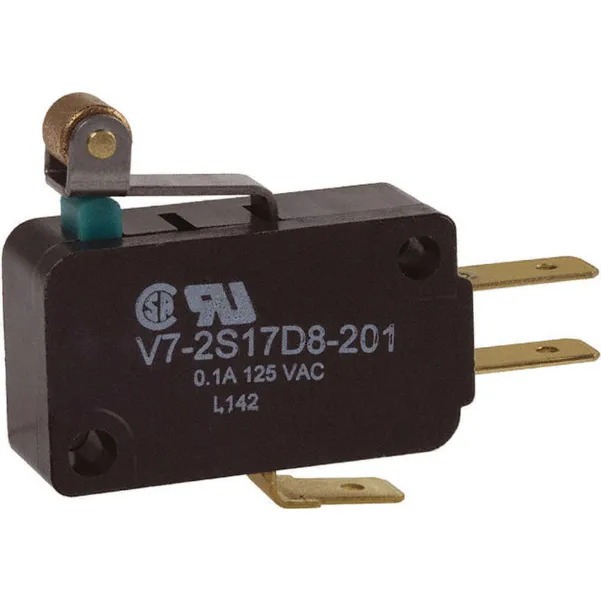

HONEYWELL S&C V7-2S17D8-201 MICRO SW, ROLLER LEVER, SPDT, 100mA 125V

HONEYWELL S&C V7-2S17D8-201 MICRO SW, ROLLER LEVER, SPDT, 100mA 125Vzoom

Attributes

Key Value
AC Contact Rating - Sna.0.1A @ 120 V, 0.1 A @ 1.
Actuator Length0.82"
Actuator TypeRoller Lever, Lever, Ro.
Actuator Type - Snap Ac.Lever, Roller, Short
Base Product NumberV7-2
Basic Actuator Type - S.Lever
BrandHoneywell
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating0.1A, 0.1 A
Current Rating (Amps)100mA (AC)
Current Stock197
Depth0.4"
Depth - Snap Action Swi.0.40", 0.4 in
DescriptionSWITCH SNAP ACT SPDT 10.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.015", 0.015 in, 0.015.
Digi-Key Part Number480-2386-ND
Electrical Connection -.3/16 in Quick Connect, .
Electrical Life100,000 Cycles
Features-
Height0.63"
Height - Snap Action Sw.0.63", 0.63 in
Housing MaterialPCT Polyester Thermopla.
Ingress Protection-
International ShippingNo
ItemMiniature Snap Action S.
Lead TimeExpected to ship in 1-2.
Length1.14"
Lever Actuator Length -.0.82", 0.82 in
ManufacturerHoneywell Sensing and P.
Manufacturer Product Nu.V7-2S17D8-201
Manufacturer Standard L.32 Weeks
Max. Pretravel1.19mm
Mechanical Life10,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension0.41 x 0.87" Centers
Mounting Dimension - Sn.0.87" Centers, 0.87 in .
Mounting TypeChassis Mount
MpnV7-2S17D8-201
Number of Circuits - Sn.1
Operating Force90gf, 0.88N
Operating Position0.812" (20.6mm)
Operating Temp. Range-40 Degrees C to 85 D.
Operating Temperature-40?C ~ 85?C
Over Travel1mm
Overtravel0.040" (1.0mm)
PackageBulk
Pretravel0.047" (1.2mm)
Product StatusActive
Release Force0.25 oz., 0.25 oz, 7.00.
SeriesV-Basic, V7 Series, V7
SKUZO-G4630166
Snap Action Switch TypeMiniature Snap Action S.
StandardsUL, CSA, ENEC
SubCategoryElectrical
Switch FunctionOn-Mom
Termination StyleQuick Connect - 0.187" .
Voltage Rating125VAC, 125 V
Voltage Rating - AC125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.14 in, 1.14"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comV7-2S17D8-2012.7111088HONEYWELL2.71 @ 1
thumbzoomCarlton Bates Company784549209732.81135HONEYWELL2.81 @ 1
thumbzoomsustainablesupply.comC11747584.18123Honeywell0.014.18 @ 1
ArrowV7-2S17D8-2014.9921295Honeywell4.992 @ 1
thumbzoomDigi-Key12485375.656200In StockHoneywell Sensing and Productivity Solutions5.656 @ 200
Mouser785-V7-2S17D8-2016.181191Honeywell6.18 @ 1
thumbzoomZoroG46301666.59120Honeywell0.016.59 @ 1
grainger.caWWG24A2866.65564102135HONEYWELL0.016.65564102 @ 1
thumbzoomNewark50F50808.551340HONEYWELL8.55 @ 1
AmazonTPB00M2EBM369.441352HONEYWELL S&C9.44 @ 1
us.rs-online.com705167059.721In StockHoneywell9.72 @ 1
AmazonSCB005T5IVQ69.99123Honeywell9.99 @ 1
thumbzoomRaptor SuppliesAB7TQD12.0226861In StockHONEYWELL12.022686 @ 1
thumbzoomsimsupply.comZO-G463016613.651197Honeywell13.65 @ 1
alliedcontrols.comV7-2S17D8-20118.351In StockHoneywell18.35 @ 1
standardelectricsupply.com23554491162.01In StockHoneywell1162.0 @ 1
thumbzoomkempstoncontrols.co.ukV7-2S17D8-2011474.9021In StockHoneywell1474.902 @ 1
