Hubbell SNAP1201BKNA

mpnSNAP1201BKNA
brandname: HUBBELL
manufacturername: HUBBELL

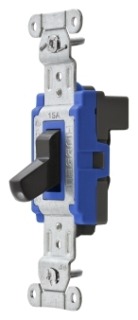

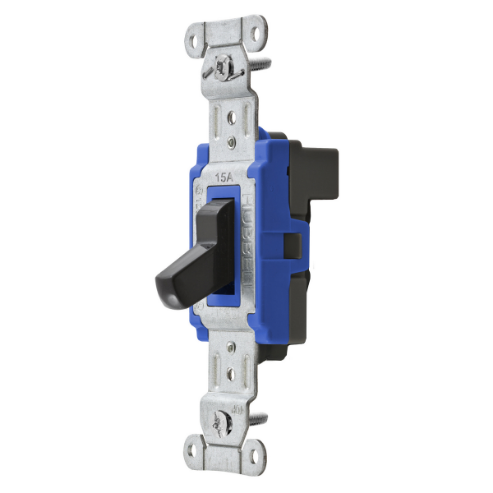

Hubbell SNAP1201BKNA Ac Switch, See Image

Brand: Hubbell
PartNumber: SNAP1201BKNA
Model: SNAP1201BKNA
Color: See Image
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Hubbell Wiring Device
Label: Hubbell Wiring Device

Attributes

Key	Value
Amperage	15 A
Amps AC	15 A
Antimicrobial	No
Application Environment	Commercial
Approvals	CSA, UL
Color	Black
Country of Origin (subj.	China
Current	15 A
Current / amperage rati.	15 A
Current Rating	15 A
Current rating	15 A
Description/Special Fea.	Abuse-Resistant Thermop.
Dielectric strength	Withstands 1500V AC min.
Dimensions	4.18 in x 1.3 in x 1.74.
Face Color	Blue
Family Series	Hubbell Switches
Features	Automatic Self-Groundin.
For Market	Industrial Grade
Grade	Heavy Duty
Gross Weight	0.2 lbs
Grounding	Automatic, Grounded
Height	1.74 in
Horsepower Rating	2 hp
Housing Material	Thermoplastic
HP @ 120 VAC	1/2 hp
HP @ 240 VAC	2 hp
Illuminated	No
Industry Standard(s)	UL Listed
Item	Wall Switch
Item Number	SNAP1201BKNA
Length	4.18 in
Locking	No
Locking Style	Not Applicable
Manufacturer	Hubbell
Manufacturer Part Number	SNAP1201BKNA
Market	Industrial
Material	Thermoplastic
Max Temperature Rise	30C maximum at rated cu.
Maximum Operating Tempe.	75 Degrees C
Minimum Operating Tempe.	-40 Degrees C
Mounting Screw Type	Thread Cleaning Captive
Net Weight	0 lbs
Number of poles	Single Pole
Number of Switches	1
Operating temperature	Maximum continuous 75C .
Operator	Toggle
Operator Color	Black
Overall Height	1.74 in
Overall Width	1.3 in
Performance	-40C without impact, Me.
Rated HP	1/2 to 2
Resistance Properties	Impact Resistant
Standards	UL/CSA
Style	Single Pole
Switch Configuration	Single Pole
Switch Function	Maintained
Switch Style	Toggle
Switch Type	1-Pole
Temperature	-40-167 ?F
Type	Toggle
Voltage	120-277 VAC, 120 VAC, 2.
Voltage AC	120 to 277
Voltage Rating	120/277V AC
Voltage rating descript.	120-277 VAC
Width (in)	1.3
Wire Connection Type	Modular Wiring
Wire Connection Types	Snap-In Module
Wiring	Snap Connector
Wiring Method	Back

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
gordonelectricsupply.com	SNAP1201BKNA	9.5	1	In Stock	HUBBELL		9.5 @ 1
Zoro	G4532263	9.89	1	In Stock	Hubbell	0.1	9.89 @ 1
MRO Supply	1499946	9.93	4	In Stock	Hubbell Wiring		9.93 @ 4
Galco	SNAP1201BKNA-HBBL	10.22	1	In Stock	Hubbell	0.2	10.22 @ 1
sustainablesupply.com	C1187232	13.86	1	In Stock	Hubbell	0.1	13.86 @ 1
Newark	94Y2345	17.07	1	In Stock	HUBBELL WIRING DEVICES		17.07 @ 1
Raptor Supplies	AC4XDQ	22.726899	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS		22.726899 @ 1
