Intermatic GMXQT-O-120

B003A1TM2S

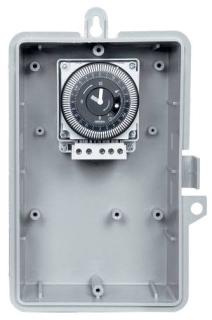

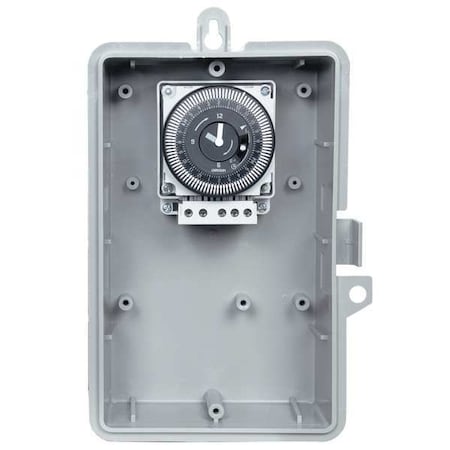

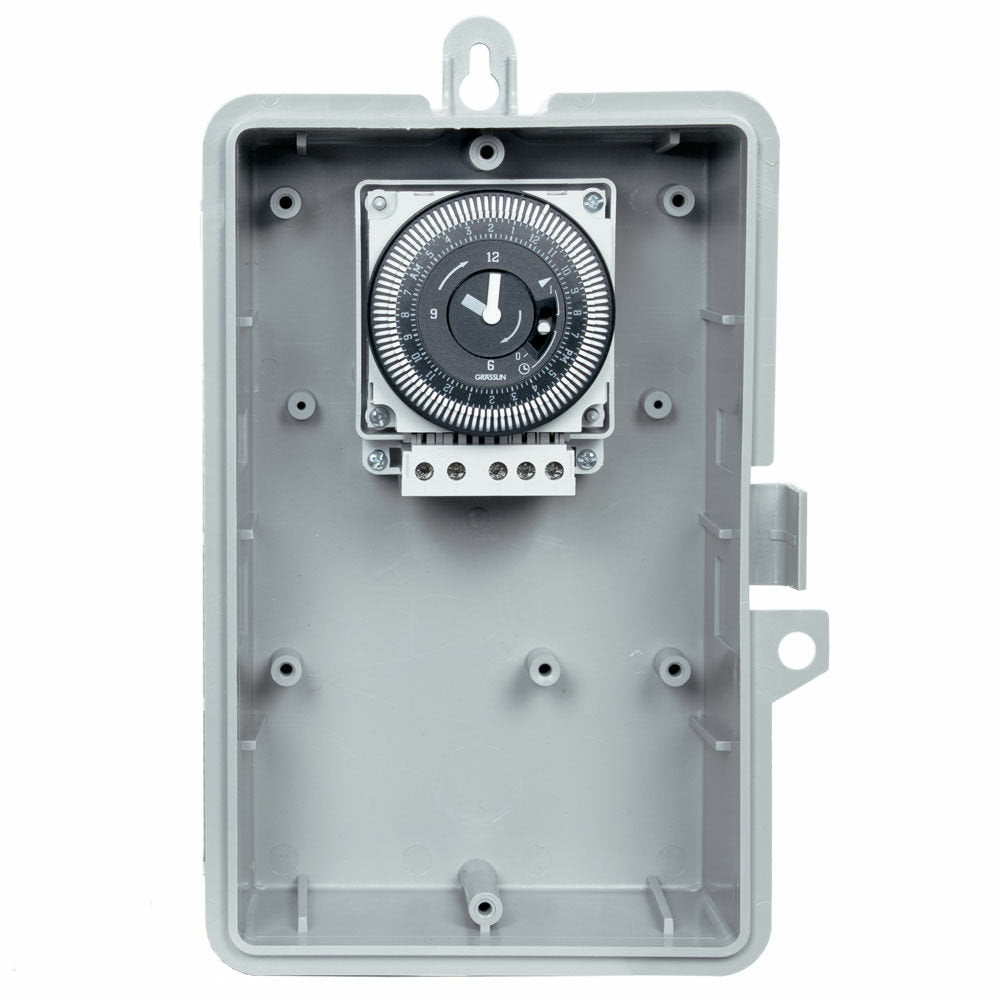

Grasslin by Intermatic GMXQT-O-120 24-Hour 120V 50/60-Hertz Electromechanical Time Control and NEMA 3R Outdoor Plastic Enclosure with Battery Backup

Grasslin by Intermatic GMXQT-O-120 24-Hour 120V 50/60-Hertz Electromechanical Time Control and NEMA 3R Outdoor Plastic Enclosure with Battery Backupzoom

Attributes

Key Value
Amperage Rating21 A
Amps21 A
Contact FormSPDT, 1NO-1NC 1SPDT
Contact HP @ 120V1 hp
Contact HP @ 240V2 hp
Country of Origin (subj.Mexico
Day SkipperNo
Depth4 5/16 in
Description/Special Fea.Battery Backup
Description:TIME SW,CLK FACE,QTZ
Dimensions10 in H x 6-1/2 in W x .
Electrical Connections12 AWG Screw Terminal
Enclosure TypePolycarbonate, NEMA 3R
FinishGray
Gross Weight1.57 lbs
Height11 3/4 in
Horsepower1 hp, 2 hp
IP/NEMA RatingNEMA 3
ItemElectromechanical Timer
ManufacturerINTERMATIC
Max. On/Off Cycles48
Max. Time Setting23 hr 45 min
MFG Part #:GMXQT-O-120
Min. Time Setting15 min
MountSurface
Mounting TypeWall
NEMA Rating3R
Nominal Max. Time Setti.24 hr
Number of Channels1
Number of Poles1
Number of Trippers Incl.96
Operating Temp.-4 Degrees to 131 Degr.
Operation Mode24 hr
SeriesGMX
StandardscULus
Supplier:INTERMATIC
Temperature Rating-4 to 131 deg F
Time Setting15 min to 24 hr
Time Setting Range15 min. to 23-3/4 hr.
TypeQuartz Drive, 24-Hour
UPC:078275153219
Voltage120V AC
Voltage Rating120 VAC
Wattage1350
Width7 5/16 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6503962107.041In Stock10Intermatic107.04 @ 1
thumbzoomgordonelectricsupply.comGMXQT-O-120114.041In StockINTERMATIC114.04 @ 1
thumbzoomsustainablesupply.comC1170505122.941In StockIntermatic1.8122.94 @ 1
Hawk ElectronicsGMXQT-O-120130.481In StockIntermatic130.48 @ 1
thumbzoomimprovedepot.com989965133.71In StockIntermatic133.7 @ 1
thumbzoombigfrogsupply.comGMXQT-O-120137.041In StockIntermatic137.04 @ 1
Grainger20XF34143.01In Stock15INTERMATIC143.0 @ 1
kscdirect.comINT GMXQT-O-120163.061In StockINTERMATIC163.06 @ 1
thumbzoomGalcoGMXQT-O-120-TRMC167.261In StockIntermatic1.57167.26 @ 1
thumbzoomPlatt.com0293886169.141In StockIntermatic169.14 @ 1
thumbzoomindustrialstores.comGMXQT-O-120169.871In Stock10Intermatic169.87 @ 1
thumbzoommidwestapplianceparts.comGMXQT-O-120-IN-P178.091In StockIntermatic178.09 @ 1
thumbzoomRaptor SuppliesAF7EGA241.7274991In StockINTERMATIC241.727499 @ 1
