Johnson Controls A19ABC-39C

B07KYPQFCN

Johnson Controls A19ABC-39C Spdt Direct Immersion Temperature Control 30/180F 6-

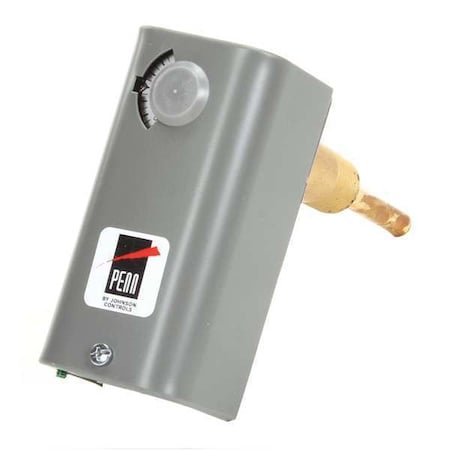

Johnson Controls A19ABC-39C Spdt Direct Immersion Temperature Control 30/180F 6-zoom

Attributes

Key Value
ApplicationHeating and Cooling
BrandJOHNSON CONTROLS
ColorGray
Compatible System TypeHot Water Heating Contr.
Contact Rating120V AC, 240V AC, 277V .
Contact Rating Resistiv.16 A
Contact Rating Resistiv.22 A
Contact Rating Resistiv.22 A
Control TypeKnob
Current Stock14
Date First AvailableJuly 5, 2012
Depth1 13/16 in
Differential6 Degrees to 24 Degree.
Differential TypeAdjustable
Electrical Connection T.Screw Terminals
Enclosure ColourGray
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeCompact
Family SeriesJohnson Controls Miscel.
Full Load Amps @ 120V AC16 A
Full Load Amps @ 120VAC16 A
Full Load Amps @ 240V AC8 A
Gross Weight1.65 lbs
GTIN696333177092
Height4 3/8 in
IncludesRemote Sensing Bulb
International ShippingNo
ItemLine Volt Mechanical Ts.
Item model numberA19ABC-39C
Item NumberA19ABC-39C
Key FeaturesCompact Enclosure, Cons.
Locked Rotor Amps @ 120V96 A
ManufacturerJOHNSON CONTROLS
Manufacturer Part NumberA19ABC-39C
Maximum Control Tempera.80 Degrees F
Maximum Operating Tempe.140 Degrees F
Minimum Control Tempera.30 Degrees F
Mounting TypeSurface Mount
MpnA19ABC-39C
Net Weight1.23 lbs
Number of Cooling Stages1
Number of Heating Stages1
Number of Poles1
Number of Relay Inputs1
Number of Switches1
Overall Depth1 13/16 in
Overall Height4 3/8 in
Overall Width2 1/8 in
Package Dimensions2 x 2 x 2 inches; 4 Pou.
Pilot Duty Rating125 A @ 24/600V AC
Product with faster shi.true
Remote Sensing Bulb Inc.Yes
Remote Sensing Capabili.Yes
Sensing Bulb Dia.3/8 in
Sensing Bulb Length3 1/16 in
Sensor Diameter3/8 in
Sensor Length3 1/16 in
Sensor LocationRemote
Sensor TypeWell
Shippingundefined (Fixed Shippi.
SKUZO-G7179566
StandardsCSA LR948/4813 02, UL E.
Switch ActionOpen/Close on Rise
Switch TypeSPDT
Temperature Differential6 Degrees F to 24 Deg.
Temperature ScaleFahrenheit
Temperature Sensitivity+/- 5 Degrees F
Thermostat Control Range30 Degrees to 80 Degre.
Thermostat TypeLine Voltage Mechanical.
Thermostat Voltage24 to 277V AC
UPC78502808425
Voltage24 to 277V AC
Well Connection Size1/2 in NPT
Width2 1/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcappusa.com2981189102.11In StockJohnson Controls102.1 @ 1
thumbzoomsustainablesupply.comC1119398111.391In StockJohnson Controls1.65111.39 @ 1
alliedcontrols.comA19ABC-39C119.41In StockJohnson Controls119.4 @ 1
thumbzoomblackhawksupply.comA19ABC-39C120.791In StockJohnson Controls120.79 @ 1
thumbzoomZoroG7179566122.19123Johnson Controls1.65122.19 @ 1
thumbzoomindustrialstores.comA19ABC-39C126.5813Johnson Controls126.58 @ 1
thumbzoomhomeessentialsdirect.comA19ABC-39C132.571In StockJOHNSON CONTROLS132.57 @ 1
hvacdiscountstore.comJOH--A19ABC-39C139.5613JOHNSON139.56 @ 1
thumbzoomsimsupply.comZO-G7179566141.84114Johnson Controls141.84 @ 1
thumbzoomGalcoA19ABC-39C-JHSN149.811In StockJohnson Controls1.65149.81 @ 1
thumbzoomwaterpumpsnow.comA19ABC-39C161.71In StockJohnson2.0161.7 @ 1
grainger.caJHCA19ABC39C167.196670161In StockJOHNSON CONTROLS1.65167.19667016 @ 1
KeleA19ABC-39C167.481In StockJohnson Controls167.48 @ 1
thumbzoomNational Supply NetworkB476161184.021In StockJohnson Controls Inc184.02 @ 1
