Marathon Electric GT0053

B006KM5S18

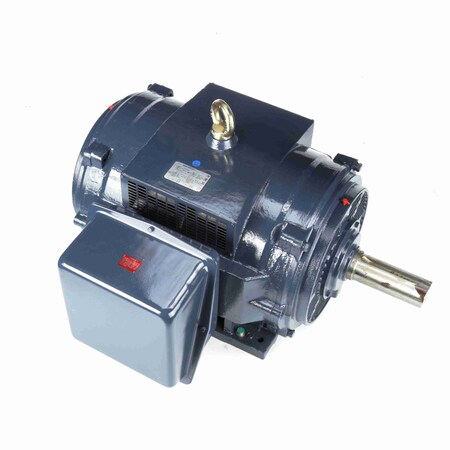

Marathon GT0053 447T Frame 447TTDC16077 Open Drip Proof General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 150 hp, 1200 RPM, 1 Speed, 460 VAC

Marathon GT0053 447T Frame 447TTDC16077 Open Drip Proof General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 150 hp, 1200 RPM, 1 Speed, 460 VACzoom

Attributes

Key Value
Amps172
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionCast Iron
Duty CycleContinuous
Efficiency0.954
Efficiency %95.4 %
EnclosureDrip Proof
Enclosure MaterialIron
Enclosure TypeODP (Open Dripproof)
Family SeriesMarathon Electric Motors
Frame447T
Frequency50 Hz, 60 Hz
Full Load Current172 A
Gross Weight0 lbs
Horsepower150 hp
HP150
Hz60
Insulation ClassF
Item NumberGT0053
Kilowatts112 kW
ManufacturerMarathon Electric
Manufacturer Model #447TTDC16077
Manufacturer Part Number447TTDC16077
Maximum Ambient Tempera.40? C
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid
NEMA Frame447T
Net Weight2075 lbs
Nominal Voltage480 VAC
Number of Poles6
Number of Speeds1
Overall Length49.69 ", 49.69"
Phase3
Product TypeThree Phase
RotationReversible
RPM1190, 1,190 RPM
Service Factor1.15
Shaft Diameter3.38 ", 3-3/8"
Shaft Length8.5"
Ship Weight2075 lbs.
TypeGeneral Purpose, NEMA M.
Voltage (AC)460 VAC
Volts460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
emotorpro.comGT005310082.941In StockMarathon2075.010082.94 @ 1
thumbzoomGalcoGT0053-MARA12135.51In StockMarathon Electric2075.012135.5 @ 1
thumbzoomZoroG50206078313840.01In Stock10Marathon13840.0 @ 1
industrialmotors.comGT005314562.614MARATHON ELECTRIC14562.6 @ 1
