Martin D35BTB70

B00452UNYW

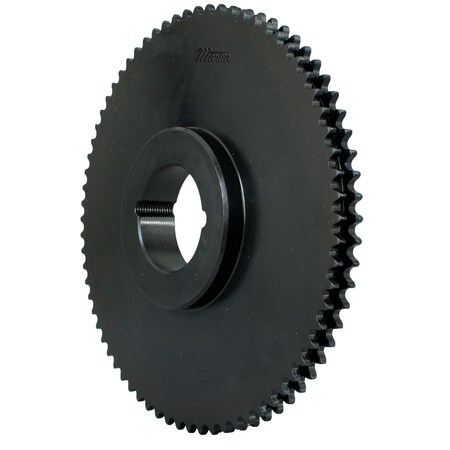

Martin Roller Chain Sprocket, Taper Bushed, Type B Hub, Double Strand, 35 Chain Size, For 1610 Bushing, 0.375" Pitch, 70 Teeth, 1.625" Max Bore Dia., 8.575" OD, 3.625" Hub Dia., 0.561" Width

Martin Roller Chain Sprocket, Taper Bushed, Type B Hub, Double Strand, 35 Chain Size, For 1610 Bushing, 0.375" Pitch, 70 Teeth, 1.625" Max Bore Dia., 8.575" OD, 3.625" Hub Dia., 0.561" Widthzoom

Attributes

Key Value
Bore TypeTaper Bush, Bushed
bore type:Bushed
bushing bore range:0.5000 to 1.6250 in
Bushing Code1610
Bushing SizeTB Bushed 1610
bushing size:1610
bushing type:Taper Locking - Double
Caliper Diameter8.1584
caliper diameter:8.1584 in
chain / sprocket type:Standard Roller Chain
Chain Number35-2, 35
chain number & pitch:35 / 3/8 in
Chain Pitch0.375 in
hardened teeth:No
hub diameter:3.6250 in
Length through Bore (In.1
length through bore:1.0000 in
manufacturer upc number:697950060736
MaterialSteel
material:Steel
Number of Rows2
number of strands acros.2
Number of Teeth70
Number Of Teeth70
number of teeth:70
Outside Dia8.575"
Outside Dia. (In.)8.575
outside diameter:8.5750 in
Pitch0.375, 0.375 in., 0.375.
Pitch Dia.8.3584
pitch diameter:8.3584 in
pitch type:Double
SizeTB Bushed 1610
storage dimension heigh.1.0000 in
storage dimension lengt.8.5750 in
storage dimension width:8.5750 in
Storage Height1
Storage Length8.575
Storage Width8.575
Surface TreatmentProtective Coating
surface treatment:Protective Coating
tooth width:0.5610 in
TypeBushed Roller Chain Spr.
Weight8.48
weight:8.48 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB00452UNYW122.091In StockMartin122.09 @ 1
thumbzoomindustrialzone.comD35BTB70130.922In StockMartin1.0130.92 @ 2
thumbzoomMRO Supply256479145.151In StockMartin Sprocket145.15 @ 1
us.rs-online.com72318947148.561In StockMartin Sprocket & Gear148.56 @ 1
motionindustries.com00204233159.531In StockMartin159.53 @ 1
thumbzoomPurvisD35BTB70160.521In StockMartin160.52 @ 1
thumbzoomapexindustrialautomation.comD35BTB70163.4811Martin Sprocket163.48 @ 1
thumbzoomZoroG2448500219.951In Stock14Martin Sprocket & Gear8.48219.95 @ 1
