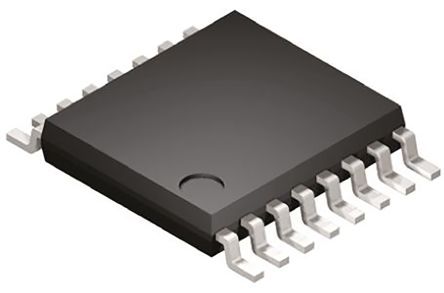

Maxim Integrated MAX5306EUE+

B00AZVF93C

MAX5306EUE+

MAX5306EUE+zoom

Attributes

Key Value
Alternate PartsMAX5306EUE+T
Architecture-, Resistor String
Base Part NumberMAX5306
Base Product NumberMAX5306
BrandMaxim Integrated
CategoryIntegrated Circuits (IC.
Data InterfaceSPI, DSP
Differential OutputNo
Digital Interface TypeSerial (SPI)
Dimensions5.1 x 4.5 x 1.05mm, Dim.
Full Scale Error?1%FSR, Full Scale Error
Height1.05mm, Height
INL/DNL (LSB)?1, ?1 (Max)
Integral Nonlinearity E.?4LSB, ?4LSB
Lead Free Status / RoHS.RoHS Compliant
Length5.1mm
Manufacturer Part NumberMAX5306EUE+
Manufacturer Standard L.6 Weeks
Maximum Operating Tempe.+85 ?C, +85 ?C
Maximum Settling Time5?s, Maximum Settling T.
MfrAnalog Devices Inc./Max.
Minimum Operating Tempe.-40 ?C, -40 ?C
Mounting TypeSurface Mount
Number of Bits12
Number of D/A Converters8
Number of DAC ChannelsNumber of DAC Channels,.
Operating Temperature-40?C ~ 85?C, -40
Output PolarityUnipolar
Output TypeVoltage - Buffered
PackageTube
Package / Case16-TSSOP (0.173", 4.40m.
Package TypeTSSOP
PackagingTube
Part StatusActive
Pin CountPin Count, 16
Power Supply TypeSingle
Reference TypeExternal
Resolution12 bit
Series-
Settling Time5, 5?s (Typ)
Standard Package96
StockStock
Supplier Device Package16-TSSOP
Typical Single Supply V.5 V
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digit.2.7V ~ 5.5V
Voltage ReferenceExternal
Width4.5mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Online165971910.45796In StockMaxim10.457 @ 96
iodPartsMAX5306EUE+12.6325288Maxim Integrated12.63 @ 25
HotendaH238970213.261In StockMaxim Integrated13.26 @ 1
thumbzoomRS Delivers192-252117.41In StockMaxim Integrated17.4 @ 1
Digi-Key177977921.522501440Analog Devices Inc./Maxim Integrated21.52 @ 1
thumbzoomNewark73Y483524.181904MAXIM INTEGRATED / ANALOG DEVICES24.18 @ 1
