Mersen MPDB69082

B00JPN7KWY

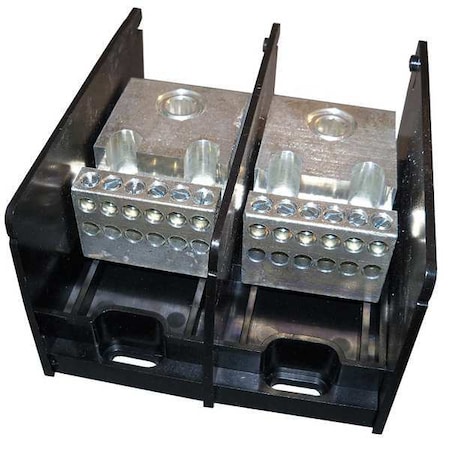

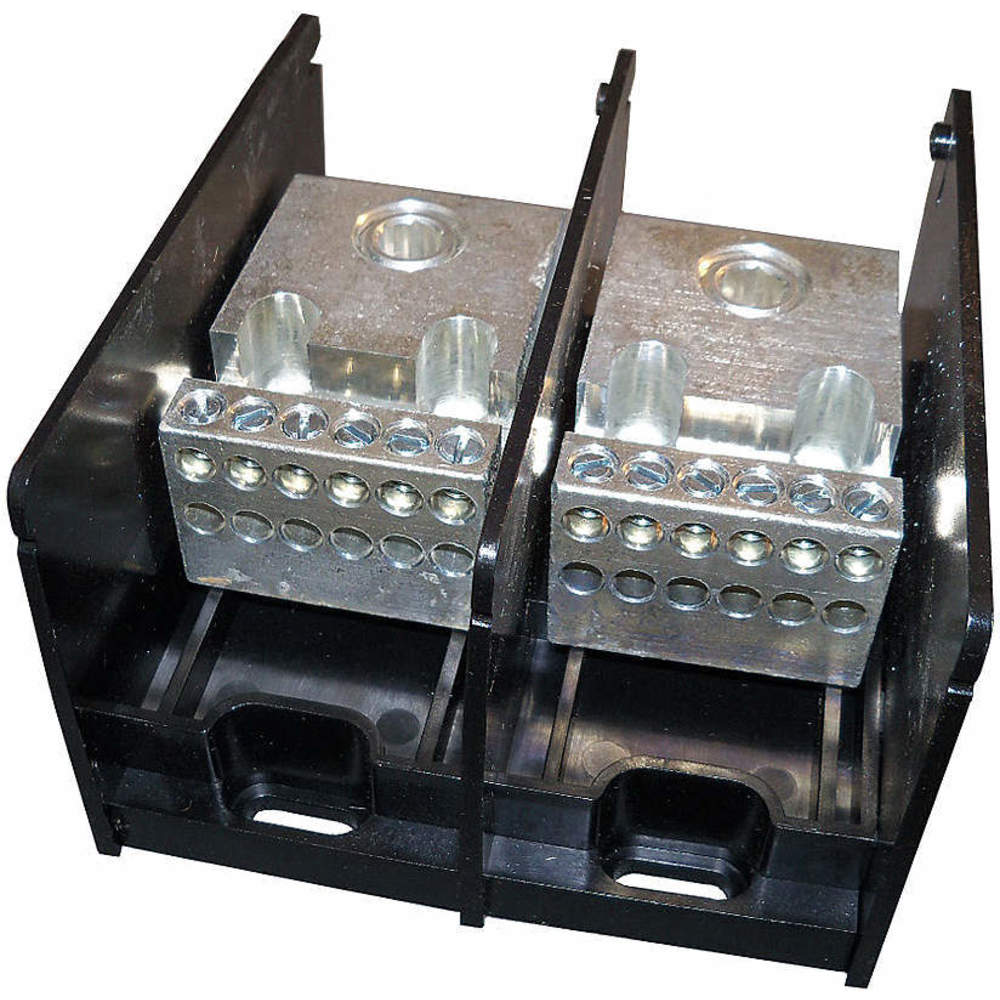

Mersen - MPDB69082 - Distribution Block, Standard, 600, 350A

Mersen - MPDB69082 - Distribution Block, Standard, 600, 350Azoom

Attributes

Key Value
(1)x 500-4AWG & (12)x 4.Wire Gauge
(2P) Double PolePole
1000VVoltage (V)
3Case Quantity
3.55''Height (in)
380AAmperage
5.31''Width (in)
5.7''Length (in)
782001451103UPC
ApprovalsCSA, UL
Body/Insulating Materia.Material
ColorBlack
CompositionGlass-Fill Polycarbonate
Current Rating (AC)380 A
Depth3.55 in
Direct Screw MountMounting
Family SeriesMersen, formerly Ferraz.
For additional options .Notes
For Line Aluminum Wire .500 kcmil
For Line Aluminum Wire .4 AWG
For Line Copper Wire Si.500 kcmil
For Line Copper Wire Si.4 AWG
For Load Aluminum Wire .4 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.4 AWG
For Load Copper Wire Si.14 AWG
Gross Weight2.285 lbs
Hex/Screw Size & Type (.13/16-16 x 1.06
Hex/Screw Size & Type (.5/16-24 x .38
Hole Diameter (Primary)0.88 in
Hole Diameter (Secondar.0.27 in
Includes CoverNo
Input Wire Range500 kcmil-4 AWG
ItemPower Distribution Block
Item NumberMPDB69082
Length5.7 in
Length (Straight Wirewa.5.7 in
Line Side Wire Size Ran.4 AWG - 500 kcmil
Line/Load ConnectionBox Lug/Box Lug
ManufacturerMersen, formerly Ferraz.
Manufacturer Part NumberMPDB69082
MersenBrand
Mounting TypePanel Mount
MPDB69082Stock Code
Net Weight2.285 lbs
Number of Inputs per Po.1
Number of Outputs per P.12
Number of Poles2
Output Wire Range4-14 AWG
Overall Depth3.55 in
Overall Length5.7 in
Overall Width5.31 in
Product Height3.55 in
Product Length5.7 in
Product SeriesMPDB
Product Width5.31 in
RoHSYes
ROHS Compliant, ULUL Listed
UL ComplianceUL1953
Voltage Rating (AC)600 VAC
Width5.32 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC1176275155.9713Mersen2.32155.97 @ 3
thumbzoomRaptor SuppliesAF8ECL185.714743513MERSEN185.7147435 @ 3
us.rs-online.com71938009188.2213Mersen188.22 @ 3
thumbzoomGalcoMPDB69082-SHAW232.8913Mersen, formerly Ferraz Shawmu2.285232.89 @ 3
thumbzoomturtle.comCS MPDB69082245.7713MERSEN245.77 @ 3
thumbzoombulbspro.comMPDB69082314.5513Mersen314.55 @ 3
thumbzoomZoroG52585471066.3293Mersen6.961066.32 @ 9
