Mersen MPDB69083

mpnMPDB69083
brandname: Mersen
manufacturername: Mersen

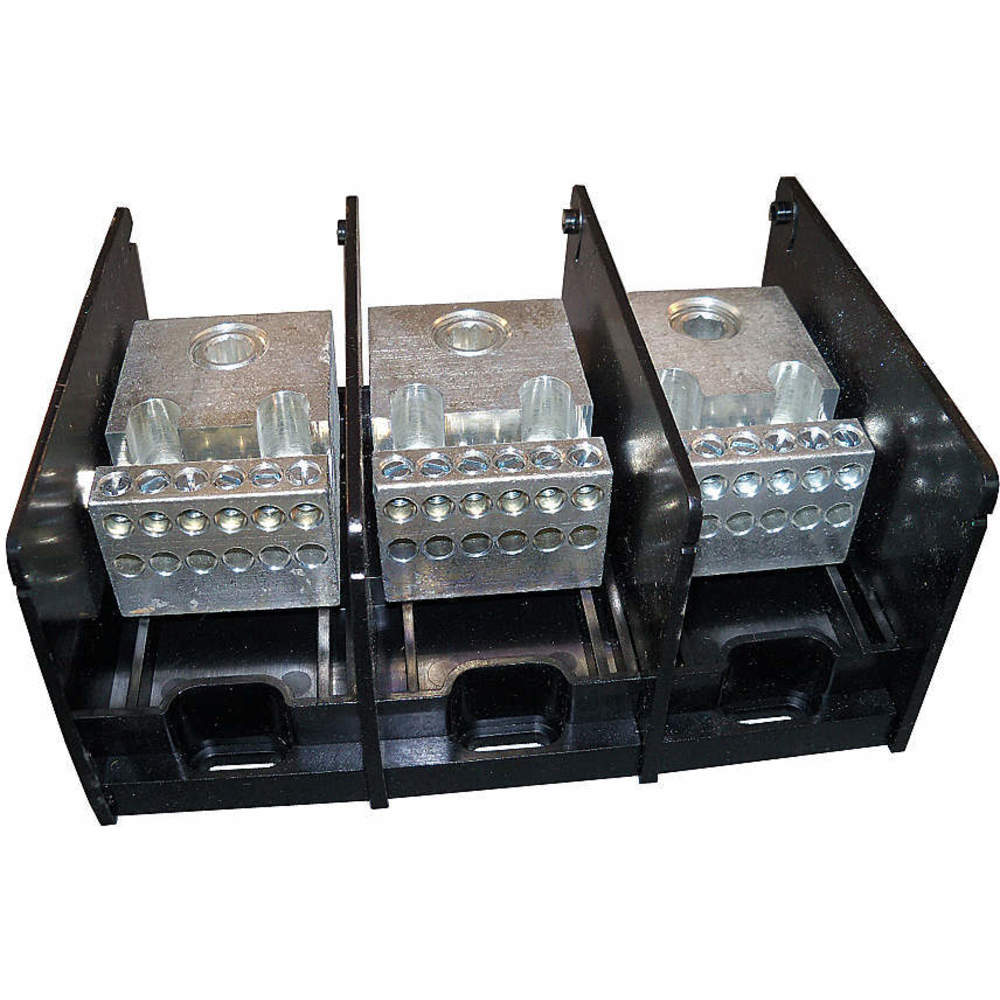

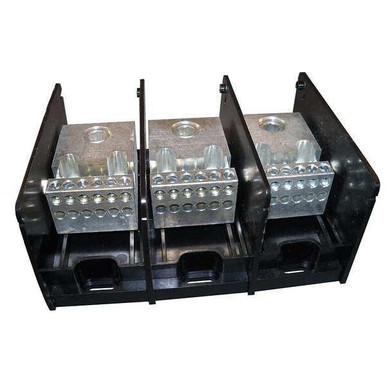

Pwr Dist Block, 350A, 3P, 4AWG-500 MCM, 600V

Brand: Mersen
PartNumber: MPDB69083
PackageQuantity: 1
Manufacturer: MERSEN
Label: MERSEN

Attributes

Key	Value
(1)x 500-4AWG & (12)x 4.	Wire Gauge
(3P) Three Pole	Pole
1000V	Voltage (V)
2	Case Quantity
3.55''	Height (in)
380A	Amperage
5.7''	Length (in)
7.89''	Width (in)
782001451110	UPC
Approvals	CSA, UL
Body/Insulating Materia.	Material
Brand	Mersen
Color	Black
Composition	Glass-Fill Polycarbonate
Current Rating	380 A
Current Rating (AC)	380 A
Current Stock	3
Depth	3.55 in
Direct Screw Mount	Mounting
Family Series	Mersen, formerly Ferraz.
For additional options .	Notes
For Line Aluminum Wire .	500 kcmil
For Line Aluminum Wire .	4 AWG
For Line Copper Wire Si.	500 kcmil
For Line Copper Wire Si.	4 AWG
For Load Aluminum Wire .	4 AWG
For Load Aluminum Wire .	14 AWG
For Load Copper Wire Si.	4 AWG
For Load Copper Wire Si.	14 AWG
Gross Weight	5.4 lbs
Hex/Screw Size & Type (.	13/16-16 x 1.06
Hex/Screw Size & Type (.	5/16-24 x .38
Hole Diameter (Primary)	0.88 in
Hole Diameter (Secondar.	0.27 in
Includes Cover	No
Input Wire Range	500 kcmil-4 AWG
International Shipping	No
Item	Power Distribution Block
Item Number	MPDB69083
Lead Time	Expected to ship in 1-2.
Length	5.7 in
Length (Straight Wirewa.	5.7 in
Line Side Wire Size Ran.	4 AWG - 500 kcmil
Line/Load Connection	Box Lug/Box Lug
Manufacturer	Mersen, formerly Ferraz.
Manufacturer Part Number	MPDB69083
Mersen	Brand
Mounting Type	Panel Mount
MPDB69083	Stock Code
Mpn	MPDB69083
Net Weight	5.4 lbs
Number of Inputs per Po.	1
Number of Outputs per P.	12
Number of Poles	3
Output Wire Range	4-14 AWG
Overall Depth	3.55 in
Overall Length	5.7 in
Overall Width	7.89 in
Primary Type	Power Distribution
Product Height	3.55 in
Product Length	5.7 in
Product Series	MPDB
Product Width	7.89 in
RoHS	Yes
ROHS Compliant, UL	UL Listed
Series	MPDB Series
SKU	ZO-G5259457
SubCategory	Electrical
UL Compliance	UL1953
UPC	782001451110
Voltage Rating	1000 V
Voltage Rating (AC)	600 VAC
Width	7.89 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
AmazonTP	B00K97A3UG	150.55	1	2	2	MERSEN		150.55 @ 2
sustainablesupply.com	C1176276	182.08	1	2		Mersen	7.45	182.08 @ 2
us.rs-online.com	71938010	195.3	1	4		Mersen		195.3 @ 2
Zoro	G5259457	195.99	1	61		Mersen	14.9	195.99 @ 2
cbtcompany.com	MPDB69083	200.98	1	2		Mersen		200.98 @ 2
turtle.com	CS MPDB69083	215.16	1	2		MERSEN		215.16 @ 2
Raptor Supplies	AF8ECM	228.60981	1	2		MERSEN		228.60981 @ 2
simsupply.com	ZO-G5259457	232.04	1	3		Mersen		232.04 @ 2
Galco	MPDB69083-SHAW	252.11	2	2		Mersen, formerly Ferraz Shawmu	5.4	252.11 @ 2
Kelly Hayes	MPDB69083	270.54	1	2		MERSEN (FORMERLY FERRAZ SHAWMUT INC)		270.54 @ 2
bulbspro.com	MPDB69083	278.74	1	2		Mersen		278.74 @ 2
United Electric	695253	375.93	1	2		Mersen		375.93 @ 2
standardelectricsupply.com	2280159	496.22	1	2		Mersen		496.22 @ 2
