- mpn0430450418
- brandname: Molex
- manufacturername: Molex

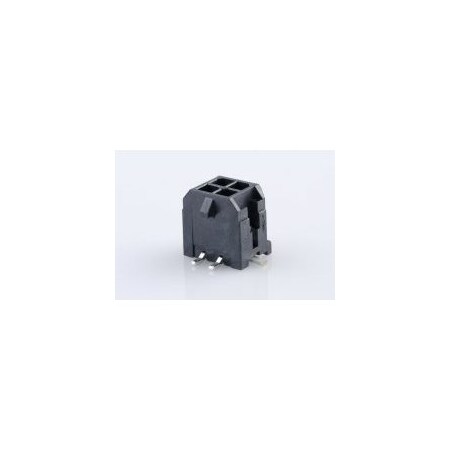

Headers & Wire Housings 4 CKT VERT SMT HDR (100 pieces)
- PartNumber: 43045-0418
- PackageQuantity: 100
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 43045-0418 |
| Alternate Part No. | 538-430-45-0418 |
| Applications | Automotive, General Pur. |
| ASIN | B00MEJF3BG |
| Base Product Number | 043045 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Finish Thicknes. | - |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Brass, Brass Alloy |
| Contact Plating | Tin |
| Contact Plating Thickne. | 0.254 ?m |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 8.5 A, 5 A |
| Current Rating (Amps) | 8A, Varies by Wire Gauge |
| Description | CONN HEADER SMD 4POS 3MM |
| Detailed Description | Connector Header Surfac. |
| Digi-Key Part Number | WM1802TR-ND - Tape & Re. |
| Family Name | Micro-Fit 3.0 |
| Fastening Type | Locking Ramp |
| Features | Glow-Wire Capable, Sold. |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 3 mm |
| Housing Material | Thermoplastic |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.390" (9.91mm) |
| Insulation Material | Liquid Crystal Polymer . |
| Item model number | 43045-0418 |
| Manufacturer | Molex |
| Manufacturer Part No. | 43045-0418 |
| Manufacturer Product Nu. | 0430450418 |
| Manufacturer Standard L. | 17 Weeks |
| Mated Stacking Heights | - |
| Material | High Temperature Thermo. |
| Material Flammability R. | UL94 V-0 |
| Max. Temp. | 260?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40?C ~ 105?C |
| Orientation | Vertical |
| Overall Contact Length | - |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel |
| Part # Aliases | 0430450418 43045-0418-PB |
| Part Status | Active |
| Pitch | 3.00 mm (0.118"), 3 mm |
| Pitch - Mating | 0.118" (3.00mm) |
| Plating Material | Tin |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Header Assemblies |
| Row Spacing | 6.86 mm |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Series | Micro-Fit 3.0 43045, 43. |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Style | Board to Cable/Wire |
| Terminal Finish | Tin Plated |
| Terminal Type | Surface Mount |
| Termination | Solder, Surface Mount |
| Termination Style | SMD |
| Tradename | Micro-Fit 3.0 |
| Type | Vertical Header, Pin He. |
| Voltage Rating | 600V, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Freelance Electronics | 43045-0418 | 0.51 | 1 | 196 | | MOLEX | | 0.51 @ 1 |
| Verical | 430450418 | 0.85 | 200 | 800 | | Molex | | 0.85 @ 200 |
| Onlinecomponents.com | 43045-0418 | 0.86 | 200 | 1600 | | Molex / Waldom | | 0.86 @ 200 |
| Power and Signal Group | 0430450418 | 1.0454 | 1800 | 196 | | Molex | | 1.0454 @ 1800 |
| Rutronik | COREC17366 | 1.14 | 200 | 9 | | Molex | | 1.14 @ 200 |
| Waldom | MOLEX 43045-0418 | 1.3 | 200 | 196 | | MOLEX | | 1.3 @ 200 |
| TTI | 430450418. | 1.586 | 4 | 183 | | Molex | | 1.586 @ 4 |
| Arrow | 43045-0418 | 2.35 | 1 | 199 | | Molex | | 2.35 @ 1 |
| AmazonSC | B00MEJF3BG | 3.27 | 1 | 196 | | MOLEX | | 3.27 @ 1 |
 | Digi-Key | 2467320 | 3.31 | 1 | 43137 | | Molex | | 3.31 @ 1 |
 | Newark | 98K9336 | 3.39 | 1 | 3410 | | MOLEX | | 3.39 @ 1 |
| us.rs-online.com | 70090793 | 3.9 | 1 | 1730 | | Molex Incorporated | | 3.9 @ 1 |
| RS Delivers | 670-1923 | 4.1964 | 1 | 5510 | | Molex | | 4.1964 @ 1 |
 | swatee.com | 43045-0418 | 4.86 | 1 | 2860 | | Molex | | 4.86 @ 1 |
 | Radwell | 43045-0418 | 5.0 | 1 | 196 | | MOLEX | | 5.0 @ 1 |
| AmazonTP | B00MEJF3BG | 7.28 | 1 | 196 | 2 | MOLEX | | 7.28 @ 1 |
 | Zoro | G4050773 | 450.0 | 200 | 196 | | Molex | | 450.0 @ 200 |
