ON Semiconductor MPSW51AG

mpnMPSW51AG
brandname: ON Semiconductor
manufacturername: ON Semiconductor

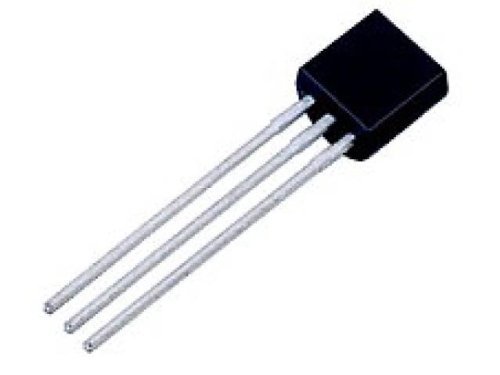

ON SEMICONDUCTOR - MPSW51AG - RF TRANSISTOR, PNP, -40V, 50MHZ, TO-92

ON SEMICONDUCTOR - MPSW51AG - RF TRANSISTOR, PNP, -40V, 50MHZ, TO-92

zoom

Brand: ON Semiconductor
PartNumber: MPSW51AG
PackageQuantity: 1
Manufacturer: ON Semiconductor
Label: ON Semiconductor

Attributes

Key	Value
Category	Discrete Semiconductor .
Collector Current	-1000 mA
Collector to Base Volta.	-50 V
Collector to Emitter Vo.	-40 V
Configuration	Common Base
Current - Collector (Ic.	1 A
Current - Collector Cut.	100nA (ICBO)
DC Current Gain (hFE) (.	60 @ 100mA, 1V
Dimensions	5.21 x 4.19 x 7.87 mm
Emitter to Base Voltage	-5 V
Frequency - Transition	50MHz
Height	0.31" (7.87mm)
Length	0.205" (5.21mm)
Material	Si
Maximum Operating Tempe.	+150 ?C
Mfr	ON Semiconductor
Minimum Operating Tempe.	-55 ?C
Mounting Type	Through Hole
Number of Elements per .	1
Number of Pins	3
Operating Frequency	50 MHz
Operating Temperature	-55?C ~ 150?C (TJ)
Package	Bulk
Package / Case	TO-226-3, TO-92-3 Long .
Package Type	TO-92
Part Status	Obsolete
Polarity	PNP
Power - Max	1 W
Power Dissipation	2.5 W
Primary Type	Si
Product Header	PNP Silicon One Watt Hi.
Resistance, Thermal, Ju.	50 ?C/W
Series	-
Supplier Device Package	TO-92 (TO-226)
Temperature Operating R.	-55 to +150 ?C
Transistor Type	PNP
Type	High Current
Vce Saturation (Max) @ .	700mV @ 100mA, 1A
Voltage - Collector Emi.	40 V
Voltage, Breakdown, Col.	-40 V
Voltage, Collector to E.	-0.7 V
Width	0.165" (4.19mm)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70100048	0.10801	1	925		ON Semiconductor		0.10801 @ 1
