PIC Gauges 201L-204B

B00FBKQEOA

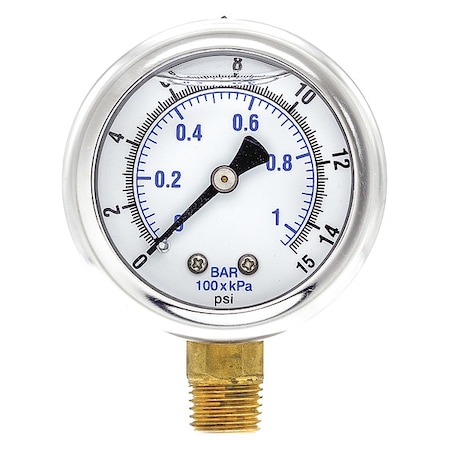

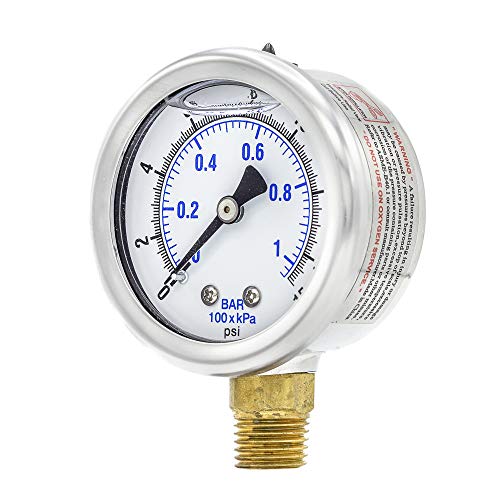

PIC Gauge 201L-204B 2" Dial, 0/15 psi Range, 1/4" Male NPT Connection Size, Bottom Mount Glycerine Filled Pressure Gauge with a Stainless Steel Case, Brass Internals, Stainless Steel Bezel, and Polycarbonate Lens

PIC Gauge 201L-204B 2" Dial, 0/15 psi Range, 1/4" Male NPT Connection Size, Bottom Mount Glycerine Filled Pressure Gauge with a Stainless Steel Case, Brass Internals, Stainless Steel Bezel, and Polycarbonate Lenszoom

Attributes

Key Value
Accuracy3-2-3% of span (Grade B.
Accuracy GradeASME B40.100 Grade B
Accuracy ScaleMid-Scale
Ambient Operating Tempe.30 Degrees to 160 Degr.
Ambient Temperature-30? F to 180? F
Available OptionsCertificate of Accuracy.
Basic Gauge Case Materi.Stainless Steel
Basic Gauge Lens Materi.Plastic
Basic Gauge Sensor Mate.Copper
Basic Gauge Socket Mate.Copper
Basic Gauge Wetted PartsCopper
BezelStainless Steel, Crimped
Bezel MaterialStainless Steel
Bezel Mounting TypeFixed
Blowout Safety BackNo
BrandPIC Gauges
Calibration Certificate.No
Case ColorSilver
Case ConstructionStainless Steel
Case Depth1.2 in
Case Diameter2.27 in
Case MaterialStainless Steel
Case TypeStainless Steel
Cleaned for Oxygen Serv.No
ConditionNew
Connection1/4" NPT
Connection LocationLower
Connection Size1/4 in NPT
Country of Origin (subj.China
Current Stock42
Dial ColorWhite
Dial Face MaterialAluminum
Dial Size2"
Dial Size (In.)2
Diameter2.27"
Dry Dampening FeatureNone
Field FillableNo
Fill TypeLiquid Filled (Glycerin.
Freeze Resistant Moveme.No
Gauge Accuracy+/-3-2-3%
Gauge Accuracy GradeGrade B - Commercial
Gauge ApplicationGlycerine Filled for Ad.
Gauge Case ColorStainless Steel
Gauge Case LiquidGlycerin
Gauge Case MaterialStainless Steel
Gauge Connection Locati.Bottom
Gauge Connection Size1/4 in
Gauge Connection TypeMNPT
Gauge Filled WithGlycerin
Gauge Lens MaterialPolycarbonate
Gauge Nominal Dial Size2 in
Gauge Panel MountableNo
Gauge Primary Range Sma.0.1
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 15
Gauge Sensor MaterialCopper Alloy
Gauge Socket MaterialCopper Alloy
Gauge Wetted PartsCopper
Hazardous Location Rati.Not Rated
IncludesVent Plug
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugYes
International ShippingNo
IP/NEMA RatingNot Rated
ItemIndustrial Pressure Gau.
Length2.95"
Lens MaterialPolycarbonate
Lens Material - GaugePlastic
Lens TypePolycarbonate
Liquid FilledYes
Liquid-Filled CaseYes
ManufacturerPIC Gauges
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
MaterialStainless Steel
Max. Pressure (PSI)15
Maximum Pressure Range15 psi
Minimum Pressure Range0 psi
Mount TypeLower Mount
Mpn201L-204B
Nominal Dial Size2 in
Non-SparkingNo
Operating Temp. Range30 Degrees to 160 Degr.
Panel-MountableNo
PointerBlack Aluminum
Pointer ColorBlack
Pointer MaterialAluminum
Pressure and Vacuum Gau.Pressure Gauge
Pressure Gauge TypeGeneral Purpose Dial Pr.
Pressure Range0-15 psi
Pressure Range (Seconda.0 to 15 psi ( 0 to 1 ba.
Pressure Range TypePressure
Primary Graduations0.1
Primary Pressure Range0 to 15
Primary Scale Minor Gra.0.1
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/4 in
Process Connection TypeNPT
Product Series200 series
Range0 to 15 psi
Removable BezelNo
ScaleStandard: psi/BAR (x 10.
Scale TypeDual
Secondary Pressure Range0 to 1 bar
Secondary Scale Unitsbar
Sensor MaterialCopper Alloy
Series201L
SKUZO-G5120285
Smallest Graduation0.1 psi
Socket MaterialCopper Alloy
SubCategoryTest Instruments
Vibration ResistanceLiquid-Filled
Weight2.000000
Wetted PartsBrass Internals

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG512028519.191195Pic Gauges0.3619.19 @ 1
thumbzoomindustrialrefrigerationparts.com201L-204B24.641In StockPIC Gauges2.024.64 @ 1
thumbzoomsimsupply.comZO-G512028525.75142Pic Gauges25.75 @ 1
AmazonTPB00FBKQEOA34.811In Stock2PIC Gauges34.81 @ 1
