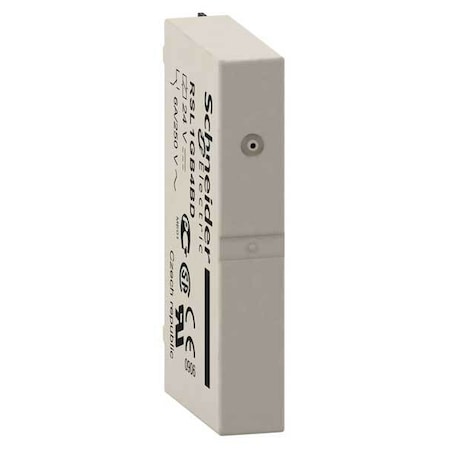

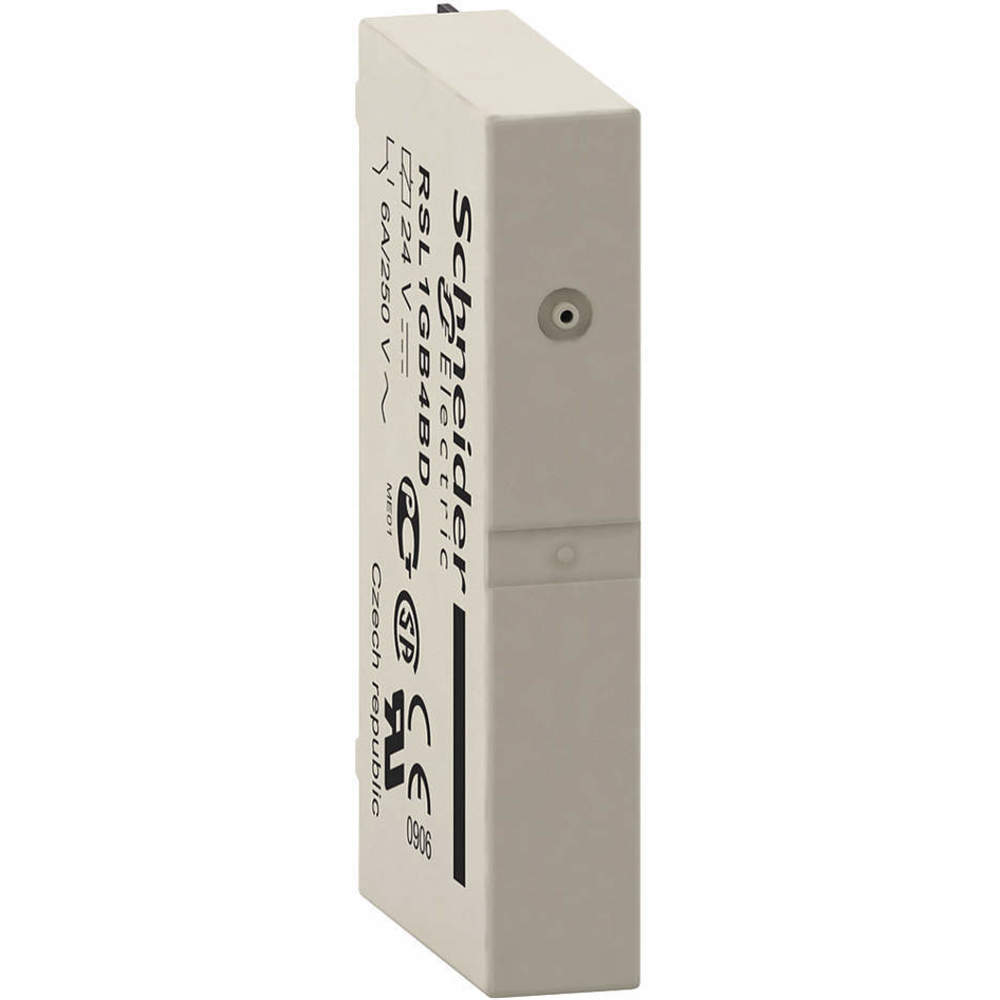

SCHNEIDER ELECTRIC RSL1AB4BD Power Relay, SPDT, 24VDC, 6A, PCB

SCHNEIDER ELECTRIC RSL1AB4BD Power Relay, SPDT, 24VDC, 6A, PCBzoom

Attributes

Key Value
AC Contact Rating - Rel.6A @ 250V
Amperage Rating6A
ApprovalsCSA, IEC, UL
Bifurcated ContactNo
Body Depth0.72 in
Body Depth - Relay0.2 in
Body Height1.1 in
Body Height - Relay0.59 in
Body Width0.19 in
Body Width - Relay1.1 in
BrandSchneider Electric
Catalog NumberRSL1AB4BD
CategoryRelays
Coil Current7.1 mA
Coil Insulation-
Coil Resistance3.39 kOhms
Coil TypeNon Latching
Coil Voltage24VDC, 24 V DC, 24 VDC
Coil Volts24V DC
Contact Amp Rating (Res.6
Contact Configuration1 C/O
Contact Current Rating6 A
Contact FormSPDT (1 Form C), SPDT
Contact Form - RelaySPDT
Contact MaterialSilver Tin Oxide (AgSnO.
Contact Operation1 C/O
Contact RatingStandard
Contact Rating (Current)6 A
Contact Voltage Rating300 VAC
Contacts1NO
Control Voltage24
Country of OriginCN - China, China
Current Rating6 A
DC Contact Rating - Rel.6A @ 28V
Depth18.5 mm
DescriptionHARMONY, SLIM INTERFACE.
Detailed DescriptionGeneral Purpose Relay S.
Digi-Key Part Number4008-RSL1AB4BD-ND
DiodeNo
ECCNEAR99
EnclosureIP40
Family SeriesSquare D Relays, Slim I.
Features-
Flat Pin WidthNot Applicable
Gross Weight0.01 lbs
GTIN03606480077975
Hazardous RatedYes
Height28 mm
ItemSlim Interface Relay
Item - RelaySlim Interface Relay
Item NumberRSL1AB4BD
Item TypePlug-in relay;Flat (PCB.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number337024
Manufacturer Product Nu.RSL1AB4BD
Manufacturer Standard L.7 Weeks
Materialsilver alloy (AgSnO2)
Max Current6 A
Mechanical LatchNo
MfrSchneider Electric
MountingSocket or PCB, Plug In
Mounting - RelayPlug In, Printed Circui.
Mounting TypeSocketable, Through Hole
Must Operate Voltage18 VDC
Must Release Voltage1.2 VDC
Net Weight0.01 lbs
Nominal Coil Voltage24 VDC
Number of Pins - Relay5
Operate Time12 ms
Operating Temperature-40?C ~ 55?C, -40-55 A .
Overall Depth0.74 in
Overall Height - Relay0.73 in
PackageBox
Pins5
Power Consumption - Rel.0.2 W
Primary TypePower Relays
Product SeriesSlim Interface Relay
Product StatusActive
Published Coil Voltage24 VDC
Push-to-TestNo
Relay TypeElectromechanical, Gene.
Release Time5 ms
Resistance3390 OHM AT 23 Degrees.
RoHSYes
Safety GuidedYes
Seal Rating-
SeriesRSL Series, Harmony
Socket IncludedNo Socket
Special FeaturesAny position
Standard+/- 1 MM 10-55 HZ)EN/IE.
StandardsCSA C22.2 No 14, EAC, E.
Status IndicatorNo
Sub BrandRSL
Switching Voltage277VAC - Max
TerminationPCB, PCB Pin
Termination StylePlug In
Time Cycle5 ms reset || 12 ms
UNSPSC39122326
UPC785901695226
UPC Code785901695226
Voltage Rating250 V
Warranty DescriptionContractual Warranty:18.
Width5 mm
