Sealmaster SFT-10

B006MICAH0

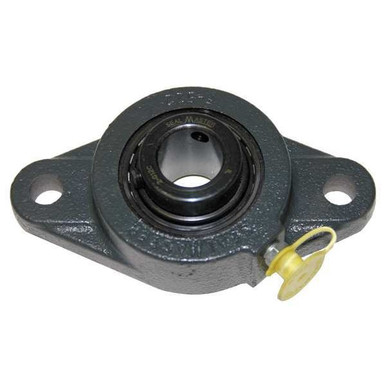

Sealmaster SFT-10 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 5/8" Bore, 3-7/8" Overall Length, 3" Bolt Hole Spacing Width, 7/16" Flange Height, ?2 Degrees Misalignment Angle

Sealmaster SFT-10 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 5/8" Bore, 3-7/8" Overall Length, 3" Bolt Hole Spacing Width, 7/16" Flange Height, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Back Side to Center Wid.0.671 in
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Size3/8 in
Bolt Spacing3 Inch | 76.2 Millimeter
Bore0.625 Inch | 15.875 Mil.
Bore Dia.5/8 in
Bore Diameter5/8 in
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Current Stock3
Dimension A3 7/8 in
Dimension B3 in
Dimension C7/16 in
Dimension D15/16 in
Dimension E19/32 in
Dimension F13/32 in
Dimension G1 9/32 in
Dimension H1 15/16 in
Dimension J2 5/16 in
Dimension L1 3/16 in
Dimension M23/32 in
Dimension N1/2 in
Duty SeriesStandard
EAN0662461004210
Estimated Weight1.00
Expansion / Non-expansi.Non-expansion
Family SeriesSealmaster Bearings, SF.
Global Part Number GPN16790
Gross Weight0 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Flange Block
Inch - MetricInch
Insert Material52100 Steel/Black Oxide.
Insert Part Number2-010
International ShippingNo
Item NumberSFT-10
Lead TimeExpected to ship in 1-2.
Length Thru Bore1.219 Inch | 30.96 Mill.
Locking DeviceSetscrew, Set Screw
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Manufacturer Part Number700536
Mount Hole Center-to-Ce.3 in
Mount Hole Center-to-Ce.3 in
Mount Hole Size25/64 in
Mounting Bolt Size3/8 in
Mounting Bolts13/32 Inch
Mounting MethodSet Screw
MpnSFT-10
Net Weight0.0625 lbs
Nominal Bolt Circle Dia.3 Inch | 76 Millimeter
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height2 5/16 in
Overall Length3 7/8 in
Overall Width1 9/32 in
Part NumberSFT-10
Pilot ConfigurationNo Pilot
price$ 70.33 / each
Product SeriesSFT
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)0.625, 0.625 "
Shaft Range0.5-0.99
SKUZO-G7801744
SubCategoryPower Transmission
titleSFT-10
TypeTwo Bolt Flange
UNSPSC31171501
UPC Code662461004210
Weight / kgm0.454
Weight / LBS1.2

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingSFT-1059.781In StockSEALMASTER0.998859.78 @ 1
thumbzoommotorsandcontrol.comSFT-1084.8612Sealmaster1.084.86 @ 1
thumbzoomGalcoSFT-10-SMST86.091In StockSealmaster0.062586.09 @ 1
us.rs-online.com7211559291.081In StockSealmaster91.08 @ 1
thumbzoomPurvisSFT-10104.521In StockSealmaster104.52 @ 1
thumbzoomZoroG7801744106.99122Sealmaster0.97106.99 @ 1
thumbzoomsimsupply.comZO-G7801744126.7213Sealmaster126.72 @ 1
motionindustries.com00564279131.961In StockSealmaster131.96 @ 1
