Sealmaster SFT-12

B00DBOXLVW

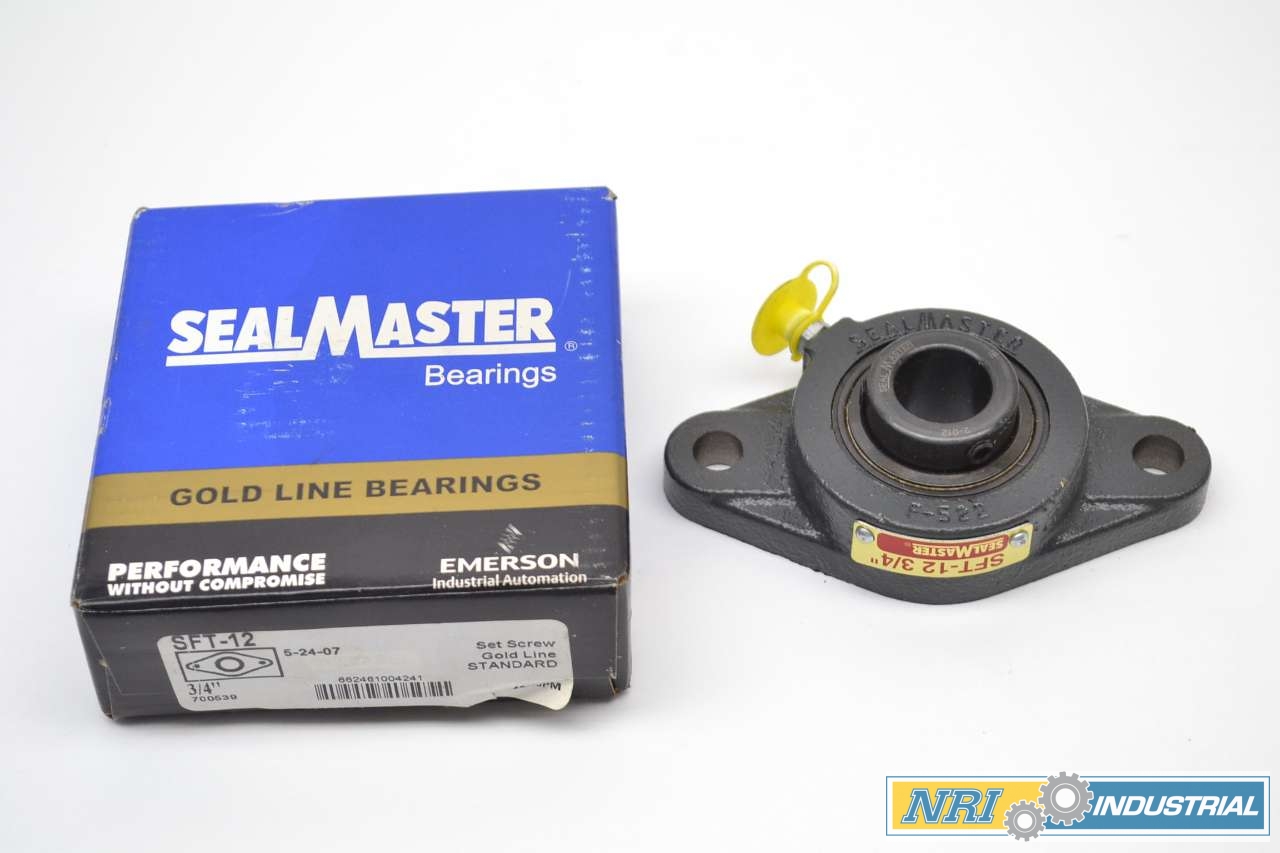

Sealmaster SFT12 Ball Bearing Flange Unit

Sealmaster SFT12 Ball Bearing Flange Unitzoom

Attributes

Key Value
Back Side to Center Wid.0.593 in
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Size3/8 in
Bolt Spacing3.531 Inch | 89.7 Milli.
Bore0.75 Inch | 19.05 Milli.
Bore Dia.3/4 in
Bore Diameter3/4 in
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Dimension A4 13/32 in
Dimension B3 17/32 in
Dimension C7/16 in
Dimension D15/16 in
Dimension E1 9/32 in
Dimension F13/32 in
Dimension G7/16 in
Dimension H2 in
Dimension J2 3/8 in
Dimension L1 3/16 in
Dimension M23/32 in
Dimension N1/2 in
Duty SeriesStandard
EAN0662461004241
Estimated Weight1.10
Expansion / Non-expansi.Non-expansion
Family SeriesSealmaster Bearings, SF.
Global Part Number GPN16797
Gross Weight1.075 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Flange Block
Inch - MetricInch
Insert Material52100 Steel/Black Oxide.
Insert Part Number2-012
Item NumberSFT-12
Length Thru Bore1.219 Inch | 30.96 Mill.
Locking DeviceSetscrew, Set Screw
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Manufacturer Part NumberSFT-12
Mount Hole Center-to-Ce.3 17/32 in
Mount Hole Center-to-Ce.3 17/32 in
Mount Hole Size25/64 in
Mounting Bolt Size3/8 in
Mounting Bolts13/32 Inch
Mounting MethodSet Screw
Net Weight1.075 lbs
Nominal Bolt Circle Dia.3.5 Inch | 90 Millimeter
Number of Mounting Holes2
Other FeaturesSingle Row | Standard D.
Overall Height2 3/8 in
Overall Length4 13/32 in
Overall Width1 9/32 in
Part NumberSFT-12
Pilot ConfigurationNo Pilot
price$ 77.08 / each
Product SeriesSFT
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)0.75, 0.75 "
Shaft Range0.5-0.99
titleSFT-12
TypeTwo Bolt Flange
UNSPSC31171501
UPC Code662461004241
Weight / kgm0.55
Weight / LBS1.2

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialB44664545.391In StockSEALMASTER45.39 @ 1
thumbzoomLily BearingSFT-1265.521In StockSEALMASTER1.2165.52 @ 1
thumbzoomGalcoSFT-12-SMST84.761In StockSealmaster1.07584.76 @ 1
thumbzoommotorsandcontrol.comSFT-1284.7611Sealmaster1.184.76 @ 1
us.rs-online.com7211559594.191In StockSealmaster94.19 @ 1
thumbzoomPurvisSFT-12102.461In StockSealmaster102.46 @ 1
thumbzoomZoroG8988025105.991In Stock10Sealmaster1.2105.99 @ 1
thumbzoommotionindustries.com00564286136.431In StockSealmaster136.43 @ 1
thumbzoomRadwellSFT-12145.38118SEALMASTER0.55145.38 @ 1
