Sealmaster SFT-16

mpnSFT-16
brandname: SEALMASTER
manufacturername: SEALMASTER

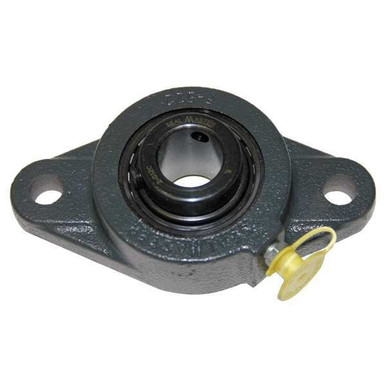

Sealmaster SFT-16 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1" Bore, 4-7/8" Overall Length, 3-57/64" Bolt Hole Spacing Width, 17/32" Flange Height, ?2 Degrees Misalignment Angle

Brand: Sealmaster
PartNumber: SFT-16
Model: SFT-16
Size: ?2 degrees
PackageQuantity: 1
Binding: Misc.
Manufacturer: Regal
Label: Regal

Attributes

Key	Value
Back Side to Center Wid.	0.625 in
Bearing Insert Type	Ball
Bearing Type	Two Bolt Flange
Bolt Size	7/16 in
Bolt Spacing	3.891 Inch \| 98.83 Mill.
Bore	1 Inch \| 25.4 Millimeter
Bore Dia.	1 in
Bore Diameter	1 in
Brand	SEALMASTER
Cartridge Pilot Depth	0 Inch \| 0 Millimeter
Cartridge Pilot Diameter	0 Inch \| 0 Millimeter
Category	Flange Block Bearings
Current Stock	47
Dimension A	4 7/8 in
Dimension B	3 57/64 in
Dimension C	17/32 in
Dimension D	1 1/32 in
Dimension E	1 7/16 in
Dimension F	15/32 in
Dimension G	17/32 in
Dimension H	2 3/8 in
Dimension J	2 3/4 in
Dimension L	1 3/8 in
Dimension M	13/16 in
Duty Series	Standard
EAN	0662461004289
Estimated Weight	1.50
Expansion / Non-expansi.	Non-expansion
Family Series	Sealmaster Bearings, SF.
Global Part Number GPN	16820
Gross Weight	1.48 lbs
Harmonized Tariff Code	8483.20.40.40
Housing Configuration	1 Piece Solid
Housing Material	Cast Iron
Housing Style	2 Bolt Flange Block
Inch - Metric	Inch
Insert Material	52100 Steel/Black Oxide.
Insert Part Number	2-1
International Shipping	No
Item Number	SFT-16
Lead Time	Expected to ship in 1-2.
Length Thru Bore	1.375 Inch \| 34.925 Mil.
Locking Device	Setscrew, Set Screw
Manufacturer	SEALMASTER
Manufacturer Name	REGAL BELOIT
Manufacturer Part Number	SFT-16
Mount Hole Center-to-Ce.	3 57/64 in
Mount Hole Center-to-Ce.	3 57/64 in
Mount Hole Size	15/32 in
Mounting Bolt Size	3/8 in
Mounting Bolts	15/32 Inch
Mounting Method	Set Screw
Mpn	SFT-16
Net Weight	1.425 lbs
Nominal Bolt Circle Dia.	3.9 Inch \| 99 Millimeter
Number of Mounting Holes	2
Other Features	Single Row \| Standard D.
Overall Height	2 3/4 in
Overall Length	4 7/8 in
Overall Width	1 7/16 in
Part Number	SFT-16
Pilot Configuration	No Pilot
price	$ 83.43 / each
Product Series	SFT
Relubricatable	Yes
Seal Type	Standard Felt Seal
Seals	Felt Labyrinth
Shaft Diameter (in)	1 ", 1
Shaft Locking Type	Set Screws
Shaft Range	1-1.49
SKU	ZO-G5301046
SubCategory	Power Transmission
title	SFT-16
Type	Two Bolt Flange
UNSPSC	31171501
UPC Code	662461004289
Weight / kgm	0.73
Weight / LBS	1.6

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
NRI Industrial	B422584	42.03	1	In Stock	SEALMASTER		42.03 @ 1
FinditParts	3570747	56.57	1	In Stock	SEAL MASTER BEARING		56.57 @ 1
Lily Bearing	SFT-16	70.92	1	In Stock	SEALMASTER	1.606	70.92 @ 1
Galco	SFT-16-SMST	91.76	1	In Stock	Sealmaster	1.48	91.76 @ 1
apexindustrialautomation.com	SFT-16	94.97	1	In Stock	Sealmaster		94.97 @ 1
motorsandcontrol.com	SFT-16	94.97	1	2	Sealmaster	1.5	94.97 @ 1
us.rs-online.com	72115601	101.94	1	1	Sealmaster		101.94 @ 1
Zoro	G5301046	111.99	1	103	Sealmaster	1.6	111.99 @ 1
simsupply.com	ZO-G5301046	142.1	1	47	Sealmaster		142.1 @ 1
