Square D EX225T3HCU

B01M6ZK8DT

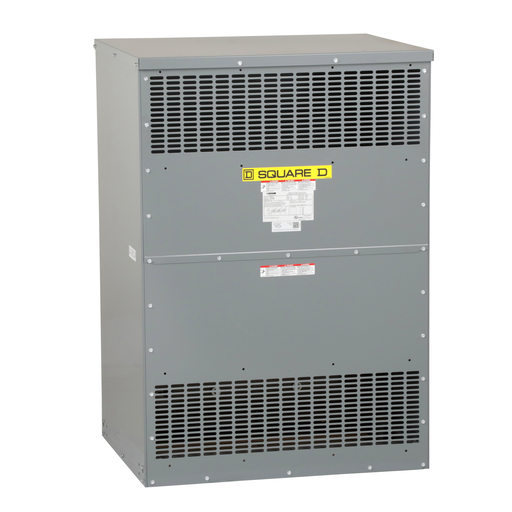

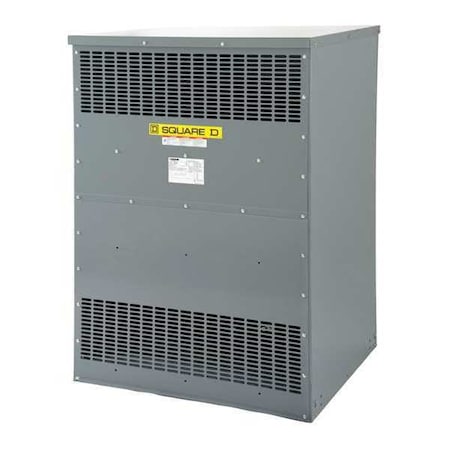

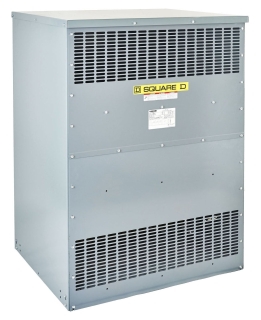

SQUARE D EX225T3HCU Three Phase Transformer,225kVA,480VAC

SQUARE D EX225T3HCU Three Phase Transformer,225kVA,480VACzoom

Attributes

Key Value
[Ipk] Rated Peak Withst.10.9 kA
[Uimp] Rated Impulse Wi.10 kV
Ambient Air Temperature.40-40 ?C
Average Ambient Air Tem.30 ?C
California Proposition .Phenyl Glycidyl Ether, .
China Rohs RegulationPro-active China RoHS d.
Continuous Thermal Curr.1483.536394404384 16.6 .
Country of Origin (subj.Mexico
Degree Of ProtectionUL type 1 || UL type 2,.
Depth32.75 in, 832 mm
Device Applicationlow voltage electrical .
Device Short NameDOE 2016
Efficiency99.04 % at 35 % load fa.
Electrical Connection4 Hole Nema Pad primary.
Enclosure RatingNEMA 1 (Convertible to .
Enclosure TypeIndoor
Environmental DisclosureENVPEP1604027EN
Eu Rohs DirectiveCompliant
Height57.5 in, 1461 mm
Hz60
Hz - Electrical60 Hz
Input Voltage480VAC
Input Voltage - Transfo.480V AC Delta
ItemThree Phase Transformer
Item - TransformerThree Phase Transformer
Knockout Size - Transfo.No Knockout
Materialcopper
Mercury FreeYes
MountingFloor
Mounting - TransformerFloor
Mounting - TransformerFloor
Mounting Supportfloor || floor, with 74.
Net Weight700.8 kg
Network Frequency60 Hz
Noise Level6 dB NEMA ST-20 || 49 dB
Number Of Tap-Offs2 2.5 % FCAN || 4 2.5 %.
Outdoor Rated - Transfo.No
Output Voltage208VAC Wye/120VAC
Output Voltage - Transf.120V AC, 208V AC Wye
Percentage Impedance Vo.0.057 %
Percentage Reactance0.0536 %
Phase3 phase
Phase - Electrical3
Primary Voltage480 V delta
Product Or Component Ty.transformer
Promotion RestrictionNot eligible for promot.
Pvc FreeYes
Range Of ProductSquare D
Rated Operational Power.225 kVA
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Secondary Voltage208Y/120 V
StandardsNEMA ST-20, UL Listed, .
Sustainable Offer StatusGreen Premium product
Tap Loss311.0 no load (core los.
Temp. Rise150 Degrees C
Temperature Rise150 ?C || 220 ?C insula.
Toxic Heavy Metal FreeYes
Transformer Typeenergy efficient
Type Of Coolingnatural convection
VA Rating225kVA
VA Rating - Transformer225 kVA
Voltage Function - Tra.Step Down
Width40.07 in, 1018 mm
Winding Material - Tran.copper
X/R Ratio2.68

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comEX225T3HCU19325.01In Stock10SQUARE D19325.0 @ 1
thumbzoomsustainablesupply.comC293101119449.371In StockSquare D1905.019449.37 @ 1
AmazonTPB01M6ZK8DT19590.521In Stock30SQUARE D19590.52 @ 1
thumbzoomUnited Electric66989619741.111In StockSquareD19741.11 @ 1
thumbzoomNewark71AJ799620724.621In StockSQUARE D BY SCHNEIDER ELECTRIC20724.62 @ 1
thumbzoommayerelectric.comSQDEX225T3HCU21084.61In StockSQUARE D1541.7621084.6 @ 1
thumbzoomZoroG198699921973.111In Stock29Square D1905.021973.11 @ 1
