Schneider Electric HDA261001

B00CONEJE4

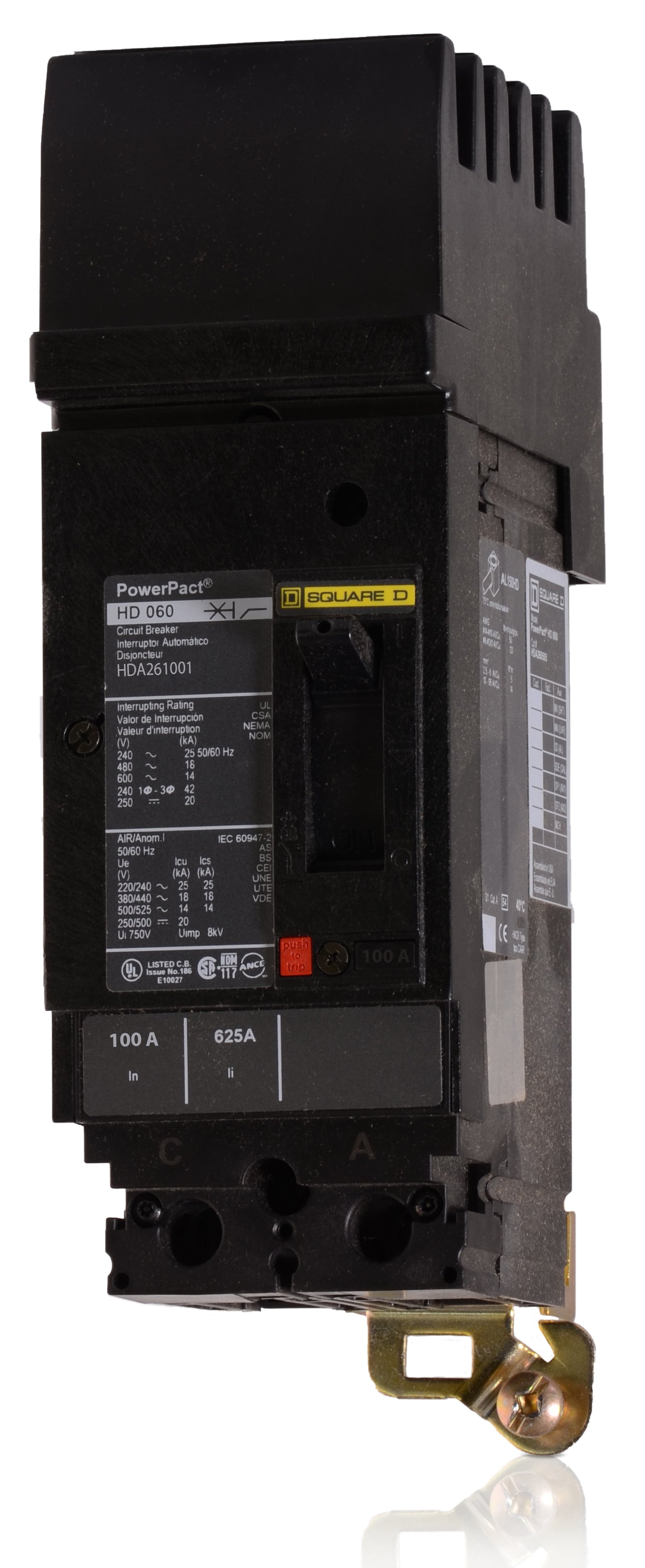

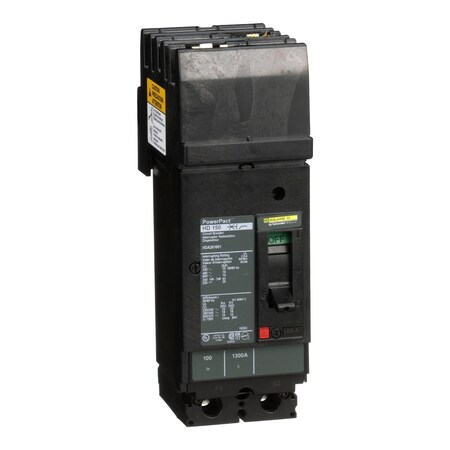

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HDA261001 Molded CASE Circuit Breaker 600V 100A

SCHNEIDER ELECTRIC 600-VOLT 100-AMP HDA261001 Molded CASE Circuit Breaker 600V 100Azoom

Attributes

Key Value
AC Voltage Rating690V AC
Amperage100
Amperage Rating100
Amps100 A
ApplicationHACR rated Applications.
ApprovalUL
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHDA261001
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Country of OriginUnited States, US - Uni.
Current Rating100-100A
Depth86 mm
DisplayHDA261001 Circuit break.
ECCNEAR99
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901419051
Height163 mm, 3 in., 6.42
High Amp Trip Setting1700 A
Interrupt Rating14 kA, 25 kA at 220/240.
Interrupting Rating18kAIC at 480V
ItemCircuit breaker,PowerPa.
Item TypeCIRCUIT BREAKER
Length16 mm, 4.8 IN
Made in USAYes
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypeI-Line
MpnHDA261001
No. of Poles2
Number of Poles2
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAB
Poles2
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact, HDA
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE
Sub BrandPowerPact
Terminal ConnectionI-Line, Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range100 A,1700 A,900 A
Trip TypeTHERMAL-MAGNETIC, Therm.
UNSPSC39121616
UPC785901419051
Upc785901419051
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty DescriptionContractual Warranty:18.
Width4.09, 104 mm, 104 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRaptor SuppliesAG8NZP1.4860755167SQUARE D1.4860755 @ 1
standardelectricsupply.com2267949580.031In StockSquare D580.03 @ 1
thumbzoomgordonelectricsupply.comHDA261001625.016710SQUARE D625.0 @ 1
thumbzoomRadwellHDA261001680.0167SCHNEIDER ELECTRIC SQUARE D680.0 @ 1
thumbzoomZoroG3980399707.5716710Square D2.2707.57 @ 1
Newark19K9987712.511In StockSQUARE D BY SCHNEIDER ELECTRIC712.51 @ 1
Graybar25147203767.07681In StockSquare D (Schneider Electric)767.0768 @ 1
simplybreakers.comHDA261001929.991In StockSchneider929.99 @ 1
thumbzoomsuperbreakers.comHDA2610011241.4217Square D1241.42 @ 1
thumbzoomcrescentelectric.com966262117.59167Square D by Schneider Electric2117.59 @ 1
