Schneider LXM32MU45M2

B01BRSP3XW

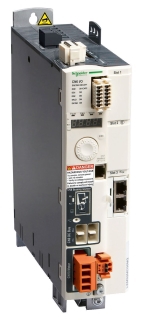

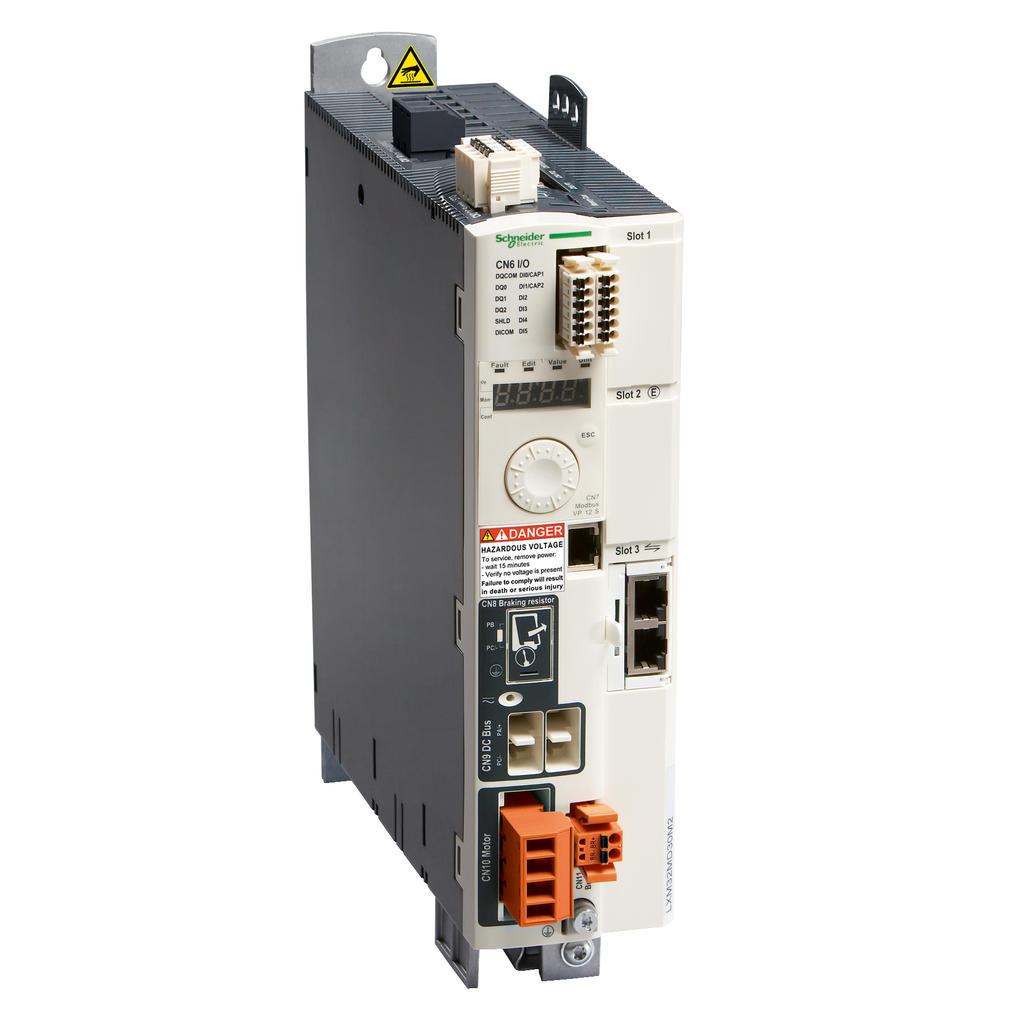

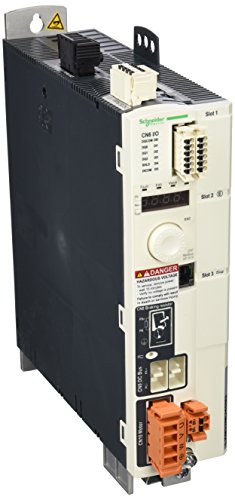

Schneider LXM32MU45M2 AC Servo Drive T145806

Schneider LXM32MU45M2 AC Servo Drive T145806zoom

Attributes

Key Value
[Us] Rated Supply Volta.100...120 V - 15...10 %.
Ambient Air Temperature.0-50 ?C UL
Ambient Air Temperature.-25-70 ?C
Amperage Rating1.5 A at 8 kHz Continuo.
ApplicationLXM32M,NATURAL CONVECTI.
Braking Current50 mA
BrandSchneider Electric
California Proposition .Lead and lead compounds.
Catalog NumberLXM32MU45M2
China Rohs RegulationX
Circularity ProfileENVEOLI110605EN
Communication InterfaceModbus, Integrated || C.
Connection typeTerminal
Connector TypeRJ45 (labelled CN7) Mod.
Continuous Output Curre.1.5 A 8 kHz
Continuous Power150 W 115 V || 500 W 23.
ControlServo Motor Encoder Fee.
Country of OriginIndonesia
Depth237 mm
Device Short NameLXM32M
Discrete Input Number2 capture || 2 safety |.
Discrete Input Typecapture CAP || logic DI.
Discrete Input Voltage24 V DC capture || 24 V.
Discrete Output Logicpositive or negative DO.
Discrete Output Number3
Discrete Output Typelogic DO)24 V DC
Electrical Connectionterminal 3 mm?, AWG 12 .
Electrical Isolationbetween power and contr.
Electromagnetic Compati.conducted EMC, class A .
Emc Filterintegrated
EnclosureIP20 CONFORMING TO EN/I.
Enclosure TypeIP20
Environmental Character.classes 3C1 IEC 60721-3.
Environmental Conditions32 to 122 deg F, -13 to.
Environmental DisclosureENVPEP110705EN
Eu Rohs DirectivePro-active compliance (.
Format Of The Drivebook
Frequency Rating50/60 Hz
GTIN03606480076824
Height270 mm, 10.63, 10.63 in
Ip Degree Of ProtectionIP20 EN/IEC 60529 || IP.
Item TypeLXM32M,MOTION SERVO DRI.
Length237 mm
Line Current2.6 A 85 % 115 V, with .
Made in USANo
ManufacturerSchneider Electric
MarkingCE
Maximum Leakage Current30 mA
Mercury FreeYes
Net Weight1.7 kg
Network Frequency47.5...63 Hz
Nominal Power0.15 kW 115 V 8 kHz || .
Number Of Addresses1-247 Modbus
Operating Positionvertical +/- 10 degree
Output Current 3S Peak3 A 115 V 5 s || 4.5 A .
Overvoltage CategoryIII
Phasesingle phase, 1 ph
Physical Interface2-wire RS485 multidrop .
Pollution Degree2 EN/IEC 61800-5-1
Product CertificationsCSA || UL || T?V
Product Compatibilityservo motor BSH 55 mm, 1
Product Or Component Ty.motion servo drive
Protection Typeagainst reverse polarit.
Pvc FreeYes
Range Of ProductLexium 32
Reach RegulationReference contains Subs.
Relative HumidityClass 3K3 (5 to 85 %) w.
Response Time On Output250 ?s DO)discrete
Rohs Exemption Informat.Yes
Safety FunctionSTO (safe torque off), .
Safety LevelSIL 3 EN/IEC 61508 || P.
Sampling DurationDI 0.25 ms discrete || .
SeriesLexium? LXM32M, LXM32_B.
Shock Resistance15 gn 11 ms EN/IEC 6002.
Signalling Functiondisplay of faults 7 seg.
Special FeaturesMOTION SERVO DRIVE,TERM.
StandardCSA-UL-T??V-ROHS,EN/IEC.
StandardsEN/IEC 61800-5-1 || EN/.
Status Led1 LED (Red) servo drive.
Sub BrandLEXIUM
Supply Frequency50/60 Hz - 5...5 %
Supply Voltage Limits170-264 V || 85-132 V
Sustainable Offer StatusGreen Premium product
Switching Frequency8 kHz
Tightening TorqueCN8 0.5-0.5 N.m || CN1 .
Torque Rating4.43/6.2 in-lb
Transmission Rate9600, 19200, 38400 bps .
Type Of Cablesingle-strand IEC cable.
Type Of Coolingnatural convection
UPC785901672760
UPC Code785901672760
Vibration Resistance1 gn 13-150 Hz)EN/IEC 6.
Voltage Rating115/230 VAC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.15 kW at 115 V 8 kHz,.
WeeeThe product must be dis.
Width2.68 in, 68 mm, 2.68

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentLXM32MU45M2902.01In StockSchneider Electric902.0 @ 1
thumbzoomgordonelectricsupply.comLXM32MU45M21080.01In Stock10SQUARE D1080.0 @ 1
RS Delivers181-14061114.741In StockSchneider Electric1114.74 @ 1
thumbzoomRadwellLXM32MU45M21150.01In StockSCHNEIDER ELECTRIC SQUARE D1150.0 @ 1
Newark71AJ93521237.881In StockSQUARE D BY SCHNEIDER ELECTRIC1237.88 @ 1
thumbzoomstandardelectricsupply.com24067301355.831In StockSquare D (Schneider Electric)1355.83 @ 1
thumbzoommayerelectric.comSQDLXM32MU45M21411.111In StockSQUARE D3.741411.11 @ 1
thumbzoomcrescentelectric.com2409171412.591In StockSchneider Electric1412.59 @ 1
us.rs-online.com712448041526.2312Schneider Electric1526.23 @ 1
