TE Connectivity / AMP Brand 5747299-2

B00FRC8QNE

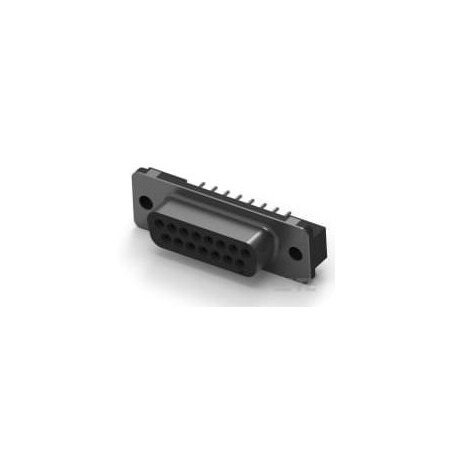

Tyco Electronics 15-Pin D-Sub ConnectorPCB, Female Vertical - 5747299-2

Tyco Electronics 15-Pin D-Sub ConnectorPCB, Female Vertical - 5747299-2zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; CSA Cer.
Alternate Mfr Part Numb.5747299-2
Alternate Part No.571-5747299-2
AngleStraight
ApplicationCommercial
BrandTE Connectivity
Centerline (Pitch)2.74?mm?[?.108?in?]
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle
Connector SystemBoard-to-Board
Contact Base MaterialPhosphor Bronze
Contact Current Rating .6
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeRound
Contact Underplating Ma.Nickel
Country of Origin (subj.Mexico
GenderFemale
Housing MaterialThermoplastic
ManufacturerTE Connectivity
Manufacturer Part No.5747299-2
Mating Connector LockWithout
Number of Contacts15
Number of Positions15
Number of Rows2
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeMounting Hole
PCB Mounting StyleThrough Hole
Primary TypeD-Sub
Product CategoryD-Sub Standard Connecto.
ProfileStandard
Row-to-Row Spacing.112 in, 2.84 mm
SealableNo
SeriesHD-20 Series, HD-20
Shell MaterialSteel, Front Metal Shell
Shell PlatingTin
Shell Size2
Shell TypeFront Metal Shell
StandardsUL94 V-0
TerminationThrough Hole
Termination StyleThrough Hole
TypePCB Socket
Voltage Rating250 V
Wire Size20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5747299-23.9412441TE Connectivity / AMP Brand3.94 @ 10
Newark98AC52804.48191212AMP - TE CONNECTIVITY4.4 @ 819
WaldomTE CONNECTIVITY AMP BRAND 5747299-24.6526559TE CONNECTIVITY/AMP BRAND4.65 @ 13
Future Electronics61544055.124110TE Connectivity5.124 @ 10
TE Connectivity5747299-25.158411170TE Connectivity (TE)5.1584 @ 10
thumbzoomZoroG6010425746.061310Te Connectivity6.06 @ 13
thumbzoomswatee.com5747299-28.841389TE Connectivity8.84 @ 10
us.rs-online.com700417949.381910TE Connectivity9.3 @ 819
