- mpnEC2002B
- brandname: US Motors
- manufacturername: US Motors

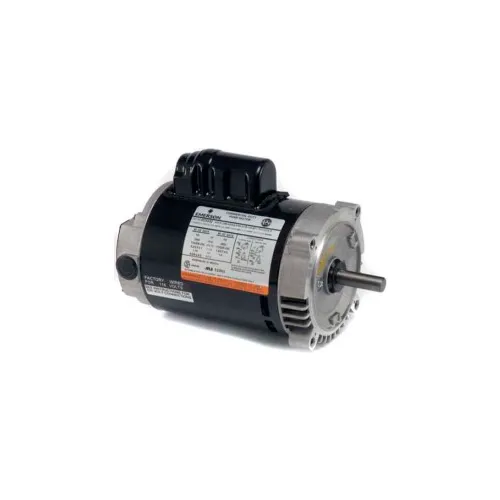

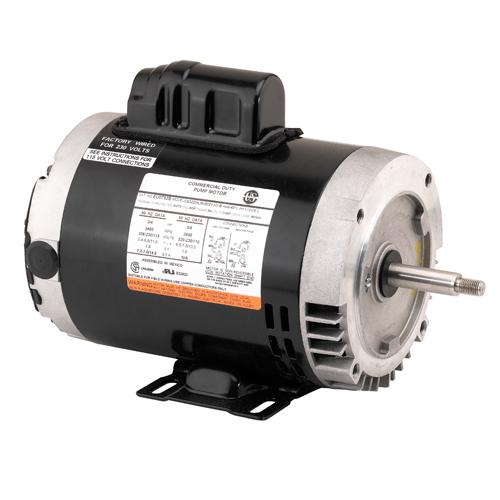

U.S. Motors US Motors Pump, 2 HP, 1-Phase, 3450 RPM Motor, EC2002B


- Brand: U.S. Motors
- PartNumber: EC2002B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
Key | Value |
---|
Amps | 19.6/10.7-9.8 |
Bearings | Ball |
Capacitor | 30MFD/370VAC |
Composition | Rolled Steel |
Construction | Rolled Steel |
Country of Origin (subj. | Mexico |
Drive End Flange Type | C-Face |
Enclosure | Open Drip Proof, Open |
Enclosure Type | ODP (Open Dripproof) |
Estimated Weight | 36.30 |
Family Series | US Motors Motors |
FL Amps | 19.6/10.7-9.8 |
Frame | 56C |
Frequency | 60 Hz |
Gross Weight | 33.9 lbs |
Hertz | 50, 60 |
Horsepower | 2 hp |
HP | 2 |
Hz | 50/60 |
Insulation Class | B |
Item | Motor,2HP,3450,2850RPM,. |
Item Number | EC2002B |
Kilowatts | 1.5 kW |
Manufacturer | US Motors (Nidec), US M. |
Manufacturer Model # | T063CLS1400013J |
Manufacturer Part Number | EC2002B |
Maximum Ambient Tempera. | 40? C |
Model Number | T063CLS1400013J |
Mounting | Foot Mount, Base/Face |
Mounting Type | C-Face, Rigid |
NEMA Frame | 56C |
Net Weight | 0 lbs |
Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
Number of Poles | 2 |
Number of Speeds | 1 |
Overload Protection | Automatic |
Part Number | EC2002B |
Phase | 1 |
Product Type | General Purpose, Capaci. |
Rotation | CCW Shaft End |
RPM | 3450, 3,450 RPM |
Service Factor | 1.25 |
Ship Weight | 33 lbs. |
Speed (RPM) | 3450 |
Thermal Protection | Automatic |
Voltage | 110-120V, 208V, 220V, 2. |
Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
Volts | 115, 208, 230 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Zoro | G0919841 | 420.0 | 1 | In Stock | | U.S. Motors | 33.0 | 420.0 @ 1 |
  | Global Industrial | WBB465290 | 544.0 | 1 | In Stock | 17 | US Motors | | 544.0 @ 1 |
  | emotorpro.com | EC2002B | 589.39 | 1 | In Stock | | U.S. Motors | 33.0 | 589.39 @ 1 |
  | motorsandcontrol.com | EC2002B | 600.92 | 1 | In Stock | | US Motors (Nidec) | 36.3 | 600.92 @ 1 |
  | National Supply Network | B465290 | 607.29 | 1 | In Stock | | US MOTORS | | 607.29 @ 1 |
  | Galco | EC2002B-USM | 615.23 | 1 | In Stock | | US Motors | 33.9 | 615.23 @ 1 |
| motionindustries.com | 04385308 | 787.45 | 1 | In Stock | | US Motors (Nidec) | | 787.45 @ 1 |
