- mpnEC3002
- brandname: US Motors
- manufacturername: US Motors

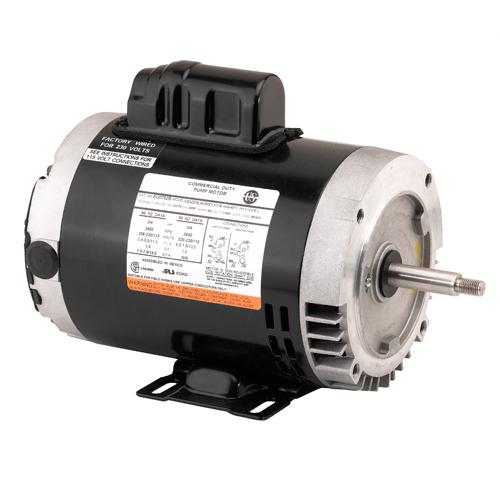

U.S. Motors US Motors Pump, 3 HP, 1-Phase, 3450 RPM Motor, EC3002
- Brand: U.S. Motors
- PartNumber: EC3002
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 14.0-12.8 |
| Bearings | Ball |
| Body Dia. | 6.6 in |
| Capacitor | 35MFD/370VAC |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 40.70 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| FL Amps | 14.0-12.8 |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 15.7-14.2 |
| Full Load Amps @ 50Hz | 15.7-14.2 |
| Gross Weight | 39.17 lbs |
| Hertz | 60 |
| Horsepower | 3 hp |
| HP | 3 |
| HP @ 50Hz | 3 |
| Hz | 60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Jet Pump Motor |
| Item Number | EC3002 |
| Kilowatts | 2.2 kW |
| Length Less Shaft | 10 7/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | T063CMK1414014J |
| Manufacturer Part Number | EC3002 |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | T063CMK1414014J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Auto |
| Mounting | Footless, Face |
| Mounting Type | C-Face |
| Nameplate RPM | 3,600 |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 87 % |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 12 7/8 in |
| Overload Protection | Automatic |
| Part Number | EC3002 |
| Phase | 1, Single |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | 3,600 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.15 |
| Service Factor @ 50Hz | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 in |
| Ship Weight | 37 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Recog. |
| Thermal Protection | Automatic |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208V, 230V, 208-230V AC |
| Voltage (AC) | 208-230 VAC |
| Voltage @ 50Hz | 208-230 |
| Voltage Compatibility | 115/208-230V AC, 200-23. |
| Volts | 208, 230 |
| Weight | 37 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3314284 | 438.0 | 1 | In Stock | | U.S. Motors | 39.0 | 438.0 @ 1 |
 | Global Industrial | WBB466561 | 646.0 | 1 | In Stock | | US Motors | | 646.0 @ 1 |
 | emotorpro.com | EC3002 | 665.44 | 1 | In Stock | | U.S. Motors | 37.0 | 665.44 @ 1 |
 | motorsandcontrol.com | EC3002 | 678.46 | 1 | In Stock | | US Motors (Nidec) | 40.7 | 678.46 @ 1 |
 | Galco | EC3002-USM | 694.62 | 1 | In Stock | | US Motors | 39.17 | 694.62 @ 1 |
 | National Supply Network | B466561 | 698.59 | 1 | In Stock | | US MOTORS | | 698.59 @ 1 |
| motionindustries.com | 04385280 | 889.05 | 1 | In Stock | | US Motors (Nidec) | | 889.05 @ 1 |
