- mpnEE733B
- brandname: US Motors
- manufacturername: US Motors

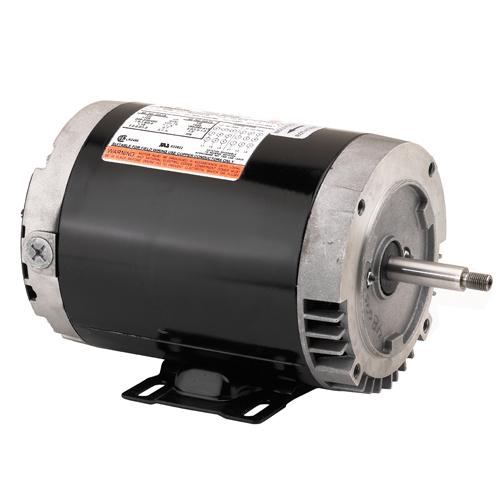

U.S. Motors US Motors Pump, 2 HP, 3-Phase, 3450 RPM Motor, EE733B
- Brand: U.S. Motors
- PartNumber: EE733B
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 6.1-5.6/2.8 |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 28.33 |
| Family Series | US Motors Motors |
| FL Amps | 6.1-5.6/2.8 |
| Frame | 56J |
| Frequency | 60 Hz |
| Gross Weight | 32.3 lbs |
| Hertz | 50, 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 50/60 |
| Insulation Class | B |
| Item | Motor,2HP,3450,2850RPM,. |
| Item Number | EE733B |
| Kilowatts | 1.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063TLK4880013J |
| Manufacturer Part Number | EE733B |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063TLK4880013J |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overload Protection | None |
| Part Number | EE733B |
| Phase | 3 |
| Product Type | Pump, Three Phase |
| Rotation | CCW Shaft End |
| RPM | 3450, 3,450 RPM |
| Service Factor | 1.25 |
| Ship Weight | 26 lbs. |
| Speed (RPM) | 3450 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0919954 | 484.0 | 1 | In Stock | | U.S. Motors | 25.75 | 484.0 @ 1 |
 | motorsandcontrol.com | EE733B | 602.8 | 1 | In Stock | | US Motors (Nidec) | 28.33 | 602.8 @ 1 |
 | Global Industrial | WBB466575 | 622.0 | 1 | In Stock | 17 | US Motors | | 622.0 @ 1 |
 | emotorpro.com | EE733B | 671.56 | 1 | In Stock | | U.S. Motors | 26.0 | 671.56 @ 1 |
 | National Supply Network | B466575 | 693.09 | 1 | In Stock | | US MOTORS | | 693.09 @ 1 |
 | Galco | EE733B-USM | 709.51 | 1 | In Stock | | US Motors | 32.3 | 709.51 @ 1 |
