Walter Tools 224604-UNC7/16

mpn224604-UNC7/16
brandname: WALTER PROTOTYP
manufacturername: WALTER PROTOTYP

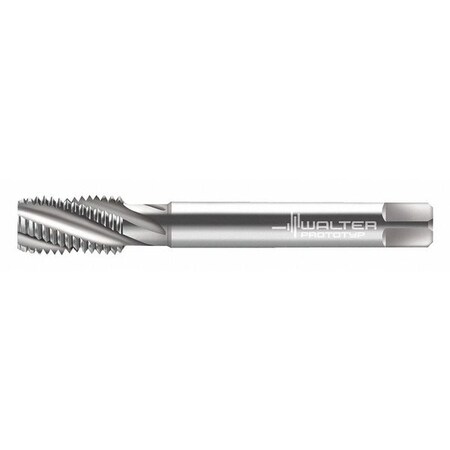

Walter Tools 224604-UNC7/16 Paradur HSS Machine Tap, Uncoated, 8 mm Shank Diameter, 20 mm Cutting Length, 100 mm Overall Length, 7/16-14 Size

Walter Tools 224604-UNC7/16 Paradur HSS Machine Tap, Uncoated, 8 mm Shank Diameter, 20 mm Cutting Length, 100 mm Overall Length, 7/16-14 Size

zoom

Brand: Walter Tools
PartNumber: 224604-UNC7/16
Model: 5078235
Size: 7/16-14
PackageQuantity: 1
Binding: Misc.
Manufacturer: Walter
Label: Walter

Attributes

Key	Value
55% Thread Drill Size	W
65% Thread Drill Size	V
75% Thread Drill Size	U
Class of Fit	3B
Coolant Fed	Non-Coolant Through
Country of Origin (subj.	India
Cutting Direction - Mac.	Right Hand
Drill Bit Size	0.3700 in
Extended Neck	Yes
Features	For Long Chipping Mater.
Helix Angle	25 Degrees
Item	Spiral Flute Tap
List Number	224604
Measurement System	Fractional Inch
Number of Flutes	4
Number of Pieces	1
Overall Length	3-15/16"
Pitch Diameter Limit	3B
Primary Material Applic.	Nickel, Titanium
Primary Material Applic.	S
Secondary Material Appl.	Steel
Secondary Material Appl.	P
Series	Paradur N
Shank Dia.	5/16"
Shank Length	24.00 mm
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Square Size	6.20mm
Standards	DIN 2184-1
Tap Chamfer	Plug
Tap Dimension Type	Inch
Tap Finish	Uncoated
Tap Material	High Speed Steel
Tap Shank Standard	DIN 2184-1
Tap Size	7/16"
Tap Style	Spiral Flute
Tap Thread Size	7/16"-14
Tap Thread Type	UNC
Thread Direction	Right Hand
Thread Length	13/16"
Thread Limit	H3, H4
Thread Limit / Class of.	H4 / 3B
Thread Size	7/16"-14
Thread Standard	UNC
Threads per Inch	14
