Winsmith E17MWNS, 20:1, 56C

B007IBKHPC

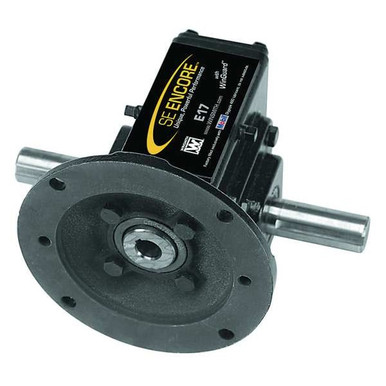

Speed Reducer, C-Face, 56C, 20:1

Speed Reducer, C-Face, 56C, 20:1zoom

Attributes

Key Value
BearingsWorm
Bore Dia.1", 5/8 in
BrandWinsmith
Current Stock8
Dimension A2.38 in
Dimension B4.63 in
Dimension C1.75 in
Dimension D3.88 in
Dimension F1.94 in
Dimension G0.56 in
Dimension H3/8-16
Dimension L3.44 in
DutyWashdown
FinishBlack Epoxy Coating Sys.
Frame56C
Gear TypeWorm
Housing MaterialCast iron
Input RPM1725, 1,725 RPM
International ShippingNo
ItemSpeed Reducer
LubricationMobil Glygoyle(R) 460
Max. Input HP0.75
Max. Output Torque482 in-lb, 482 in.-lb.
MountingUniversal
MpnE17MWNS, 20:1, 56C
Nominal Output RPM86, 86 RPM
Nominal Ratio20:1
Number of Stages1
Output Shaft Dia.1 in
Output Shaft Height2 1/8 in
Output Torque @ 1/2 HP321 in-lb
Output Torque @ 1/3 HP212 in-lb
Output Torque @ 1/4 HP161 in-lb
Output Torque @ 3/4 HP482 in-lbs
Overhung Load650 lb., 650 lb
RotationReversible
Shaft OrientationRight Angle
Single/Double Output/Un.Double Output
SKUZO-G0813976
Speed Reducer TypeC-Face
SubCategoryPower Transmission
Worm Center Distance1.75", 1.75 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0813976734.99113Winsmith21.55734.99 @ 1
thumbzoomsimsupply.comZO-G0813976852.5718Winsmith852.57 @ 1
grainger.caWWG4GAU9984.867935581In StockWINSMITH21.55984.86793558 @ 1
