Amphenol MS3102A28-12P

mpnMS3102A28-12P
brandname: Amphenol Industrial
manufacturername: Amphenol Industrial

Amphenol Industrial MS3102A28-12P Circular Connector Pin General Duty Non-Environmental Threaded Coupling Solder Termination Box Mounting Receptacle 28-12 Insert Arrangement 28 Shell Size 26 Contacts

Brand: Amphenol
PartNumber: MS3102A28-12P
Model: MS3102A28-12P
Size: 28-12 Insert Arrangement
PackageQuantity: 1
Binding: Misc.
Manufacturer: Amphenol
Label: Amphenol

Attributes

Key	Value
Alternate Part No.	654-MS3102A28-12P
Angle	Straight
Application	True MIL
Applications	Marine, Military
Backshell Material, Pla.	-
Brand	Amphenol Industrial
Cable Opening	1.625" (41.28mm)
Class	A
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Configuration	26#16
Contact Finish - Mating	Silver
Contact Finish Thicknes.	-
Contact Gender	Pin (Male)
Contact Material	Copper Alloy
Contact Plating	Silver
Contact Type	Pin
Current Rating	13 A
Current Rating (Amps)	-
Dielectric Material	Neoprene
Fastening Type	Threaded
Features	-
Gender	Panel Socket
Housing Finish	Olive Drab Cadmium
Housing Material	Aluminum Alloy
Housing Type	Metal
Ingress Protection	-

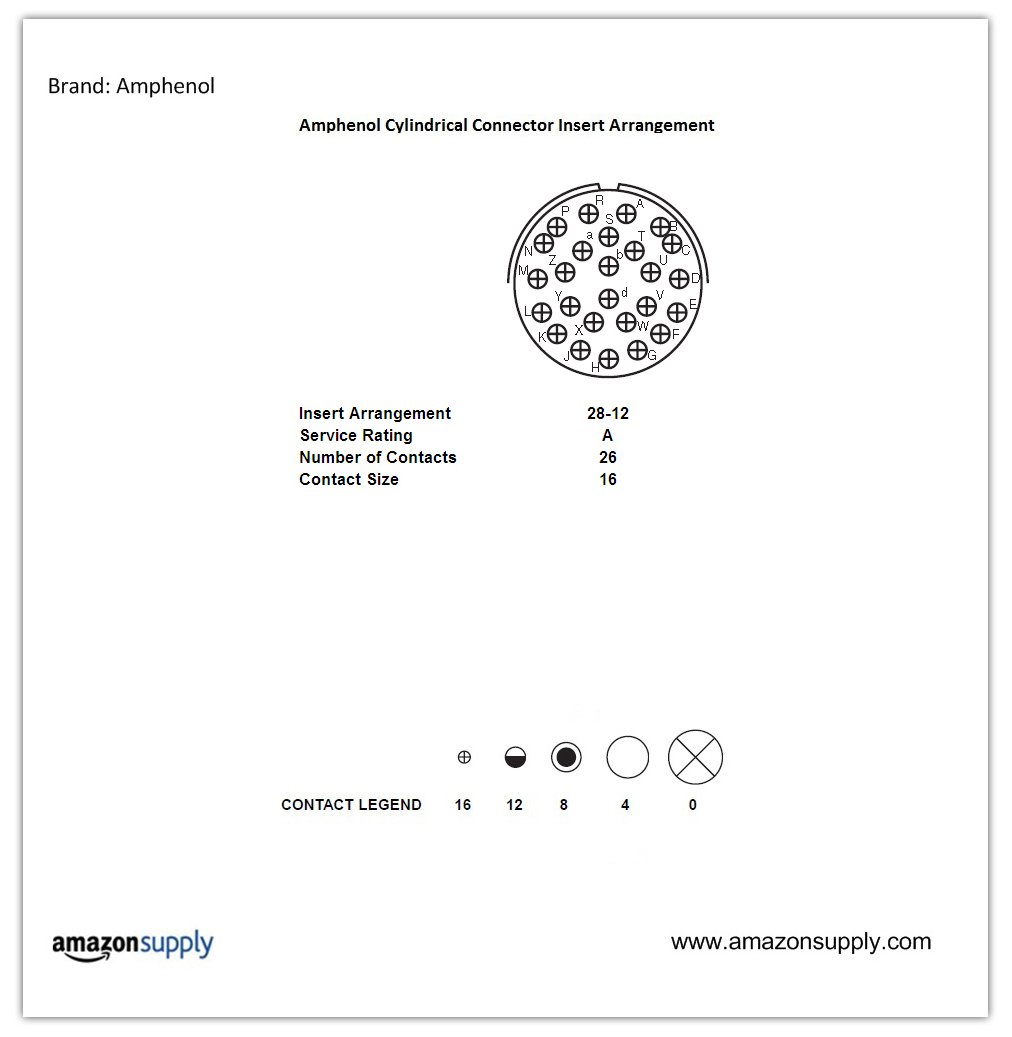

Insert Arrangement	28-12
Insert Material	Neoprene
Keyed Position	N (Normal)
Manufacturer	Amphenol
Manufacturer Part No.	MS3102A28-12P
Material Flammability R.	-
Mating Type	Threaded
Mfr	Amphenol Industrial Ope.
MIL Type	MIL-DTL-5015
Mounting Angle	Straight
Mounting Feature	Flange
Mounting Hole Diameter	0.147 "
Mounting Style	Panel
Mounting Type	Flange Mount, Panel Mou.
Number of Contacts	26
Number of Positions	26
Operating Temperature	-55?C ~ 125?C
Orientation	N (Normal)
Packaging	Bulk
Part # Aliases	MS31O2A28-12P
Part Status	Active
Primary Type	MIL/Aero
Product Category	Circular MIL Spec Conne.
Product Type	Receptacles
Series	MS 5015, MS 5015 Series
Shell Finish	Olive Drab Chromate ove.
Shell Material	Aluminum Alloy
Shell Plating	Olive Drab Chromate ove.
Shell Size	28
Shell Size - Insert	28-12
Shell Size, MIL	-
Shell Style	Box Mount
Shielding	Unshielded
Special Features	Single Key/Keyway Shell.
Strain Relief	Solid
Termination	Solder, Solder Cup
Termination Style	Solder
Tradename	5015
Type	5015 MIL Spec
Voltage Rating	700 V, -, 500 ; 700 V
Wire Gauge	16-20
Wire Size	16

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Amazon	B007XZ6C7U	7.9	1	In Stock		Amphenol	7.9 @ 1
Federal Connectors	MS3102A2812P@AMPHENOL	29.0	1	37		Amphenol	29.0 @ 1
Onlinecomponents.com	MS3102A28-12P	32.09	1	44		Amphenol IO	32.09 @ 1
Hotenda	H1041990	33.56	1	In Stock		Amphenol Industrial	33.56 @ 1
us.rs-online.com	70010022	54.58	1	19		Amphenol Industrial	54.58 @ 1
Electronic Connector Co	MS3102A28-12P	55.46	1	In Stock		AMPHENOL INDUSTRIAL	55.46 @ 1
swatee.com	MS3102A28-12P	59.84	1	195		Amphenol	59.84 @ 1
AmazonTP	B00MEK9Q5Y	65.0	1	In Stock	1	Amphenol	65.0 @ 1
Newark	75X2295	67.48	1	29		AMPHENOL INDUSTRIAL	67.48 @ 1
Digi-Key	AMS3102A28-12P-ND	79.44	1	In Stock		Amphenol Industrial Operations	79.44 @ 1
