Cle-line C20556

mpnC20556
brandname: Cle-Line
manufacturername: Cle-Line

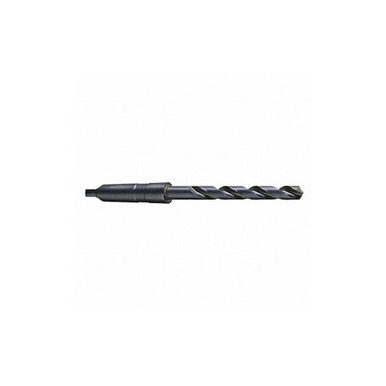

Cle-Line C20556 General Purpose Taper Shank Drill, High Speed Steel, Steam Oxide Finish, No.3 Morse Taper Shank, 118-Degree Radial Point, 7/8" Drill Diameter

Brand: Cle-line
PartNumber: C20556
Model: C20556
Color: Black
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Application	General Purpose Drilling
Brand	Cle-Line
Color	Black
Coolant Fed	Non-Coolant Through
Current Stock	9
Cutting Depth	6-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.8750
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.8750"
Diameter (Fraction)	7/8"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Size	7/8 in
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.875 in
Drill Size - Fraction	7/8 in
Drill Size System	Fractional
Drill Style	Taper Shank Drill
Finish	Black Oxide
Flute Length	6 1/8 in, 6-1/8 in, 6.1.
Flute Length (Metric)	155.57mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
International Shipping	No
Item	Taper Shank Drill Bit
Lead Time	Expected to ship in 1-2.
Material	HSS, High Speed Steel
Maximum Drilling Depth	6 1/8 in
Mpn	C20556
Number of Flutes	2
Overall Length	10.7500", 1 3/4 in, 10-.
Overall Length (Metric)	273.05mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Series	1894
Shank Configuration	#3 Morse Taper
Shank Length	4.6250"
Shank Length (Metric)	117.47mm
Shank Taper Designation	#3 Morse Taper
Shank Type - Machining	Taper
SKU	ZO-G4952921
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1894
SubCategory	Machining
Surface Condition	Steam Oxide
Taper Shank Size	MT3
Through Coolant (Yes/No)	No
Tool Size	7/8"
Type	General Purpose Regular.
UPC	697334205562

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Global Industrial	WBB2544162	39.95	1	In Stock	Cle-Line		39.95 @ 1
usmegastore.com	C20556	41.06	1	In Stock	Cle-Line		41.06 @ 1
Megadepot	C20556	41.31	1	In Stock	Cle-Line		41.31 @ 1
heavydutydepot.com	C20556	41.31	3	In Stock	Cle-Line		41.31 @ 3
Amazon	B00J9M2VRU	45.33	1	In Stock	Cle-line		45.33 @ 1
Zoro	G4952921	46.79	1	14	Cle-Line	1.32	46.79 @ 1
MRO Supply	6123871	46.95	2	In Stock	Cle-Line		46.95 @ 2
simsupply.com	ZO-G4952921	61.7	1	9	Cle-Line		61.7 @ 1
