CLEVELAND C14321

mpnC14321
brandname: CLEVELAND
manufacturername: CLEVELAND

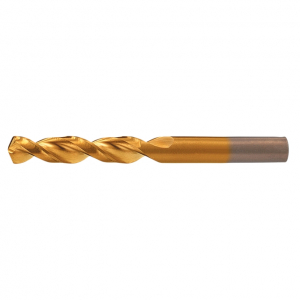

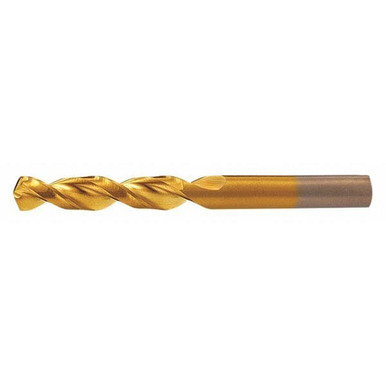

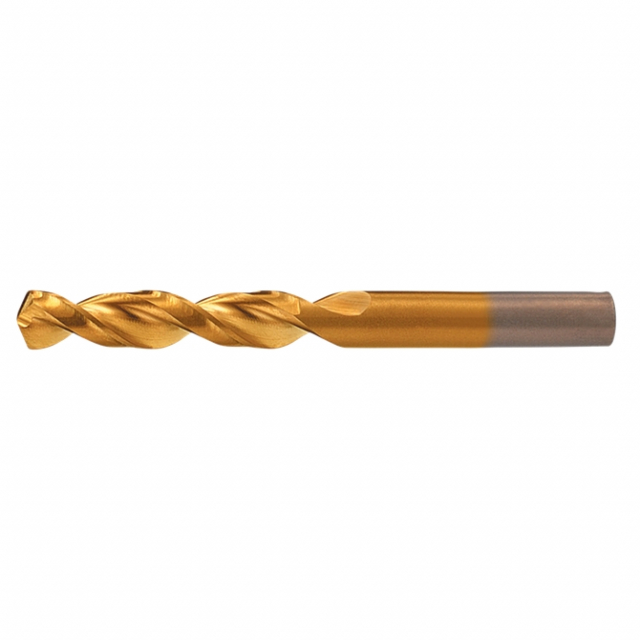

Cleveland 2175T Cobalt Steel Jobbers' Length Drill Bit, TiN Coated, Round Shank, 135 Degree Notch Point, 1/16" (Pack of 10)

Brand: CLEVELAND
PartNumber: C14321
Model: C14321
Size: 1/16"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Chilled Cast Iron, High.
Bit Dia.	1/16"
Brand	Cleveland
Construction:	Wide Land Parabolic
Coolant Fed	Non-Coolant Through
Current Stock	9
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.0625
Decimal Equivalent:	0.0625"/ 1.59mm
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Diameter Fractional:	1/16"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiN
Drill Bit Grouping	Individual, Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees, 135 Degre.
Drill Bit Point Type	Split Point
Drill Bit Size	1/16 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0129 in
Drill Size - Decimal In.	0.0625 in
Drill Size - Fraction	1/16 in
Drilling Length	5/8"
Finish	TiN Coated
Finish - Machining	TiN
Flute Length	5/8 in
Flute Type	Parabolic, Right Spiral.
Hand of Spiral Cut:	RHS/RHC
Helix Angle	40 Degrees
International Shipping	No
Item	Screw Machine Drill Bit
Length of Flute:	0.6250"/ 15.88mm
List Style:	2175-TN
Material	M42 HSS-Co 8, HSS-CO 8%.
Material - Machining	Cobalt
Material Grade - Machin.	M42
Material:	Cobalt
Maximum Drilling Depth	5/8 in
Measurement System	Fractional Inch
Mpn	C14321
Number of Flutes	2
Overall Length	1-5/8 in, 1 5/8 in
Overall Length:	1.6250"/41.27mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Primary Material Applic.	Steel
Primary Material Applic.	P
Series	2175-TN
Shank Dia.	1/16 in
Shank Length	1 in
Shank Size	1/16 in Dia x 1 in L, 1.
Shank Size:	0.0625"/ 1.59mm
Shank Type	Straight
Shank Type - Machining	Straight
Shank:	Straight
Sizes Included	1/16"
SKU	ZO-G2997467
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2175-TN
SubCategory	Machining
Surface Condition	TiN
Surface Condition:	TiN
Tool Size	1/16"
Type	High Performance
UPC	697334143215

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
MRO Supply	6110813	5.2	7	10	Cleveland	5.2 @ 10
Megadepot	C14321	5.47	1	10	Cleveland	5.47 @ 10
Zoro	G2997467	5.75	1	10	Cleveland	5.75 @ 10
usmegastore.com	C14321	6.27	1	10	Cleveland	6.27 @ 10
Grainger	439P35	8.14	1	10	CLEVELAND	8.14 @ 10
simsupply.com	ZO-G2997467	12.53	1	10	Cleveland	12.53 @ 10
