CLEVELAND C14323

mpnC14323
brandname: CLEVELAND
manufacturername: CLEVELAND

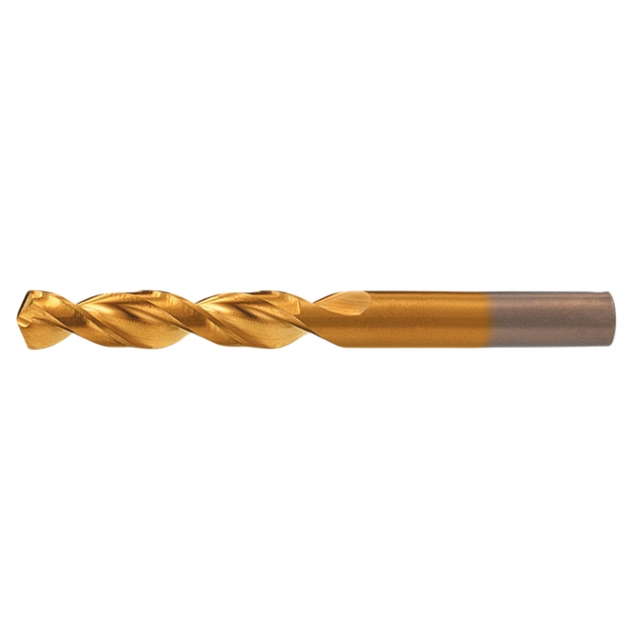

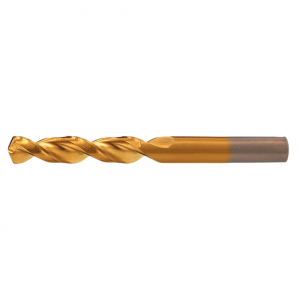

Cleveland 2175T Cobalt Steel Jobbers' Length Drill Bit, TiN Coated, Round Shank, 135 Degree Notch Point, 3/32" (Pack of 10)

Cleveland 2175T Cobalt Steel Jobbers

zoom

Brand: CLEVELAND
PartNumber: C14323
Model: C14323
Size: 3/32"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Chilled Cast Iron, High.
Bit Dia.	3/32"
Brand	Cleveland
Construction:	Wide Land Parabolic
Current Stock	8
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.0938
Decimal Equivalent:	0.0938"/2.38mm
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Diameter Fractional:	3/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiN
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	3/32 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0194 in
Drill Size - Decimal In.	0.0938 in
Drill Size - Fraction	3/32 in
Drilling Length	3/4"
Finish	TiN Coated
Flute Length	3/4 in
Flute Type	Parabolic, Right Spiral.
Hand of Spiral Cut:	RHS/RHC
International Shipping	No
Item	Screw Machine Drill Bit
Length of Flute:	0.7500"/ 19.05mm
List Style:	2175-TN
Material	M42 HSS-Co 8, HSS-CO 8%.
Material:	Cobalt
Maximum Drilling Depth	3/4 in
Mpn	C14323
Number of Flutes	2
Overall Length	1 3/4 in, 1-3/4 in
Overall Length:	1.7500"/44.45mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Series	2175-TN
Shank Dia.	3/32 in
Shank Length	1 in
Shank Size	3/32 in Dia x 1 in L, 3.
Shank Size:	0.0938"/2.38mm
Shank Type	Straight
Shank:	Straight
Sizes Included	3/32"
SKU	ZO-G2997458
Style	2175-TN
SubCategory	Machining
Surface Condition	TiN
Surface Condition:	TiN
Tool Size	3/32"
Type	High Performance
UPC	697334143239

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110815	5.26	7	10		Cleveland		5.26 @ 10
	Megadepot	C14323	5.52	1	10		Cleveland		5.52 @ 10
	Zoro	G2997458	6.15	1	14		Cleveland		6.15 @ 10
	usmegastore.com	C14323	6.32	1	10		Cleveland		6.32 @ 10
	sustainablesupply.com	C2767339	6.79	1	10		Cleveland		6.79 @ 10
	simsupply.com	ZO-G2997458	14.8	1	10		Cleveland		14.8 @ 10
