- mpnAP041208
- brandname: Eemax
- manufacturername: Eemax

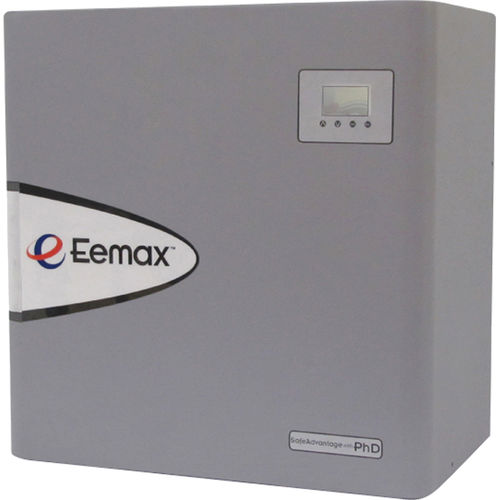

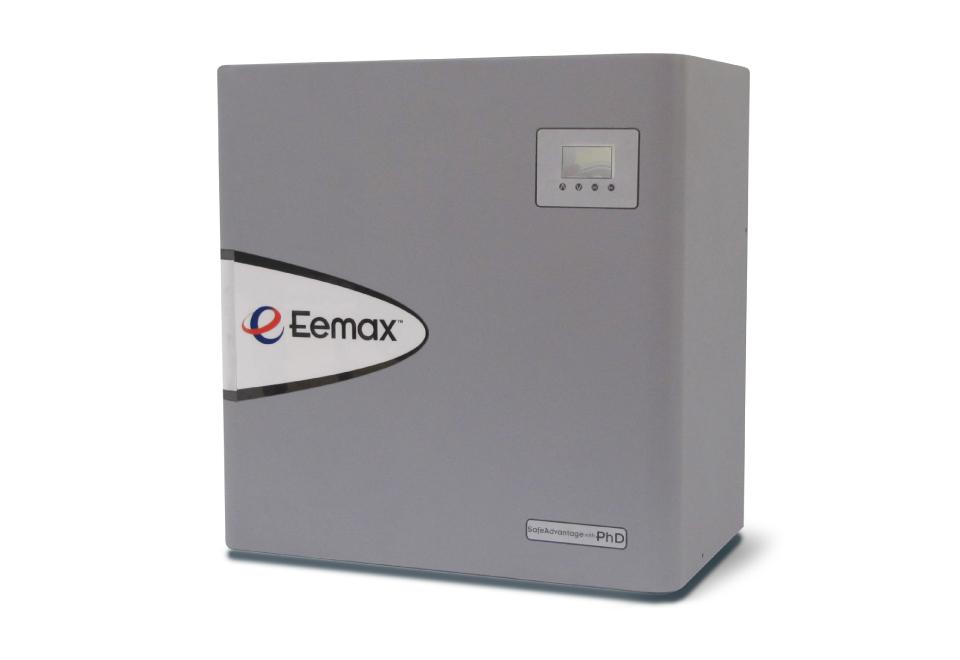

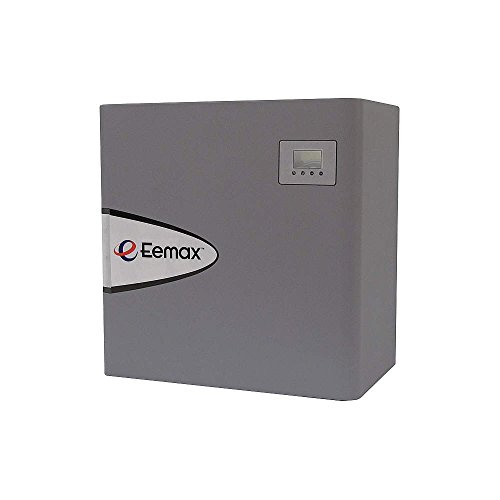

Eemax AP041208 41KW 208V Tankless Water Heater
- Brand: Eemax
- PartNumber: AP041208
- Model: AP041208
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: StandardPlumbing: Kohler
- Label: StandardPlumbing: Kohler
Attributes
| Key | Value |
|---|
| AMP | 113 |
| Amperage | 112 amps |
| Amps AC | 113.9 |
| ANSI Specifications | ANSI 372 |
| Application | Commercial, Industrial,. |
| BTU | 139898 |
| CARB OTC LEED Compliant | No |
| Collection | SpecAdvantage? |
| Color | Slate |
| Color Finish | Slate Grey |
| Color Finish Category | Greys |
| Commercial / Residential | Commercial |
| Connection Size | 1-1/4" |
| Connection Type | NPT |
| Control Type | Digital Display with Ke. |
| Cord Conductor Gauge | 2 AWG Wire |
| Country of Origin (subj. | United States |
| Current | 113 A |
| Default Temperature | 120 Degrees F |
| Depth | 10", 10-1/4 in, 10-9/32" |
| Electrical Voltage | 208 Volt |
| Element Material | Non-Ferrous Metal |
| Elements | Lead-Free Replaceable C. |
| End Connection 1 | NPT |
| End Connection 2 | NPT |
| End Connections | NPT x NPT |
| Energy Factor | 0.94 |
| Energy Star Compliant | No |
| Features | Fine Tuned Control Boar. |
| Fitting Size 1 | 1-1/4 in |
| Fitting Sizes | 1-1/4 in |
| Flow Rate | 40 gpm, 30 gpm |
| GSA Approved | No |
| Height | 17-27/64", 17", 17-5/8 . |
| Housing Material | Aluminum |
| Housing Material Finish | Powder Coated |
| IAPMO Listed | No |
| Indoor Outdoor | Indoor |
| Installation Type | Wall Mount |
| Item | Electric Tankless Water. |
| Lead Law Compliant | Yes |
| Length | 10-3/10 in |
| Low Pressure | 35 |
| Manufacturer | EEMax |
| Market | Commercial, Industrial |
| Max. Flow Rate | 40 gpm |
| Maximum Delivered Tempe. | 140 Degrees F |
| Maximum Flow Rate | 40 gpm |
| Maximum Pressure | 150 psi |
| Maximum Temperature | 120 |
| Maximum Water Pressure | 150 psi |
| Min. Flow Activation | 1 gpm |
| Minimum Delivered Tempe. | 80 Degrees F |
| Minimum Flow Activation | 1 gpm |
| Minimum Water Pressure | 35 psi |
| Modus Operandi | AC Electrical |
| Mounting | Vertical |
| NSF Certified | Yes |
| NSF Specifications | NSF 372 |
| Operating Voltage | 208V AC |
| Origin | Domestic |
| Phase | 3, Three Phase |
| Power Consumption | 41,000 W |
| Power Source | Electric |
| Pressure Range | 150 psi |
| Product | Water Heater |
| Promotion Restriction | Not eligible for promot. |
| Residential / Commercial | Commercial |
| Standards | UL 499, CSA |
| Supply Pipe Connection | 1-1/4 in |
| Temp. Range | 100 Degrees to 140 Deg. |
| Temp. Rise @ 1.5 GPM | 186 Degrees F |
| Temp. Rise @ 2.5 GPM | 112 Degrees F |
| Temp. Rise @ 20.0 GPM | 14 Degrees F |
| Temp. Rise @ 4.0 GPM | 70 Degrees F |
| Temp. Rise @ 6.0 GPM | 46 Degrees F |
| Temp. Rise @ 8.0 GPM | 35 Degrees F |
| Temperature Range | 80 to 120 Deg F |
| Temperature Rise @ Flow | 11 Degrees F @ 26 gpm, . |
| Type | Electric Tankless Water. |
| UL Listed | UL 499 |
| Use | Commercial & Industrial |
| Voltage | 208VAC |
| Volts | 208V |
| Water Connection | 1-1/4" NPT |
| Water Connection Locati. | Bottom |
| Water Heater Application | General Purpose |
| Water Heater Design | Point-of-Use |
| Water Heater Type | On-demand |
| Watts | 41 |
| Weight | 112 |
| Width | 26", 26-11/64", 26-1/8 . |
| Wire Gauge | 2 ga |
| Wire Size | 2 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | PlumbersStock | 446715 | 6331.99 | 1 | In Stock | | Eemax | 75.0 | 6331.99 @ 1 |
| ferguson.com | 4720267 | 6482.37 | 1 | In Stock | | Eemax | | 6482.37 @ 1 |
 | citysupplygroup.com | AP041208 | 6482.37 | 1 | In Stock | | Eemax | | 6482.37 @ 1 |
 | Zoro | G3480751 | 6811.16 | 1 | In Stock | 25 | Eemax | 90.0 | 6811.16 @ 1 |
 | sustainablesupply.com | C2981679 | 8343.78 | 1 | In Stock | | Eemax | 90.0 | 8343.78 @ 1 |
 | Raptor Supplies | AF9TLZ | 11948.5274805 | 1 | In Stock | | EEMAX | | 11948.5274805 @ 1 |
