Genteq 5KCP39DFBA81S

mpn3202HS
brandname: Genteq
manufacturername: Genteq

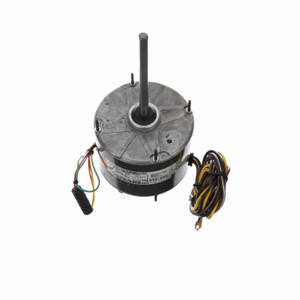

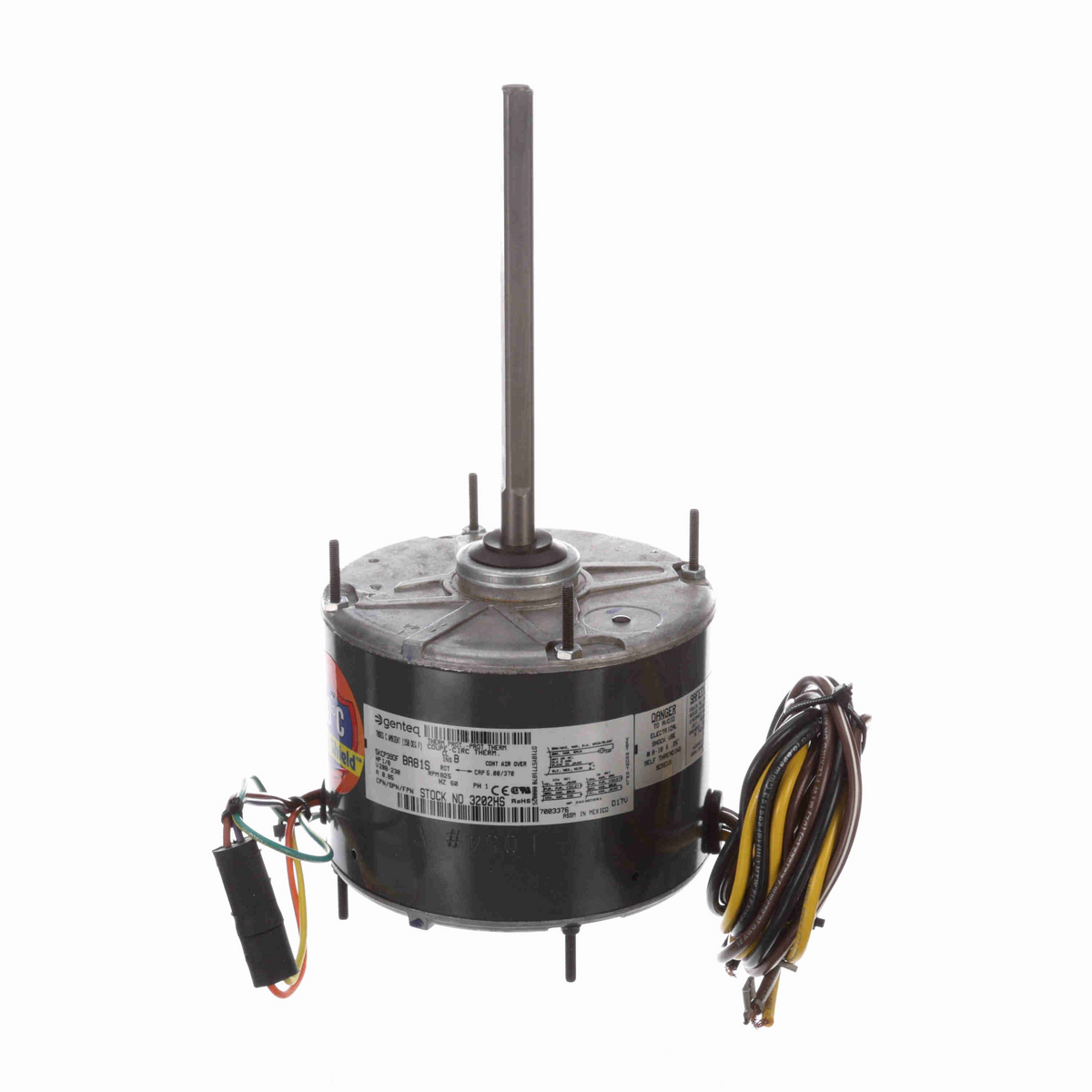

Condenser Fan Motor, 1/8 HP, 825 RPM, 60 Hz

Condenser Fan Motor, 1/8 HP, 825 RPM, 60 Hz

zoom

Brand: Genteq
PartNumber: 5KCP39DFBA81S
Model: 3202HS
PackageQuantity: 1
Manufacturer: GENTEQ
Label: GENTEQ

Attributes

Key	Value
Amps	0.85
Bearings	Ball
Brand	Genteq
C-Dimension (In.)	11.21
Capacitor	5MFD/370VAC
Catalog Number	3202HS
CE	Y
CSA	Y
DE Bearing Type	Ball
DEM Reference	3202HS
Duty	Continuous Air Over
Electrical Type	Permanent Split Capacit.
Enclosure	Totally Enclosed Air Ov.
Enclosure Type	TEAO (Totally Enclosed .
Frame	48
Frame Material	Rolled Steel
Frequency	60
HP	1/8
Insulation Class	B
IP Code	-
KVA Code	-
Max Ambient	70?C
Maximum Ambient Tempera.	70? C
Motor Orientation	Any
Mounting	Band/Stud
Mounting Orientation	All Angle
Mounting Type	Round Belly Band
Notes	Quick connects on capac.
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	11.21"
Phase	1
Product Category	HVAC/R Motors > Conden.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	825
Service Factor	1
Shaft Diameter (In.)	0.500
Shaft Extension (In.)	6.50
Shaft Type	Double Flat
Ship Weight	10 lbs.
Speeds	1
Type of Overload Protec.	Thermally Protected
UL	Recognized
Volts	208, 230, 208-230

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B00AOAI0GW	136.99	1	In Stock	2	GENTEQ		136.99 @ 1
	emotorpro.com	3202HS	185.8	1	In Stock		Genteq	10.0	185.8 @ 1
	Dreisilker	GE-RBC-3202HS	191.33	1	In Stock		Genteq		191.33 @ 1
