Hubbell DS420OW

mpnDS420OW
brandname: Hubbell
manufacturername: Hubbell

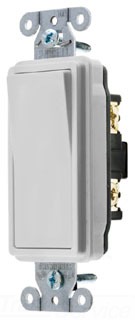

Hubbell DS420OW Decorator Switch, 4 Way, 20 amp, 120/277V, Office White

Hubbell DS420OW Decorator Switch, 4 Way, 20 amp, 120/277V, Office White

zoom

Brand: Hubbell
PartNumber: DS420OW
Model: DS420OW
Color: See Image
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: HUBBELL
Label: HUBBELL

Attributes

Key	Value
Action	DPDT
Amperage	20 A
Approvals	CSA, UL
Connectivity	Back and Side Wired
Current	20 A
Current / amperage rati.	20 A
Current rating	20 A
Dielectric strength	Withstands 1500V AC min.
Dimensions	4.28 in x 1.73 in x 1.6.
Family Series	Hubbell Switches
Grade	Specification
Gross Weight	0.2 lbs
Grounding	Self
Height	1.67 in
HP @ 120 VAC	1 hp
HP @ 240 VAC	2 hp
Illuminated	No
Industry Standard(s)	UL Listed
Item Number	DS420OW
Length	4.28 in
Locking	No
Manufacturer	Hubbell
Manufacturer Part Number	DS420OW
Material	Thermoplastic
Max Temperature Rise	30C maximum at rated cu.
Mounting Screw Type	Thread Cleaning Captive
Net Weight	0 lbs
Number of poles	Double pole
Operating temperature	Maximum continuous 75C .
Operator	Rocker
Operator Color	White
Style	Four way
Switch Configuration	Four way
Switch type	Four way
Temperature	-40-167 ?F
Voltage	120-277 VAC, 120 VAC, 2.
Width (in)	1.73
Wire Range	#14 to #10 AWG Solid an.
Wire size	#14 AWG to #10 AWG
Wiring	Back and Side Wired

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	gordonelectricsupply.com	DS420OW	19.07	1	In Stock		HUBBELL		19.07 @ 1
	Onlinecomponents.com	DS420OW	51.47	1	In Stock		Hubbell		51.47 @ 1
	MRO Supply	1017436	67.29	1	In Stock		Hubbell Wiring		67.29 @ 1
	Galco	DS420OW-HBBL	69.26	1	In Stock		Hubbell	0.2	69.26 @ 1
	Newark	93Y4105	92.79	1	In Stock		HUBBELL WIRING DEVICES		92.79 @ 1
