Leeson 101647.00

B00EPKQ42E

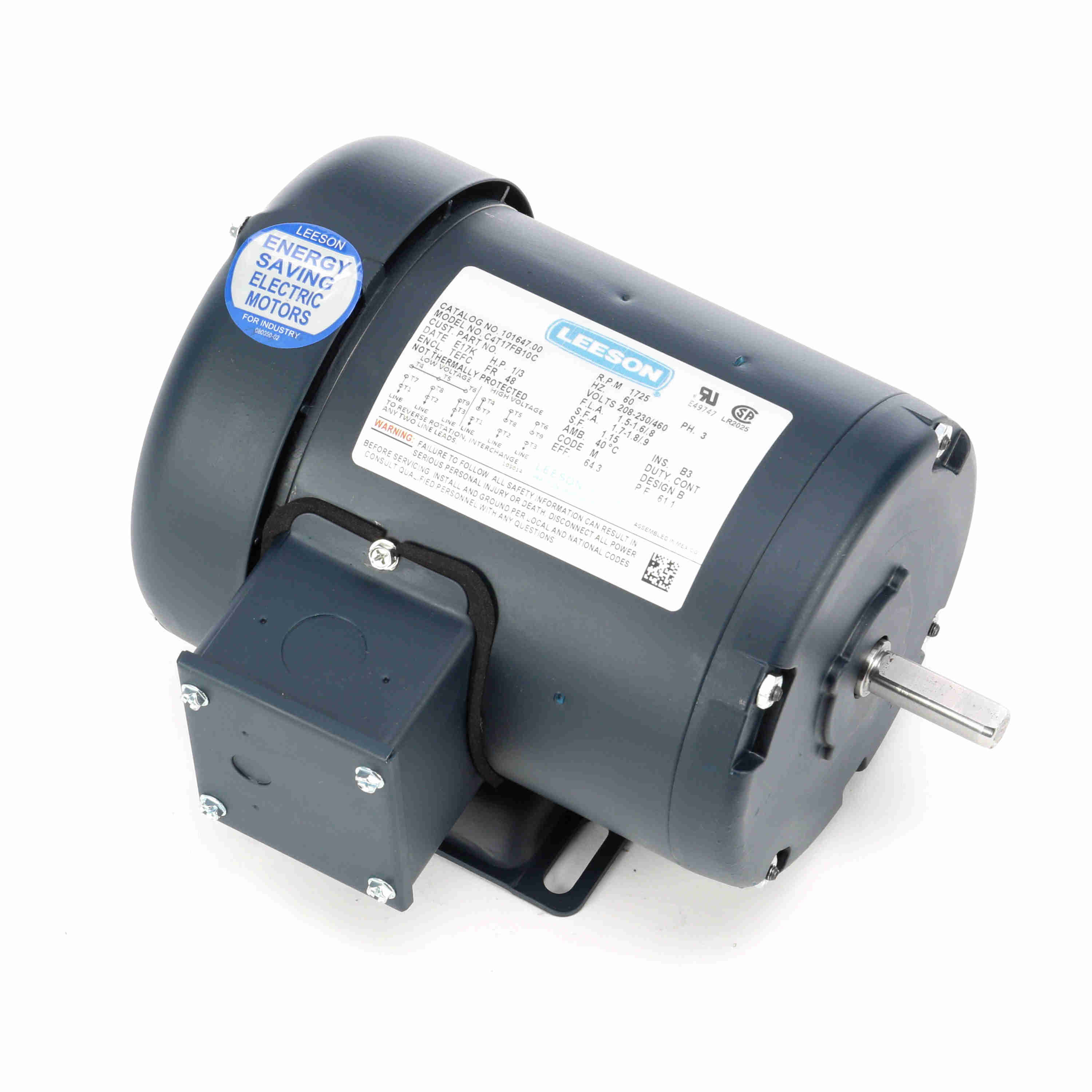

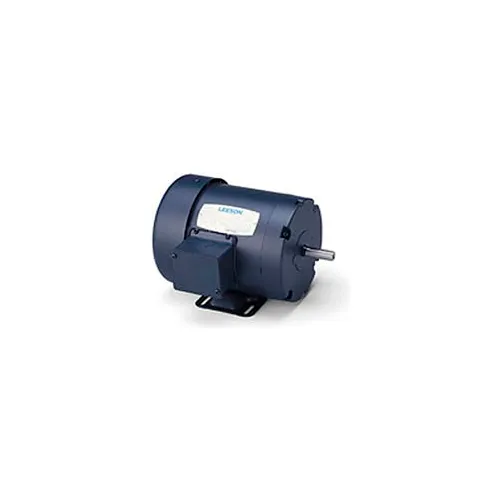

Leeson 101647.00 General Purpose Motor, 3 Phase, 48 Frame, Rigid Mounting, 1/3HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 101647.00 General Purpose Motor, 3 Phase, 48 Frame, Rigid Mounting, 1/3HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C4T17FB10C
Amperage Rating1.7 to 1.8/0.9 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC4T17FB10
CompositionSteel
ConstructionRolled Steel
CT Speed Range2:1
Current Rating1.5 to 1.6 ; 0.80 A
Description:1/3HP..1725RPM.48.TEFC..
Dimensions9.31 in L x 7.39 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency64.3, 64.3 %
Efficiency %64.3 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight21.00
Family SeriesLeeson Motors, Three Ph.
FL Amps1.5-1.6/.8
FL Efficiency64.3
Frame48
Frame MaterialRolled Steel
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight15.61 lbs
Hertz60
Horsepower1/3 hp, 0.33 HP
Horsepower Rating0.33 HP
HP0.33
Hz60
Insulation ClassB, Class B
Insulation TypeClass B
Item ConditionFACTORY NEW
Item Number101647.00
KW0.25
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number101647.00
MaterialRolled Steel
MFG Part #:101647.00
Model NumberC4T17FB10
MountingFoot Mount
mountingRigid Base
Mounting TypeRigid, Foot Mount, Rigi.
NEMA Frame48
Net Weight15.61 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length9.31 "
Part Number101647.00
Phase3, 3 Phase
Product SeriesThree Phase TEFC
Product TypeGeneral Purpose
RotationSelective CCW
RPM1725 RPM, 1,800 RPM, 17.
Service Factor1.15, 1.149
Shaft Diameter0.500, UL;CSA
Shaft Length1.5
Shaft Size1/2 in Dia
Special FeaturesService Factor - 1.15, .
Speed1725 RPM
Speed (RPM)1725
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720005866
UPC:691720005866
Voltage208-230/460, 208V, 230V.
Volts208/230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com101647223.01In StockLeeson223.0 @ 1
AmazonTPB0773TSKGV284.171In Stock3Leeson Electric284.17 @ 1
thumbzoomMRO Supply2525091302.31In StockLeeson302.3 @ 1
thumbzoomcshincorporated.com101647.00308.71In StockLeeson16.0308.7 @ 1
thumbzoomDealers Electric101647.00377.51In StockLeeson16.0377.5 @ 1
thumbzoomGlobal IndustrialWBB221785379.951In StockLeeson379.95 @ 1
us.rs-online.com72239333412.791In StockLeeson412.79 @ 1
thumbzoommotorsandcontrol.comLE-101647.00414.64176Leeson Electric21.0414.64 @ 1
thumbzoomGalco101647.00-LEES417.421In StockLeeson15.61417.42 @ 1
kscdirect.comLEE 101647.00433.341In StockLEESON ELECTRIC CORPORATION433.34 @ 1
thumbzoomcbtcompany.com101647.00459.361In StockLeeson Electric459.36 @ 1
thumbzoomWalker Industrial101647-00469.931In Stock17Leeson469.93 @ 1
thumbzoompumpproducts.com101647.00562.481In StockLeeson562.48 @ 1
thumbzoomRaptor SuppliesAJ2PLY590.95524151In StockLEESON590.9552415 @ 1
