Marathon Electric GT1054

B006KM7HPI

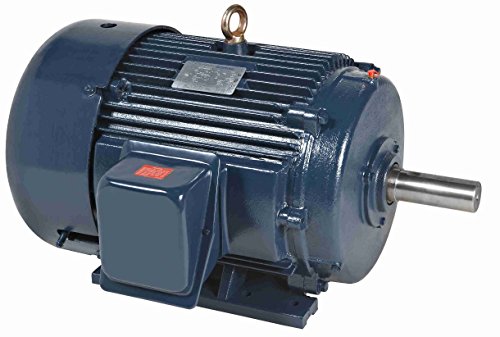

Marathon GT1054 447TS Frame 447TSTFC16004 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 200 hp, 3600 RPM, 1 Speed, 460 VAC

Marathon GT1054 447TS Frame 447TSTFC16004 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 200 hp, 3600 RPM, 1 Speed, 460 VACzoom

Attributes

Key Value
Amps215 A
BearingsBall
Duty CycleContinuous
Efficiency95.4%
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Frame447TS
frame material:Cast Iron
frame size:447TS
frequency rating:60 Hz
full load current:215.00 A
full load efficiency:95.40 %
HP200
Hz60
Insulation ClassF
ip rating:43
Manufacturer Model #447TSTFC16004
Maximum Ambient Tempera.40? C
motor horsepower:200 hp
motor phase:3 ph
motor supply voltage:460 V
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Rigid Base
Number of Speeds1
Overall Length52.17"
overall length (c-dimen.52.17 in
Phase3
Product Type3 Phase
RotationReversible
RPM3585
Service Factor1.15
service factor:1.15
Shaft Diameter2-3/8"
shaft diameter:2.38 in
Shaft Length4.75"
Ship Weight2436 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Volts460
weight:2436 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com0473836112632.771In StockMarathon Electric12632.77 @ 1
emotorpro.comGT105414274.431In StockMarathon2436.014274.43 @ 1
