Marathon U506

mpnU506
brandname: MARATHON
manufacturername: MARATHON

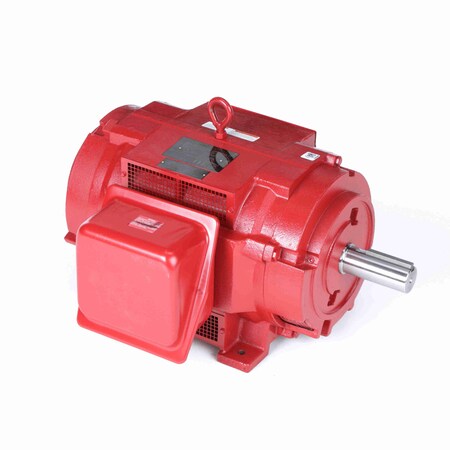

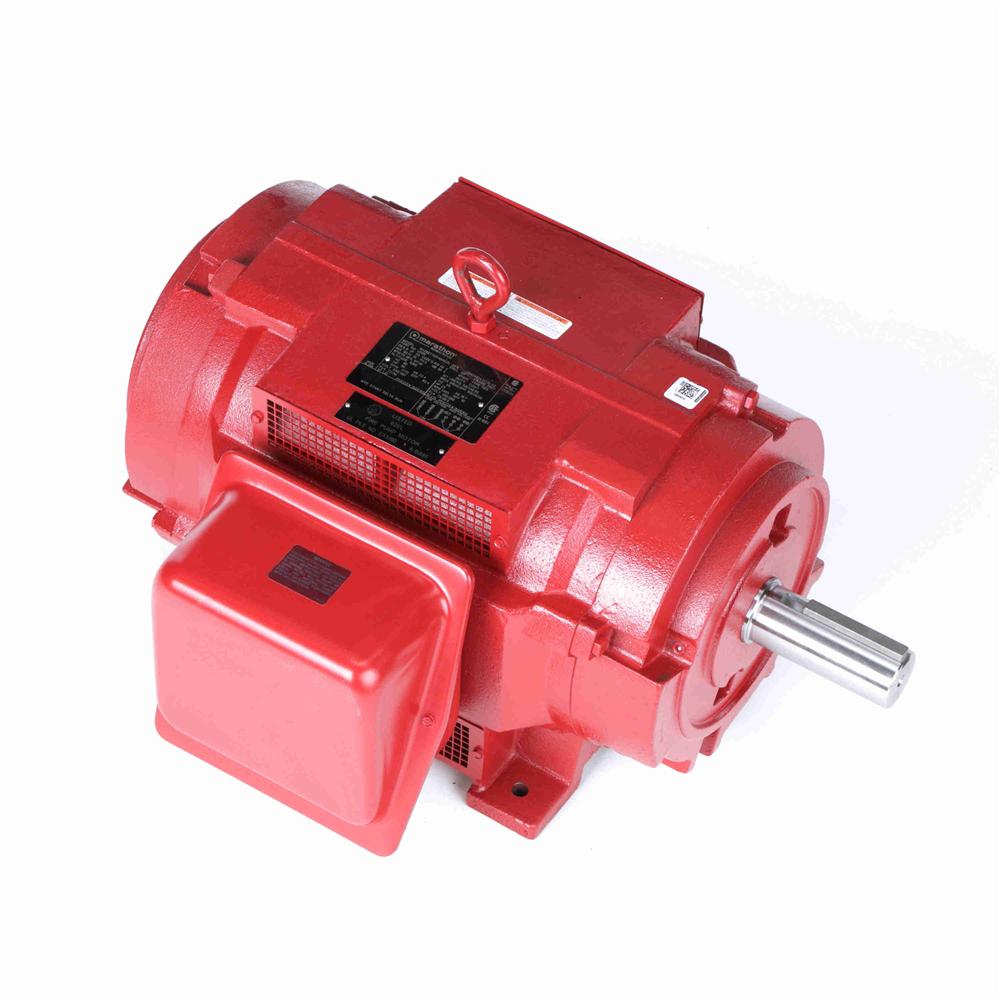

Marathon U506 Pump Motor

Marathon U506 Pump Motor

zoom

Brand: Marathon
PartNumber: U506
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Amps	72/36
Approvals	CE, CSA
Bearing Type	Ball
Bearings	Ball
Composition	Cast Iron
Country of Origin (subj.	United States
Duty Cycle	Continuous
Efficiency	0.924
Efficiency %	92.4 %
Enclosure	ODP, Drip Proof
Enclosure Material	Iron
Enclosure Type	ODP (Open Dripproof)
Family Series	Marathon Electric Motors
Frame	286T
Frequency	50 Hz, 60 Hz
Gross Weight	0 lbs
Horsepower	30 hp
HP	30
Hz	60
Insulation Class	B
Item Number	U506
Kilowatts	22.4 kW
Manufacturer	Marathon Electric
Manufacturer Model #	286TTDP4041
Manufacturer Part Number	286TTDP4041
Maximum Ambient Tempera.	50? C
Motor Shell Length	14.25"
Mounting	Base
Mounting Orientation	Horizontal
Mounting Type	Rigid
Net Weight	331 lbs
Number of Poles	4
Number of Speeds	1
Overall Length	24.92 ", 24.92"
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	1700 - 1800, 1,770 RPM,.
Service Factor	1.15
Shaft Diameter	1.88 ", 1-7/8"
Shaft Length	4.82"
Ship Weight	331 lbs.
Voltage	230/460
Voltage (AC)	230 VAC, 460 VAC
Volts	230, 460

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	electricmotorwholesale.com	U506	1601.0	1	In Stock		MARATHON		1601.0 @ 1
	MRO Supply	2271262	2094.92	1	In Stock		Marathon Electric		2094.92 @ 1
	Galco	U506-MARA	2698.0	1	In Stock		Marathon Electric	331.0	2698.0 @ 1
	Zoro	G2496968	2763.98	1	In Stock		Marathon		2763.98 @ 1
	emotorpro.com	U506	2893.6	1	In Stock		Marathon	331.0	2893.6 @ 1
	cbtcompany.com	U506	3204.94	1	In Stock		Marathon Electric Motors		3204.94 @ 1
