Marathon Industries U530

B0876CYJMJ

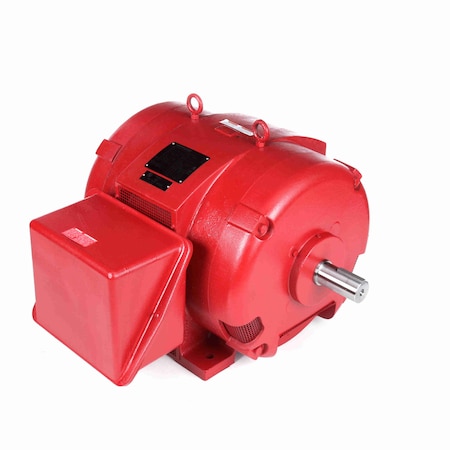

Marathon Motors Fire Pump Motor, U530, 125HP, 230/460V, 3600RPM, 3PH, 404TS FR, DP

Marathon Motors Fire Pump Motor, U530, 125HP, 230/460V, 3600RPM, 3PH, 404TS FR, DPzoom

Attributes

Key Value
Amps284/142
ApprovalsCE, CSA
Bearing TypeBall
BearingsBall
CompositionCast Iron
Country of Origin (subj.United States
Duty CycleContinuous
Efficiency0.936
Efficiency %93.6 %
EnclosureODP, Drip Proof
Enclosure MaterialIron
Enclosure TypeODP (Open Dripproof)
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motors
Frame404TS
frame material:Cast Iron
frame size:404TS
Frequency50 Hz, 60 Hz
frequency rating:60 Hz
full load efficiency:93.60 %
Gross Weight0 lbs
Horsepower125 hp
HP125
Hz60
Insulation ClassB
Item NumberU530
Kilowatts93 kW
ManufacturerMarathon Electric
Manufacturer Model #404TSTDS4017
Manufacturer Part Number404TSTDS4017
Maximum Ambient Tempera.50? C
motor category:Fire Pump Motor
motor horsepower:125 hp
motor phase:3 ph
Motor Shell Length15.5"
motor supply voltage:230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid
mounting type:Rigid Base
Net Weight914 lbs
Number of Poles2
Number of Speeds1
Overall Length29.5 ", 29.5"
Phase3
Product TypeThree Phase
RotationReversible
RPM3560, 3600, 3,560 RPM
Service Factor1.15
service factor:1.15
Shaft Diameter2-1/8", 2.13 "
Shaft Length4.49"
Ship Weight933 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460
weight:914 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comU5305526.01In StockMARATHON5526.0 @ 1
thumbzoomemotorpro.comU5307195.391In StockMarathon933.07195.39 @ 1
thumbzoomMRO Supply22712878176.621In StockMarathon Electric8176.62 @ 1
thumbzoommotionindustries.com047393598969.671In StockMarathon Electric8969.67 @ 1
thumbzoomGalcoU530-MARA10530.51In StockMarathon Electric914.010530.5 @ 1
thumbzoomcbtcompany.comU53012509.011In StockMarathon Electric Motors12509.01 @ 1
thumbzoomZoroG248935312628.891In StockMarathon12628.89 @ 1
