Marathon Electric GT1051

B006KM7IW0

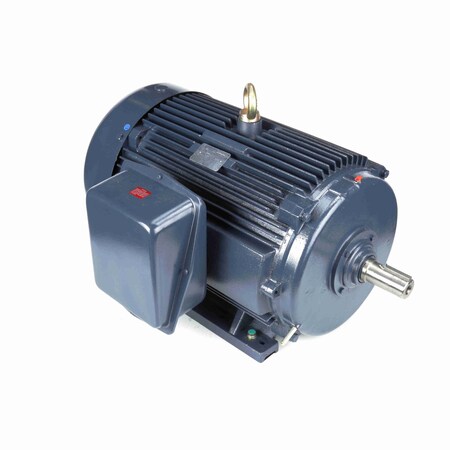

Marathon GT1051 445TS Frame 445TSTFC6001 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 150 hp, 3600 RPM, 1 Speed, 460 VAC

Marathon GT1051 445TS Frame 445TSTFC6001 TEFC General Purpose Motor, 3 Phase, Rigid Base, Ball Bearing, 150 hp, 3600 RPM, 1 Speed, 460 VACzoom

Attributes

Key Value
ApprovalsCE, CSA, UR
Bearing TypeBall
CC NumberCC003A
CompositionCast Iron
Country of Origin (subj.China
Duty CycleContinuous
Efficiency %95 %
EnclosureTotally Enclosed Fan Co.
Family SeriesMarathon Electric Motors
Frame445TS
Frequency60 Hz
Full Load Amps164.0
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Horsepower150 hp
HP150
Hz60/50
IncludesConduit Box
Ins. ClassF
Inverter RatedYes
ItemGeneral Purpose Motor
Item NumberGT1051
Kilowatts112 kW
Length Less Shaft43 3/16 in
ManufacturerMarathon Electric
Manufacturer Part Number445TSTFC6001
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeRigid
Nameplate RPM3,580
NEMA DesignB
NEMA Frame445TS
Net Weight2089 lbs
No. of Speeds1
Nominal Efficiency95 %
Number of Poles2
Overall Length47 15/16 in, 47.05 "
Phase3, Three
RPM3,580 RPM
Service Factor1.15
Shaft Dia.2 3/8 in
Shaft Diameter2.38 "
Shaft Length4 3/4 in
StandardsUL Recognized (E49747),.
Usable @ 200VNo
Usable @ 208VNo
Voltage460V AC
Voltage (AC)460 VAC
Weight1,829 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG70397568753.21In Stock10Marathon8753.2 @ 1
thumbzoomGalcoGT1051-MARA12349.01In StockMarathon Electric2089.012349.0 @ 1
grainger.caAOSGT105117826.61552081In StockMARATHON MOTORS2089.017826.6155208 @ 1
